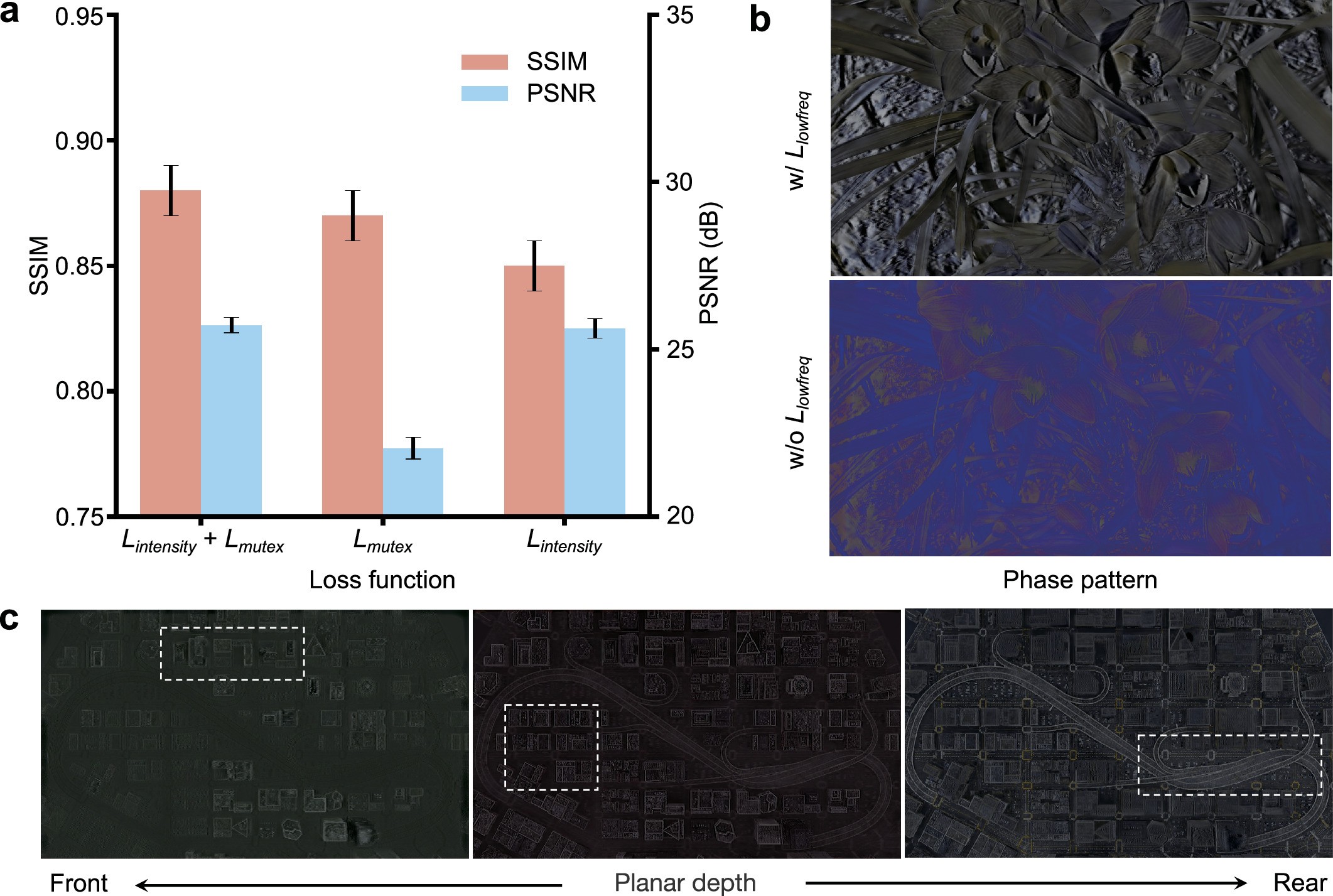

Extended Data Fig. 3: Physical interpretability and visualization of EyeReal.
From: Glasses-free 3D display with ultrawide viewing range using deep learning
a, b, Ablation study of EyeReal’s physics-based loss functions. a shows the contribution of each loss component. Error bars mean the standard deviation. b visualizes the phase pattern with (w/) and without (w/o) the application of Llowfreq. c, Visualization of computed layered phase patterns. The results reveal clear layer separation, with each layer concentrating depth information from its surrounding depth neighborhood.
