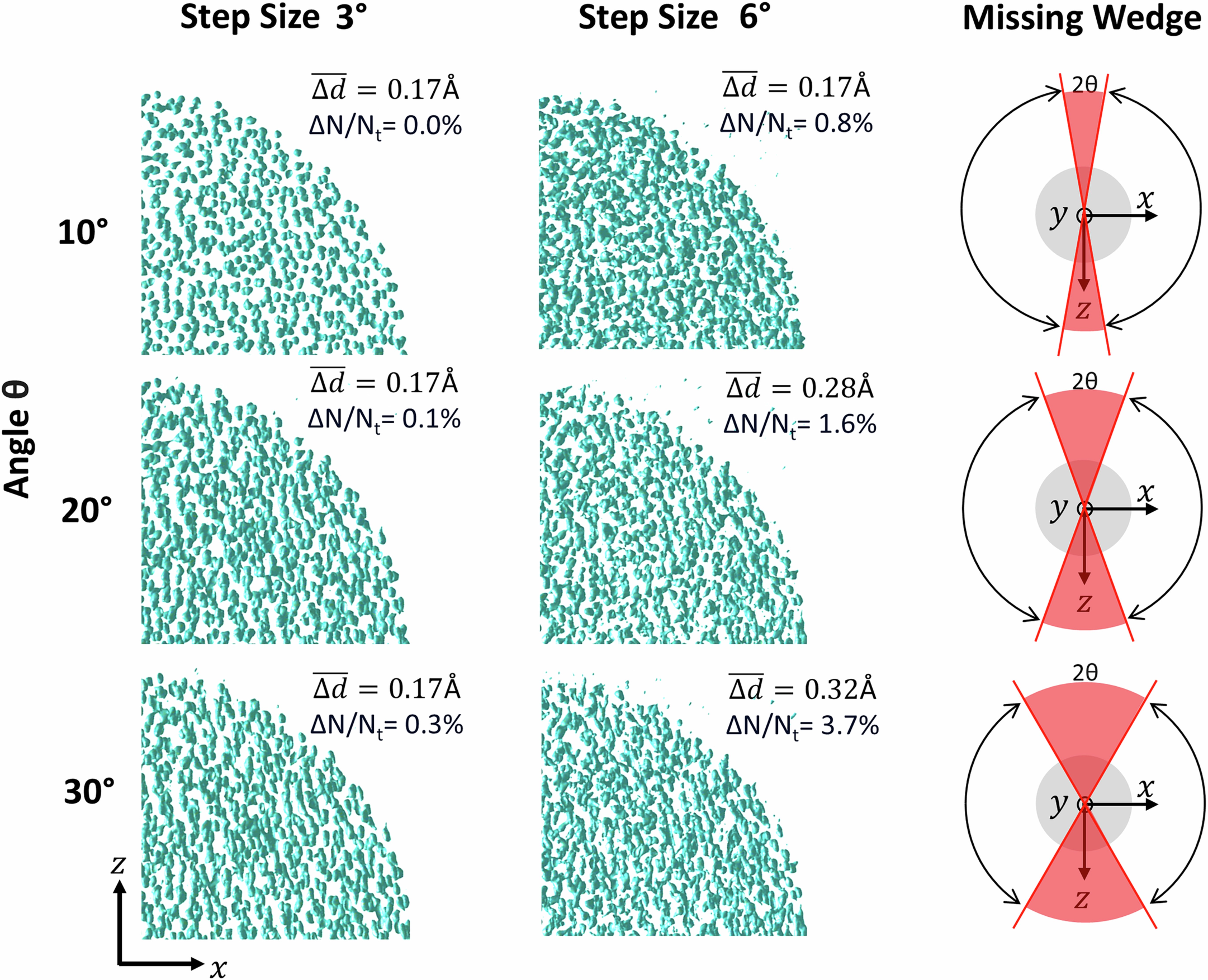

Extended Data Fig. 4: Impact of the missing wedge on AET.
From: Limit of atomic-resolution-tomography reconstruction of amorphous nanoparticles
The panel shows the reconstructed tomograms for the missing wedge of 10°, 20°, and 30° and the rotation step size of 3° and 6°, respectively. The tomograms are displayed as the center slice of 1 nm thickness, looking down the rotation axis. All simulations were performed at the electron fluence of 1.6 × 105 e/Å2. The red sections in the illustrated diagrams on the right mark the missing wedges. The elongation of atoms is seen along the middle section of the missing wedge (the z direction).
