Abstract

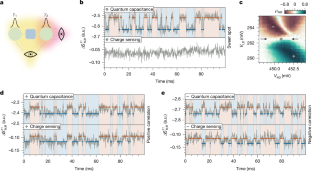

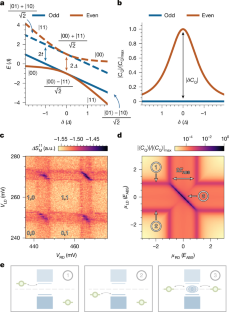

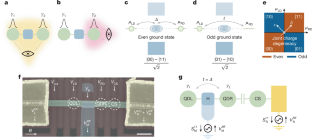

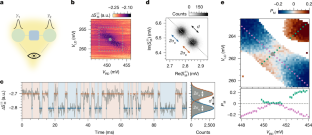

Protecting qubits from noise is essential for building reliable quantum computers. Topological qubits offer a route to this goal by encoding quantum information non-locally, using pairs of Majorana zero modes. These modes form a shared fermionic state whose occupation—either even or odd—defines the fermionic parity that encodes the qubit1. Notably, this parity can only be accessed by a measurement that couples two Majoranas to each other. A promising platform for realizing such qubits is the Kitaev chain1, implemented in quantum dots coupled using superconductors2. Even the minimal two-site chain hosts a pair of Majorana modes, often called ‘poor man’s Majoranas’, which are spatially separated but offer limited protection compared with longer chains3,4,5. Here we introduce a measurement technique that reads out their parity through quantum capacitance. Our method couples two Majoranas and resolves their parity in real time, visible as random telegraph switching with lifetimes exceeding a millisecond. Simultaneous charge sensing confirms that the two parity states are charge neutral and remain indistinguishable to a probe that does not couple the modes. These results establish the essential readout step for time-domain control of Majorana qubits, resolving a long-standing experimental challenge.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
$32.99 / 30 days
cancel any time
Subscribe to this journal
Receive 51 print issues and online access
$199.00 per year
only $3.90 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
The raw data measured on the device presented in this work are available at https://doi.org/10.4121/227fd419-fded-4a96-ab62-421a0cd57fa5 (ref. 51).
Code availability
The data processing and plotting code and the code used for the theory calculations are available at https://doi.org/10.4121/227fd419-fded-4a96-ab62-421a0cd57fa5 (ref. 51).
References
Kitaev, A. Y. Unpaired Majorana fermions in quantum wires. Phys.-Uspekhi 44, 131 (2001).
Sau, J. D. & Sarma, S. D. Realizing a robust practical Majorana chain in a quantum-dot-superconductor linear array. Nat. Commun. 3, 964 (2012).
Leijnse, M. & Flensberg, K. Parity qubits and poor man’s Majorana bound states in double quantum dots. Phys. Rev. B 86, 134528 (2012).
Dvir, T. et al. Realization of a minimal Kitaev chain in coupled quantum dots. Nature 614, 445–450 (2023).
ten Haaf, S. L. et al. A two-site Kitaev chain in a two-dimensional electron gas. Nature 630, 329–334 (2024).
Kitaev, A. Y. Fault-tolerant quantum computation by anyons. Ann. Phys. 303, 2–30 (2003).
Nayak, C., Simon, S. H., Stern, A., Freedman, M. & Das Sarma, S. Non-Abelian anyons and topological quantum computation. Rev. Mod. Phys. 80, 1083–1159 (2008).
Sarma, S. D., Freedman, M. & Nayak, C. Majorana zero modes and topological quantum computation. npj Quantum Inf. 1, 15001 (2015).
Liu, C.-X., Pan, H., Setiawan, F., Wimmer, M. & Sau, J. D. Fusion protocol for Majorana modes in coupled quantum dots. Phys. Rev. B 108, 085437 (2023).
Boross, P. & Pályi, A. Braiding-based quantum control of a Majorana qubit built from quantum dots. Phys. Rev. B 109, 125410 (2024).
Tsintzis, A., Souto, R. S., Flensberg, K., Danon, J. & Leijnse, M. Majorana qubits and non-Abelian physics in quantum dot–based minimal Kitaev chains. PRX Quantum 5, 010323 (2024).
Seoane Souto, R. & Aguado, R. in New Trends and Platforms for Quantum Technologies 133–223 (Springer, 2024).
Bonderson, P., Freedman, M. & Nayak, C. Measurement-only topological quantum computation. Phys. Rev. Lett. 101, 010501 (2008).
Vijay, S. & Fu, L. Teleportation-based quantum information processing with Majorana zero modes. Phys. Rev. B 94, 235446 (2016).
Plugge, S., Rasmussen, A., Egger, R. & Flensberg, K. Majorana box qubits. New J. Phys. 19, 012001 (2017).
Sau, J. D. & Das Sarma, S. Capacitance-based fermion parity readout and predicted Rabi oscillations in a Majorana nanowire. Phys. Rev. B 111, 224509 (2025).
Ménard, G. C. et al. Suppressing quasiparticle poisoning with a voltage-controlled filter. Phys. Rev. B 100, 165307 (2019).
Sabonis, D. et al. Dispersive sensing in hybrid InAs/Al nanowires. Appl. Phys. Lett. 115, 102601 (2019).
De Jong, D. et al. Controllable single Cooper pair splitting in hybrid quantum dot systems. Phys. Rev. Lett. 131, 157001 (2023).
Hays, M. et al. Direct microwave measurement of Andreev-bound-state dynamics in a semiconductor-nanowire Josephson junction. Phys. Rev. Lett. 121, 047001 (2018).
Bargerbos, A. et al. Singlet-doublet transitions of a quantum dot Josephson junction detected in a transmon circuit. PRX Quantum 3, 030311 (2022).
Hinderling, M. et al. Flip-chip-based fast inductive parity readout of a planar superconducting island. PRX Quantum 5, 030337 (2024).
Aghaee, M. et al. Interferometric single-shot parity measurement in InAs–Al hybrid devices. Nature 638, 651–655 (2025).
Aghaee, M. et al. Distinct lifetimes for X and Z loop measurements in a Majorana tetron device. Preprint at https://arxiv.org/abs/2507.08795 (2025).
Rainis, D. & Loss, D. Majorana qubit decoherence by quasiparticle poisoning. Phys. Rev. B 85, 174533 (2012).
Aumentado, J., Keller, M. W., Martinis, J. M. & Devoret, M. H. Nonequilibrium quasiparticles and 2e periodicity in single-Cooper-pair transistors. Phys. Rev. Lett. 92, 066802 (2004).
Catelani, G., Schoelkopf, R. J., Devoret, M. H. & Glazman, L. I. Relaxation and frequency shifts induced by quasiparticles in superconducting qubits. Phys. Rev. B 84, 064517 (2011).
Karzig, T., Cole, W. S. & Pikulin, D. I. Quasiparticle poisoning of Majorana qubits. Phys. Rev. Lett. 126, 057702 (2021).
Contamin, L. C., Delbecq, M. R., Douçot, B., Cottet, A. & Kontos, T. Hybrid light-matter networks of Majorana zero modes. npj Quantum Inf. 7, 171 (2021).
Colless, J. et al. Dispersive readout of a few-electron double quantum dot with fast rf gate sensors. Phys. Rev. Lett. 110, 046805 (2013).
De Jong, D. et al. Rapid detection of coherent tunneling in an InAs nanowire quantum dot through dispersive gate sensing. Phys. Rev. Appl. 11, 044061 (2019).
Vigneau, F. et al. Probing quantum devices with radio-frequency reflectometry. Appl. Phys. Rev. 10, 021305 (2023).
Badawy, G. et al. High mobility stemless InSb nanowires. Nano Lett. 19, 3575–3582 (2019).
Persson, F., Wilson, C., Sandberg, M., Johansson, G. & Delsing, P. Excess dissipation in a single-electron box: the Sisyphus resistance. Nano Lett. 10, 953–957 (2010).
Bruhat, L. et al. Cavity photons as a probe for charge relaxation resistance and photon emission in a quantum dot coupled to normal and superconducting continua. Phys. Rev. X 6, 021014 (2016).
van Driel, D. et al. Charge sensing the parity of an Andreev molecule. PRX Quantum 5, 020301 (2024).
Petta, J. R., Johnson, A. C., Marcus, C. M., Hanson, M. P. & Gossard, A. C. Manipulation of a single charge in a double quantum dot. Phys. Rev. Lett. 93, 186802 (2004).
Nguyen, H. Q. et al. Electrostatic control of quasiparticle poisoning in a hybrid semiconductor-superconductor island. Phys. Rev. B 108, L041302 (2023).
Bordin, A. et al. Probing Majorana localization of a phase-controlled three-site Kitaev chain with an additional quantum dot. Preprint at https://arxiv.org/abs/2504.13702 (2025).
Luethi, M., Legg, H. F., Loss, D. & Klinovaja, J. From perfect to imperfect poor man’s Majoranas in minimal Kitaev chains. Phys. Rev. B 110, 245412 (2024).
Pan, H., Das Sarma, S. & Liu, C.-X. Rabi and Ramsey oscillations of a Majorana qubit in a quantum dot-superconductor array. Phys. Rev. B 111, 075416 (2025).
Wesdorp, J. et al. Dynamical polarization of the fermion parity in a nanowire Josephson junction. Phys. Rev. Lett. 131, 117001 (2023).
Heedt, S. et al. Shadow-wall lithography of ballistic superconductor–semiconductor quantum devices. Nat. Commun. 12, 4914 (2021).
Mazur, G. P. et al. Spin-mixing enhanced proximity effect in aluminum-based superconductor–semiconductor hybrids. Adv. Mater. 34, 2202034 (2022).
Hornibrook, J. M. et al. Frequency multiplexing for readout of spin qubits. Appl. Phys. Lett. 104, 103108 (2014).
Zatelli, F. et al. Robust poor man’s Majorana zero modes using Yu-Shiba-Rusinov states. Nat. Commun. 15, 7933 (2024).
Naaman, O. & Aumentado, J. Poisson transition rates from time-domain measurements with a finite bandwidth. Phys. Rev. Lett. 96, 100201 (2006).
Liu, C.-X., Wang, G., Dvir, T. & Wimmer, M. Tunable superconducting coupling of quantum dots via Andreev bound states in semiconductor-superconductor nanowires. Phys. Rev. Lett. 129, 267701 (2022).
Secchi, A. & Troiani, F. Theory of multidimensional quantum capacitance and its application to spin and charge discrimination in quantum dot arrays. Phys. Rev. B 107, 155411 (2023).
Peri, L., Benito, M., Ford, C. J. & Gonzalez-Zalba, M. F. Unified linear response theory of quantum electronic circuits. npj Quantum Inf. 10, 114 (2024).
Zatelli, F. & van Loo, N. Data and code underlying the publication “Single-shot parity readout of a minimal Kitaev chain”. Version 3. 4TU.ResearchData https://doi.org/10.4121/227fd419-fded-4a96-ab62-421a0cd57fa5.v3 (2025).
Acknowledgements
This work has been supported by the Dutch Organization for Scientific Research (NWO), Microsoft Corporation Station Q, the Spanish Ministry of Science (grant no. PID2021-125343NB-I00) and the Horizon Europe framework programme of the European Commission through the European Innovation Council Pathfinder grant no. 101115315 (QuKiT). We thank O. W. B. Benningshof and J. D. Mensingh for technical assistance with the cryogenic electronics, F. K. Malinowski for contributing to the design of the experiment, C. X. Liu and S. L. D. ten Haaf for their input on the manuscript, T. Dvir, A. Lombardi, V. P. M. Sietses, F. J. Bennebroek Evertsz, M. Wimmer, J. D. Torres Luna, S. Miles, S. Goswami, S. Roelofs, D. Joshi and A. R. Akhmerov for discussions, J. M. Hornibrook and D. J. Reilly for providing the frequency multiplexing chips and S. Gazibegovic for contribution to nanowire growth.
Author information
Authors and Affiliations
Contributions
The sample was fabricated by N.v.L. and B.R. Measurements were performed by N.v.L., F.Z. and T.V.C. The experiment was designed by N.v.L., F.Z. and G.W. The data were analysed by N.v.L. and F.Z. The experimental set-up was designed and implemented by N.v.L., F.Z., B.R., G.W. and D.v.D. The manuscript was prepared by N.v.L. and F.Z., with input from all authors. G.W., A.B., D.v.D., Y.Z., W.D.H. and G.P.M. contributed to understanding and interpretation of the data through regular discussions. The project was supervised by L.P.K. Modelling and simulations of the system were carried out by G.O.S. and R.A. The InSb nanowire growth was performed by G.B. and E.P.A.M.B.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature thanks the anonymous reviewers for their contribution to the peer review of this work. Peer reviewer reports are available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data figures and tables
Extended Data Fig. 1 Measurement set-up.
Detailed wiring diagram for the DC and RF lines used to measure the device. To reduce the generation of non-equilibrium quasiparticles in the superconducting film, we use infrared filters for the RF lines. Furthermore, light-tight packaging encloses the device. Finally, we note that an extra resonator was connected to the left normal lead but it was not used.
Extended Data Fig. 2 Shadow lithography with masks grown on-chip.
a, False-coloured tilted scanning electron micrograph of a nanowire (InSb, shown in green) on top of the gate electrode array (Pd, shown in red) after deposition of the superconductor (Al, shown in blue). The shadow mask (HSQ, shown in purple) has a narrow slit in the centre, through which the Al strip that contacts the nanowire is evaporated, at an angle of 30° with respect to the substrate. A star is placed at approximately the same location in this and the other panels to help identify the orientation of the substrate. b, False-coloured top-view scanning electron micrograph of the same nanowire as in panel a, after the shadow mask has been mechanically removed using a nanomanipulator. c, Optical image of the PMMA mask that covers the nanowire and three leads towards the device. Image taken after patterning and development of the mask but before etching of the Al film using Transene type D. d, Optical image of the device after etching of the Al film and stripping of the protective mask. The central Al lead connects the nanowire to a W pad, which facilitates wire bonding (not shown here).
Extended Data Fig. 3 Evolution of quantum capacitance with hybrid gate voltage VH.
a–c, Quantum capacitance charge-stability diagrams measured using the middle resonator while the device is isolated from the normal leads. Each panel corresponds to a different setting of the hybrid gate voltage VH, which tunes the energy of the ABS in the superconducting segment. As VH increases, we observe a progressive weakening of the signal along the interdot detuning axis. This behaviour is attributed to an increase in the strength of CAR between the QDs, mediated by the lowering of the ABS energy. Because quantum capacitance is inversely proportional to CAR strength, a stronger CAR leads to reduced signal contrast. This trend provides a qualitative probe of the CAR amplitude and helps identify regions in which t ≈ Δ, as required for the PMM sweet spot.
Extended Data Fig. 4 Detailed analysis of time-trace performance at the PMM sweet spot.
a,b, Signal-to-noise ratio (SNRM, panel a) and parity lifetimes (panel b) as a function of readout amplitude. All data were taken with the same gate settings and 150-μs integration time as in Fig. 3d. The dotted grey line indicates the amplitude used for Figs. 3 and 4. Beyond a certain readout amplitude, the SNR decreases and the lifetimes become parity-dependent, consistent with drive-induced modulation along the common-mode axis δ that preferentially stabilizes the even ground state. This observation suggests that the system can be initialized in the even state by driving the middle resonator with a high amplitude. The time traces in panels a and b were averaged in time bins of 160 μs (instead of 150 μs) to ensure that the averaging time is an exact multiple of the sampling rate (50 kHz). c,d, SNRM (c) and readout error (d) of the time trace presented in Fig. 3 versus integration time. The readout error was estimated as \([1-{{\rm{e}}}^{-{\tau }_{{\rm{bin}}}/{\tau }_{{\rm{avg}}}}{\rm{erf}}({{\rm{SNR}}}_{{\rm{M}}}({\tau }_{{\rm{bin}}})/\sqrt{2})]/2\) (ref. 23), in which τbin is the integration time and τavg = 1.85 ± 0.03 ms. The dotted grey line indicates the integration time τbin = 150 μs used for all of the reported measurements unless otherwise specified. e, Histograms of dwell times in the even and odd parity states, normalized by total counts. The dotted lines show fits with the corresponding Poissonian probability densities \({{\rm{e}}}^{-t/{\tau }_{{\rm{o,e}}}}/{\tau }_{{\rm{o,e}}}\), confirming that the dwell times follow an exponential distribution. τo,e have been estimated as the mean of the dwell times in the odd and even parity states. Their uncertainty has been estimated as the standard deviation of the mean. f, Average switching time, τavg, estimated for varying integration time. As the integration time increases, the estimation of τavg is systematically biased towards higher values. See Methods section ‘Time traces measurement and analysis’ for a more detailed discussion. g, Power spectral density (PSD) of the time trace using an integration time of 10 μs. By fitting it with a Lorentzian model, we extract an average switching time of 1.51 ± 0.07 ms. The discrepancy between this estimate and those obtained with a hidden Markov model or exponential fitting further suggests that the long integration time needed to obtain high SNR could systematically bias the estimation of τavg. See Methods section ‘Time traces measurement and analysis’ for a more detailed discussion. h,i, Analysis of the time trace of Fig. 3c using the analysis methods and code adapted from ref. 23. In panel h, the histogram is fit to a weighted sum of Gaussian distributions. The extracted SNR = d/(σe + σo) = 1.93 is comparable with the hidden Markov model analysis. In panel i, the dwell time distributions are extracted using a Gaussian mixture model and a thresholding algorithm. The parity lifetimes are then estimated by fitting the distributions with an exponential model. The estimates are comparable with those obtained with the hidden Markov model analysis.
