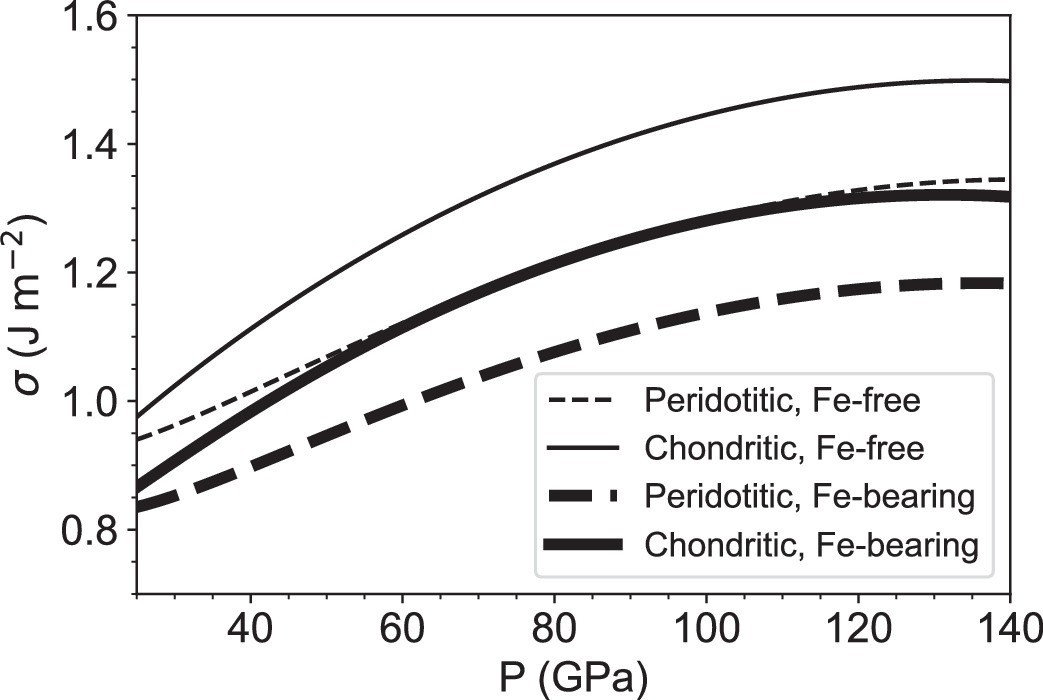

Extended Data Fig. 7: Effects of iron on interfacial energy.

Interfacial energies of Fe-bearing bridgmanite liquid (thick lines) and those of Fe-free counterparts (thin lines) along the peridotitic (dashed lines)²² and chondritic (solid lines)²¹ liquidi, respectively.

Source Data
