Maximizing perovskite electroluminescence with ordered 3D/2D heterojunction

Nature volume 651, pages 76–82 (2026)Cite this article

Subjects

Abstract

Metal halide perovskite light-emitting diodes (PeLEDs) have demonstrated excellent external quantum efficiency (EQE), easy colour tunability and low-cost processability, making them promising next-generation display techniques1,2,3. However, PeLEDs still underperform compared with organic light-emitting diodes (LEDs) with an EQE of about 40% because of insufficient charge confinement and defect-caused non-radiative recombination on the film surface. Here we report a spontaneously formed 3D/2D vertically oriented perovskite heterojunction by means of a simple one-step spin-coating method, which could effectively confine the charge carriers and shift the radiation zone away from the defect-rich surface region. Notably, the 2D perovskite on top exhibits a wrinkled surface morphology, which offers up to 45.4% light extraction efficiency. The resulting PeLEDs achieved an EQE of 42.9% for the green emission (certified 42.3%). Our work sheds light on the strategies for fabricating high-efficiency PeLEDs in the future.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

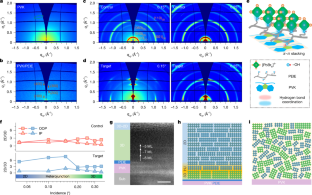

Fig. 1: Characterization of perovskite heterojunctions.

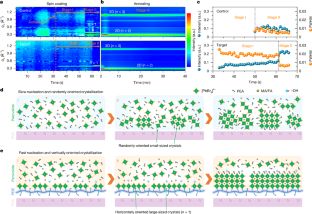

Fig. 2: Mechanism of forming a 3D/2D luminescent heterojunction.

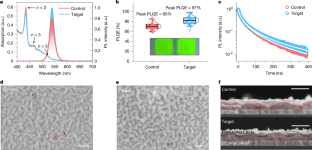

Fig. 3: Optical and morphological properties of perovskite films.

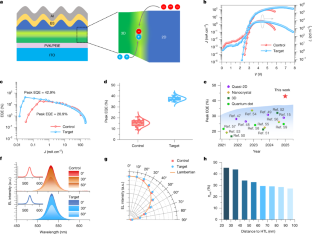

Fig. 4: Device performance of PeLEDs.
