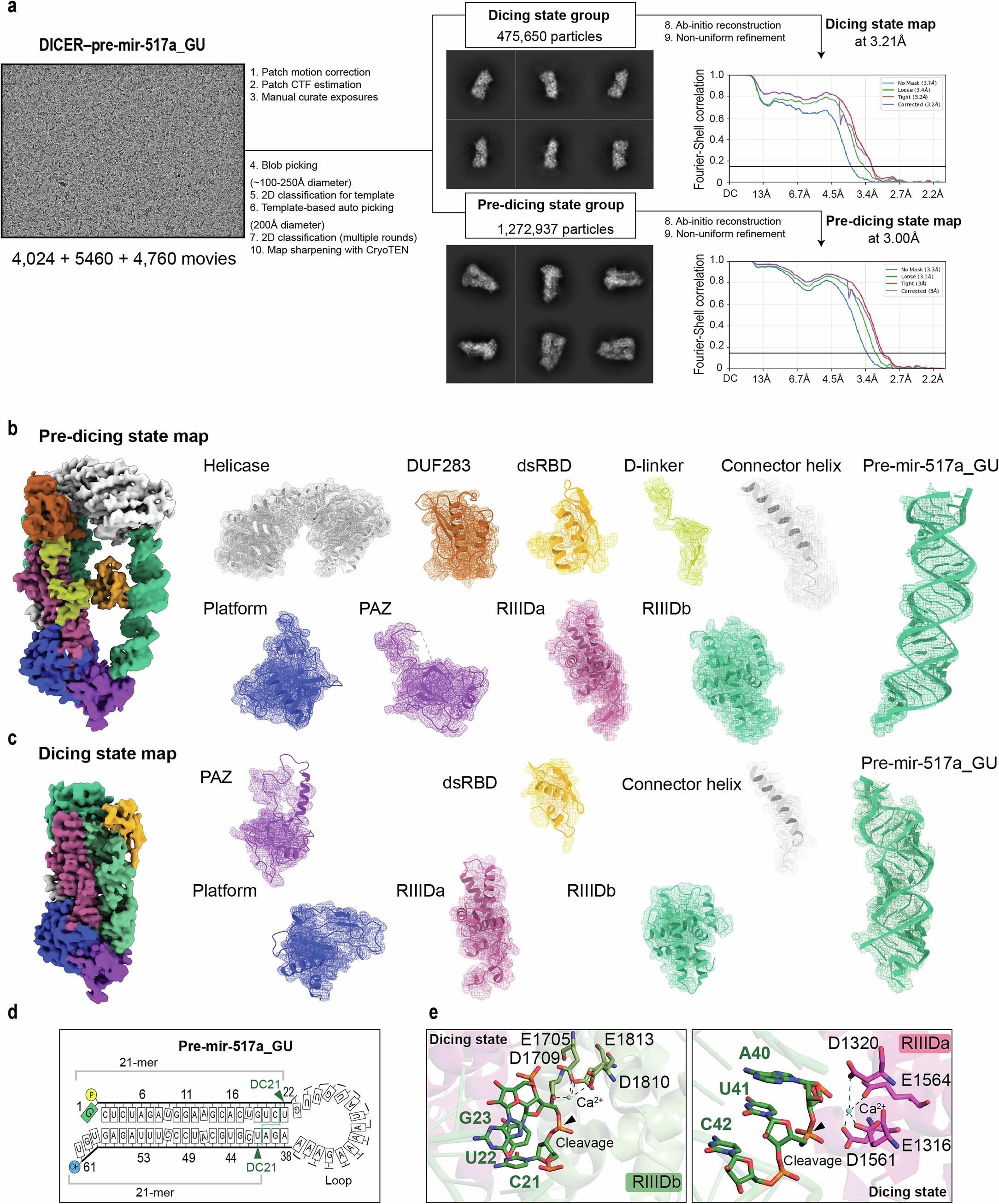

Extended Data Fig. 8: Cryo-EM analysis of DICER–pre-mir-517a_GU.
From: DICER cleavage fidelity is governed by 5′-end binding pockets
