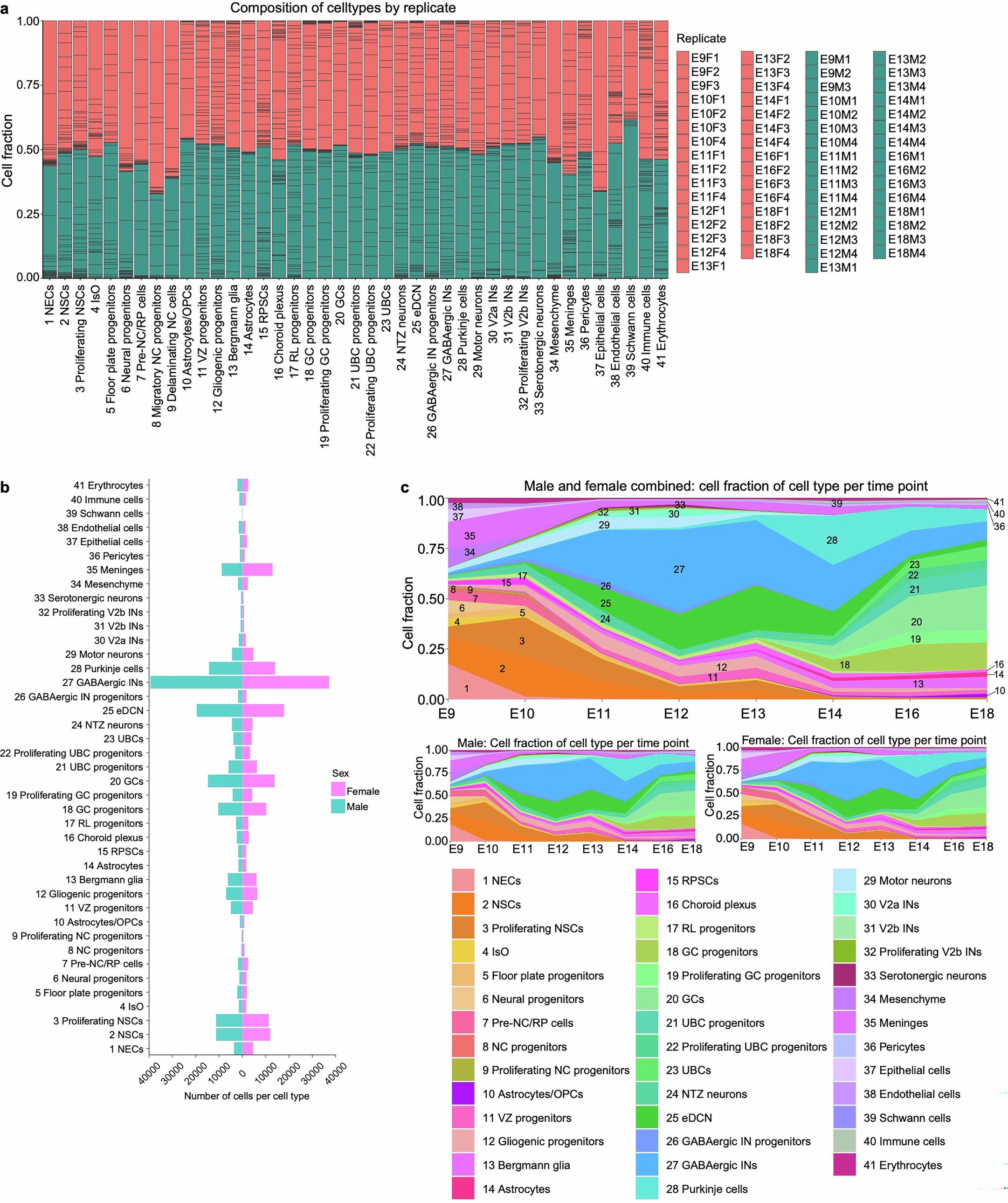

Extended Data Fig. 5: Number and proportion of cell types by sex in the sex-balanced developmental transcriptional atlas of the embryonic mouse hindbrain.

a, Stacked bar plot showing cell-type composition by replicate. Each bar represents an individual biological replicate, with the cell-type fraction shown as stacked segments. Female samples are displayed in red and male samples in blue. Dark separator lines within each bar distinguish individual replicates. b, Bar plot showing the total number of male (cyan) and female (pink) cells for each annotated cell type. c, Fraction of each cell type across developmental time in male and female combined dataset (upper panel), in males only (bottom left panel) and females only (bottom right panel).
