Abstract
Iron-based superconductors (FeSCs) are a fascinating family of materials in which several electronic bands and strong antiferromagnetic (AFM) correlations are key ingredients for competing ground states1,2,3,4,5,6, including antiferromagnetism, electronic nematicity and unconventional superconductivity. FeTe, unlike its superconducting isostructural counterpart FeSe, has long been considered an AFM metal sans superconductivity7,8,9. Here we use molecular-beam epitaxy (MBE) to grow FeTe films and perform post-growth annealing under a Te flux. By performing spin-polarized scanning tunnelling microscopy and spectroscopy (STM/S), we demonstrate that the AFM order in as-grown FeTe films is induced by interstitial Fe atoms that disrupt the ideal 1:1 stoichiometry. Notably, the removal of these interstitial Fe atoms through Te annealing yields stoichiometric FeTe films that show no AFM order and instead exhibit robust superconductivity with a critical temperature of about 13.5 K. This superconducting state is further confirmed by the observation of Cooper-pair tunnelling, zero electrical resistance and the Meissner effect. Therefore, our results demonstrate that stoichiometric FeTe is inherently a superconductor, overturning a long-held view that it is an AFM metal. This work clarifies the origin of superconductivity in FeTe-based heterostructures10,11,12,13,14,15 and demonstrates the importance of stoichiometry control in understanding the competition between antiferromagnetism and superconductivity in FeSCs.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
$32.99 / 30 days
cancel any time
Subscribe to this journal
Receive 51 print issues and online access
$199.00 per year
only $3.90 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
The data that support the findings of this article are openly available at Zenodo61 (https://doi.org/10.5281/zenodo.17944465).
References
Stewart, G. R. Superconductivity in iron compounds. Rev. Mod. Phys. 83, 1589–1652 (2011).
Dai, P., Hu, J. & Dagotto, E. Magnetism and its microscopic origin in iron-based high-temperature superconductors. Nat. Phys. 8, 709–718 (2012).
Dai, P. Antiferromagnetic order and spin dynamics in iron-based superconductors. Rev. Mod. Phys. 87, 855–896 (2015).
Glasbrenner, J. K. et al. Effect of magnetic frustration on nematicity and superconductivity in iron chalcogenides. Nat. Phys. 11, 953–958 (2015).
Kreisel, A., Hirschfeld, P. J. & Andersen, B. M. On the remarkable superconductivity of FeSe and its close cousins. Symmetry 12, 1402 (2020).
Fernandes, R. M. et al. Iron pnictides and chalcogenides: a new paradigm for superconductivity. Nature 601, 35–44 (2022).
Ma, F., Ji, W., Hu, J., Lu, Z. Y. & Xiang, T. First-principles calculations of the electronic structure of tetragonal α-FeTe and α-FeSe crystals: evidence for a bicollinear antiferromagnetic order. Phys. Rev. Lett. 102, 177003 (2009).
Rodriguez, E. E. et al. Magnetic-crystallographic phase diagram of the superconducting parent compound Fe1+xTe. Phys. Rev. B 84, 064403 (2011).
Ducatman, S., Fernandes, R. M. & Perkins, N. B. Theory of the evolution of magnetic order in Fe1+yTe compounds with increasing interstitial iron. Phys. Rev. B 90, 165123 (2014).
He, Q. L. et al. Two-dimensional superconductivity at the interface of a Bi2Te3/FeTe heterostructure. Nat. Commun. 5, 4247 (2014).
Liang, J. et al. Studies on the origin of the interfacial superconductivity of Sb2Te3/Fe1+yTe heterostructures. Proc. Natl Acad. Sci. 117, 221–227 (2020).
Yi, H. et al. Dirac-fermion-assisted interfacial superconductivity in epitaxial topological-insulator/iron-chalcogenide heterostructures. Nat. Commun. 14, 7119 (2023).
Yi, H. et al. Interface-induced superconductivity in magnetic topological insulators. Science 383, 634–639 (2024).
Yuan, W. et al. Coexistence of superconductivity and antiferromagnetism in topological magnet MnBi2Te4 films. Nano Lett. 24, 7962–7971 (2024).
Yan, Z. J. et al. Meissner effect and nonreciprocal charge transport in non-topological 1T-CrTe2/FeTe heterostructures. Adv. Mater. 38, e20598 (2026).
Kamihara, Y., Watanabe, T., Hirano, M. & Hosono, H. Iron-based layered superconductor La[O1-xFx]FeAs (x = 0.05–0.12) with Tc = 26 K. J. Am. Chem. Soc. 130, 3296–3297 (2008).
Zhang, P. et al. Observation of topological superconductivity on the surface of an iron-based superconductor. Science 360, 182–186 (2018).
Wang, D. et al. Evidence for Majorana bound states in an iron-based superconductor. Science 362, 333–335 (2018).
Wang, Z. et al. Evidence for dispersing 1D Majorana channels in an iron-based superconductor. Science 367, 104–108 (2020).
Zhu, S. et al. Nearly quantized conductance plateau of vortex zero mode in an iron-based superconductor. Science 367, 189–192 (2020).
Hsu, F. C. et al. Superconductivity in the PbO-type structure α-FeSe. Proc. Natl Acad. Sci. 105, 14262–14264 (2008).
Wang, Q. Y. et al. Interface-induced high-temperature superconductivity in single unit-cell FeSe films on SrTiO3. Chin. Phys. Lett. 29, 037402 (2012).
He, S. et al. Phase diagram and electronic indication of high-temperature superconductivity at 65 K in single-layer FeSe films. Nat. Mater. 12, 605–610 (2013).
Tan, S. et al. Interface-induced superconductivity and strain-dependent spin density waves in FeSe/SrTiO3 thin films. Nat. Mater. 12, 634–640 (2013).
Han, Y. et al. Superconductivity in iron telluride thin films under tensile stress. Phys. Rev. Lett. 104, 017003 (2010).
Fang, M. H. et al. Superconductivity close to magnetic instability in Fe(Se1−xTex)0.82. Phys. Rev. B 78, 224503 (2008).
Mizuguchi, Y., Tomioka, F., Tsuda, S., Yamaguchi, T. & Takano, Y. Superconductivity in S-substituted FeTe. Appl. Phys. Lett. 94, 012503 (2009).
Grønvold, F., Haraldsen, H. & Vihovde, J. Phase and structural relations in the system iron tellurium. Acta Chem. Scand. 8, 1927–1942 (1954).
Ward, J. B. & McCann, V. H. On the 57Fe Mossbauer spectra of FeTe and Fe2Te3. J. Phys. C Solid State Phys. 12, 873–879 (1979).
Stock, C., Rodriguez, E. E., Green, M. A., Zavalij, P. & Rodriguez-Rivera, J. A. Interstitial iron tuning of the spin fluctuations in the nonsuperconducting parent phase Fe1+xTe. Phys. Rev. B 84, 045124 (2011).
Zaliznyak, I. A. et al. Continuous magnetic and structural phase transitions in Fe1+yTe. Phys. Rev. B 85, 085105 (2012).
Williams, A. J., McQueen, T. M. & Cava, R. J. The stoichiometry of FeSe. Solid State Commun. 149, 1507–1509 (2009).
Lin, W. et al. Role of chalcogen vapor annealing in inducing bulk superconductivity in Fe1+yTe1−xSex. Phys. Rev. B 91, 060513(R) (2015).
Sun, Y., Shi, Z. & Tamegai, T. Review of annealing effects and superconductivity in Fe1+yTe1−xSex superconductors. Supercond. Sci. Technol. 32, 103001 (2019).
Sharma, S., Li, H., Ren, Z., Castro, W. A. & Zeljkovic, I. Nanoscale visualization of the thermally driven evolution of antiferromagnetic domains in FeTe thin films. Phys. Rev. Mater. 7, 074401 (2023).
Enayat, M. et al. Real-space imaging of the atomic-scale magnetic structure of Fe1+yTe. Science 345, 653–656 (2014).
Caroli, C., De Gennes, P. G. & Matricon, J. Bound Fermion states on a vortex line in a type II superconductor. Phys. Lett. 9, 307–309 (1964).
Chen, M. et al. Discrete energy levels of Caroli-de Gennes-Matricon states in quantum limit in FeTe0.55Se0.45. Nat. Commun. 9, 970 (2018).
Chen, C. et al. Observation of discrete conventional Caroli–de Gennes–Matricon states in the vortex core of single-layer FeSe/SrTiO3. Phys. Rev. Lett. 124, 097001 (2020).
Liu, W. et al. A new Majorana platform in an Fe-As bilayer superconductor. Nat. Commun. 11, 5688 (2020).
Kong, L. et al. Majorana zero modes in impurity-assisted vortex of LiFeAs superconductor. Nat. Commun. 12, 4146 (2021).
Li, M. et al. Ordered and tunable Majorana-zero-mode lattice in naturally strained LiFeAs. Nature 606, 890–895 (2022).
Naaman, O., Teizer, W. & Dynes, R. C. Fluctuation dominated Josephson tunneling with a scanning tunneling microscope. Phys. Rev. Lett. 87, 097004 (2001).
Cho, D., Bastiaans, K. M., Chatzopoulos, D., Gu, G. D. & Allan, M. P. A strongly inhomogeneous superfluid in an iron-based superconductor. Nature 571, 541–545 (2019).
Kirtley, J. R. Fundamental studies of superconductors using scanning magnetic imaging. Rep. Prog. Phys. 73, 126501 (2010).
Luan, L. et al. Local measurement of the penetration depth in the pnictide superconductor Ba(Fe0.95Co0.05)2As2. Phys. Rev. B 81, 100501(R) (2010).
Eschrig, H. & Koepernik, K. Tight-binding models for the iron-based superconductors. Phys. Rev. B 80, 104503 (2009).
Wu, X., Qin, S., Liang, Y., Fan, H. & Hu, J. Topological characters in Fe(Te1−xSex) thin films. Phys. Rev. B 93, 115129 (2016).
Gastiasoro, M. N., Bernardini, F. & Andersen, B. M. Unconventional disorder effects in correlated superconductors. Phys. Rev. Lett. 117, 257002 (2016).
Islam, K. R. & Chubukov, A. Unconventional superconductivity near a nematic instability in a multi-orbital system. npj Quantum Mater. 9, 28 (2024).
Singh, U. R., Aluru, R., Liu, Y., Lin, C. & Wahl, P. Preparation of magnetic tips for spin-polarized scanning tunneling microscopy on Fe1+yTe. Phys. Rev. B 91, 161111(R) (2015).
Hanke, T. et al. Reorientation of the diagonal double-stripe spin structure at Fe1+yTe bulk and thin-film surfaces. Nat. Commun. 8, 13939 (2017).
Huang, Z. et al. Hidden non-collinear spin-order induced topological surface states. Nat. Commun. 15, 2937 (2024).
Horcas, I. et al. WSXM: a software for scanning probe microscopy and a tool for nanotechnology. Rev. Sci. Instrum. 78, 013705 (2007).
Lawler, M. J. et al. Intra-unit-cell electronic nematicity of the high-Tc copper-oxide pseudogap states. Nature 466, 347–351 (2010).
Uehara, Y., Fujita, T., Iwami, M. & Ushioda, S. Superconducting niobium tip for scanning tunneling microscope light emission spectroscopy. Rev. Sci. Instrum. 72, 2097–2099 (2001).
Ambegaokar, V. & Baratoff, A. Tunneling between superconductors. Phys. Rev. Lett. 10, 486–489 (1963).
Randeria, M. T., Feldman, B. E., Drozdov, I. K. & Yazdani, A. Scanning Josephson spectroscopy on the atomic scale. Phys. Rev. B 93, 161115(R) (2016).
Liu, X., Chong, Y. X., Sharma, R. & Davis, J. C. S. Discovery of a Cooper-pair density wave state in a transition-metal dichalcogenide. Science 372, 1447–1452 (2021).
Brydon, P. M., Daghofer, M. & Timm, C. Magnetic order in orbital models of the iron pnictides. J. Phys. Condens. Matter 23, 246001 (2011).
Yan, Z.-J. Data for “Stoichiometric FeTe is a Superconductor”. Zenodo https://doi.org/10.5281/zenodo.17944465 (2025).
Acknowledgements
We thank M. H. W. Chan, Y. Ge, A. J. Grutter, L. Y. Kong, C. X. Liu, Z. Q. Mao, N. Samarth, Z. Y. Wang, X. X. Wu, X. D. Xu, B. H. Yan and J. Zhu for helpful discussions. This work is primarily supported by a DOE grant (DE-SC0023113), including the MBE growth and STM/S measurements. The atomic force microscopy and XRD measurements are supported by the ONR Award (N000142412133). The electrical transport measurements are supported by the ARO award (W911NF2210159) and a NSF grant (DMR-2241327). The STEM measurements are supported by the Penn State MRSEC for Nanoscale Science (DMR-2011839). The MFM measurements are supported by a DOE grant (DE-SC0018153). J.Y. acknowledges the support from the startup funds at the University of Florida. P.J.H. acknowledges the support from the NSF grant (DMR-2231821). C.-Z.C. acknowledges the support from the Gordon and Betty Moore Foundation’s EPiQS Initiative (GBMF9063).
Author information
Authors and Affiliations
Contributions
C.-Z.C. conceived and designed the experiment. Z.-J.Y., Z.W., B.X., S.P., H.R. and C.-Z.C. performed the MBE growth. Z.-J.Y., H.R., P.X. and C.-Z.C. conducted electrical transport measurements. Z.W., B.X., S.P., P.X., J.S., V.G. and C.-Z.C. performed all STM/S measurements. Z.-J.Y., P.X. and C.-Z.C. performed the atomic force microscopy and XRD measurements. Y.-T.C. and W.W. performed MFM measurements. N.D., K.D.H. and D.R.H. performed STEM measurements. J.Y. and P.J.H. provided theoretical support. Z.-J.Y., W.W., J.Y., P.J.H. and C.-Z.C. analysed the data and wrote the manuscript, with input from all authors.
Corresponding author
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature thanks Lingyuan Kong and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data figures and tables
Extended Data Fig. 1 Spin-polarized STM measurements on an as-grown 40-UC FeTe film under opposite magnetic fields.
a, Schematic of spin-polarized STM measurements on FeTe films. Some iron atoms from the surface of FeTe attached to the apex of the PtIr tip make it spin-polarized. Its polarization direction can be controlled by applying an external magnetic field μ0H. b,c, STM images (20 × 20 nm2) of the same region in Fig. 1a on the as-grown 40-UC FeTe film at μ0H = +4 T (b) and μ0H = −4 T (c) (Vs = −15 mV, Is = 5 nA and T = 4.2 K). The STM images in b and c are measured using magnetic Fe-functionalized tips from the surface of FeTe. Under opposite magnetic fields, the spin polarization of the STM tip is reversed, causing the double-stripe pattern to shift by a half-period (aTe). d, Magnetic contrast image, obtained by subtracting b from c, which highlights the bicollinear AFM order of the as-grown 40-UC FeTe film.
Extended Data Fig. 2 STM/S results of a single interstitial Fe atom in FeTe films.
a–i, STM images (5 × 5 nm2) of the 40-UC FeTe film with a single interstitial Fe atom measured under different Vs. a, Vs = 3.5 V and Is = 1 nA. b, Vs = 1 V and Is = 9 nA. c, Vs = 500 mV and Is = 9 nA. d, Vs = 50 mV and Is = 5 nA. e, Vs = 15 mV and Is = 1 nA. f, Vs = −15 mV and Is = 1 nA. g, Vs = −50 mV and Is = 5 nA. h, Vs = −500 mV and Is = 5 nA. i, Vs = −2 V and Is = 9 nA. j, Colour plot of dI/dV spectra along the red arrow direction in e (that is, the [100] direction) across a single interstitial Fe atom (Vs = 15 mV, Is = 2 nA and Vmod = 0.1 mV). k, Colour plot of dI/dV spectra along the green arrow direction in e (that is, the [110] direction) across a single interstitial Fe atom (Vs = 15 mV, Is = 2 nA and Vmod = 0.1 mV). Several impurity states are resolved near the interstitial Fe atom. The STM images in a–i are acquired using a spin-polarized tip at T = 4.2 K, whereas the dI/dV spectra are obtained using a PtIr tip at T = 310 mK. Scale bars, 1 nm (a–i).
Extended Data Fig. 3 Distribution of interstitial Fe atoms on the as-grown 40-UC FeTe film.

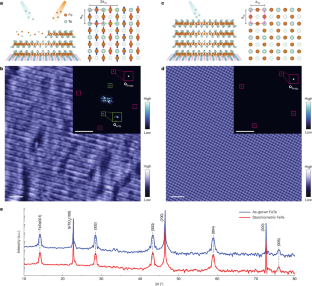

STM image (20 × 20 nm2) of the same region in Fig. 1a on the as-grown 40-UC FeTe film (Vs = 3.5 V and Is = 5 nA). The STM image is acquired using a spin-polarized tip at T = 4.2 K. Scale bar, 2 nm.
Extended Data Fig. 4 STM images of the 40-UC FeTe film after four-cycle Te-annealing treatments (that is, cycle IV).
a, STM image (20 × 20 nm2) measured using a lower Vs (Vs = −10 mV and Is = 1 nA). Inset, FT image. b, STM image (20 × 20 nm2) of the same region in a measured using a higher Vs (Vs = 3.5 V and Is = 1 nA). The red spots in b represent the interstitial Fe atoms. Inset, the corresponding overlay of the STM images in a and b. The red (blue) areas in b, inset represent the AFM (non-AFM) region shown in a. The black spots in b, inset represent the interstitial Fe atoms in b. The STM images in a and b are acquired using a spin-polarized tip at T = 4.2 K. Scale bars, 2 nm (a,b); 1 Å−1 (a, inset); 2 nm (b, inset).
Extended Data Fig. 5 Surface morphologies of 40-UC FeTe films after each Te-annealing cycle.

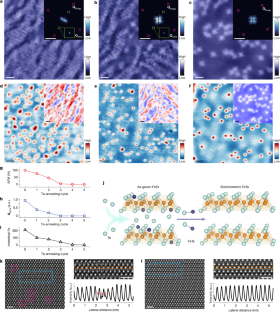

a–f, STM images (500 × 500 nm2) of 40-UC FeTe films: as-grown FeTe (a) (Vs = 1.5 V and Is = 50 pA), cycle I (b) (Vs = 3.5 V and Is = 50 pA), cycle II (c) (Vs = 1.5 V and Is = 20 pA), cycle III (d) (Vs = 1.5 V and Is = 20 pA), cycle IV (e) (Vs = 1.5 V and Is = 20 pA) and cycle V (f) (Vs = 1.5 V and Is = 20 pA). The STM images are acquired using a PtIr tip at T = 4.2 K. g–l, Atomic force microscopy images (5 × 5 μm2) of 40-UC FeTe films: as-grown FeTe (g), cycle I (h), cycle II (i), cycle III (j), cycle IV (k) and cycle V (l). The as-grown 40-UC FeTe film exhibits atomically flat terraces with square pyramidal structures. During the Te-annealing treatments, these square terraces gradually expand and their edges become rounded, suggesting the formation of new FeTe layers. Scale bars, 100 nm (a–f); 1 μm (g–l).
Extended Data Fig. 6 Abrikosov vortices of a stoichiometric 40-UC FeTe film.

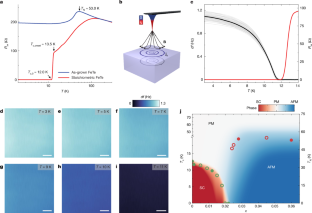

a–o, The Abrikosov vortices of a stoichiometric 40-UC FeTe film measured at different μ0H and Vbias (42 × 42 nm2, Vs = 15 mV, Is = 1 nA and Vmod = 2 mV). The image in i is identical to Fig. 3c. All STM/S measurements are performed using a PtIr tip at T = 310 mK. Scale bars, 4 nm.

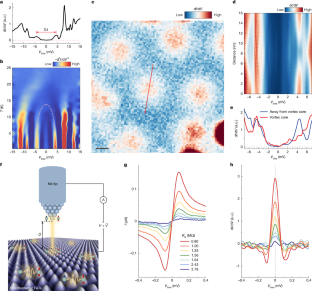

Extended Data Fig. 7 Josephson STM/S results of a stoichiometric 40-UC FeTe film.
a, Schematics of the tunnelling processes at different Vbias. The blue (red) areas represent the occupied (empty) states and the dashed lines indicate the chemical potential EF. For |eVbias| > (Δ + Δtip), electron tunnelling occurs between the tip and the sample. When eVbias is close to zero, Cooper-pair tunnelling dominates. b, Typical dI/dV spectrum (Vs = 15 mV, Is = 2 nA and excitation voltage Vmod = 0.1 mV) of a stoichiometric 40-UC FeTe film measured using a superconducting Nb tip at T = 310 mK with RN = 7.5 MΩ. c, Enlarged dI/dV spectrum in b. Two pairs of dI/dV peaks have been observed at ±Δtip and ±(Δ + Δtip), in which Δtip is the superconducting gap size of the Nb tip. See Supplementary Information Section I.3 for further discussion about non-zero spectral features between ±Δtip and ±(Δ + Δtip).
Extended Data Fig. 8 Rxx–T curves of 40-UC FeTe films after each Te-annealing cycle.
a–f, T-dependent Rxx of 40-UC FeTe films: as-grown (a), after cycle I (b), cycle II (c), cycle III (d), cycle IV (e) and cycle V (f). Insets, enlarged Rxx–T curves for 2 K ≤ T ≤ 20 K. The Rxx–T curves in a and f are reused from Fig. 4a.
Extended Data Fig. 9 dI/dV spectra of 40-UC FeTe films after each Te-annealing cycle.
a–f, Typical dI/dV spectra of 40-UC FeTe films: as-grown (a) (Vs = 20 mV, Is = 1 nA and Vmod = 0.2 mV), after cycle I (b) (Vs = 15 mV, Is = 0.3 nA and Vmod = 0.5 mV), cycle II (c) (Vs = 15 mV, Is = 1 nA and Vmod = 0.2 mV), cycle III (d) (Vs = 15 mV, Is = 1 nA and Vmod = 0.2 mV), cycle IV (e) (Vs = 15 mV, Is = 1 nA and Vmod = 0.2 mV) and cycle V (f) (Vs = 15 mV, Is = 2 nA and Vmod = 0.2 mV). All STM/S measurements are performed using a PtIr tip at T = 4.2 K. To better visualize and compare the dI/dV spectra measured under different setpoints, the dI/dV spectra in a–f are normalized by (dI/dV)norm = (dI/dV)/(Is/Vs), which removes the dependence on STM/S setpoint parameters Vs and Is.
Extended Data Fig. 10 Numerical calculations on impurity-induced bicollinear AFM order in FeTe.
a–f, Left, calculated magnetization mR over 24 × 24 Fe square lattices with N = 0 (a), N = 7 (b), N = 14 (c), N = 21 (d), N = 28 (e) and N = 35 (f). mR is defined as the difference between the spin-up and spin-down electron probabilities at position R. Right top, FT images of mR. Right bottom, distribution of impurities within the 24 × 24 Fe square lattices, denoted by the magnetic impurity term SR, which is chosen randomly (Methods). All calculations are performed with VR = 5 eV and |SR | = 0.5 eV.
Supplementary information
Supplementary Information (download PDF )
Supplementary Sections 1–3, comprising Supplementary Text Sections 1–12, Supplementary Figs. 1–22, Supplementary Table 1 and Supplementary References.
Rights and permissions
Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.
About this article
Cite this article
Yan, ZJ., Wang, Z., Xia, B. et al. Stoichiometric FeTe is a superconductor. Nature (2026). https://doi.org/10.1038/s41586-026-10321-0
Received:
Accepted:
Published:
Version of record:
DOI: https://doi.org/10.1038/s41586-026-10321-0
