Extended Data Fig. 6: Quantitative resolution analysis of microtubules using rFRC.
From: Mirror-enhanced 4Pi-SMLM with one objective enables isotropic nanoscale imaging

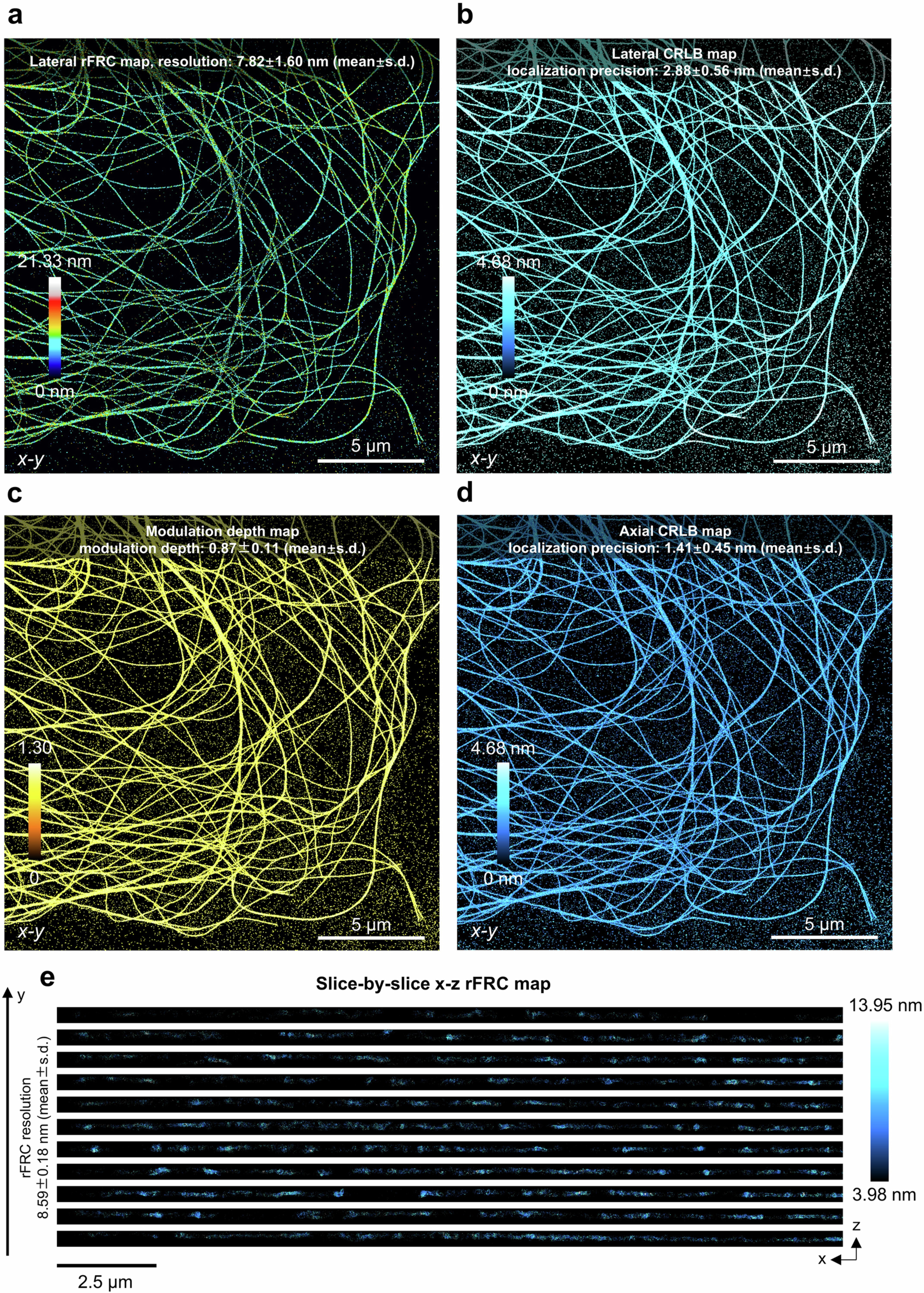

a, rFRC map of the microtubule data shown in Fig. 2a, showing the lateral resolution. b, Lateral localization precision (CRLBxy) map. c, Modulation depth map. d, Axial localization precision (CRLBz) map. e, Slice-by-slice x–z rFRC map. Scale bars: 5 μm (a-d), 2.5 μm (e).
