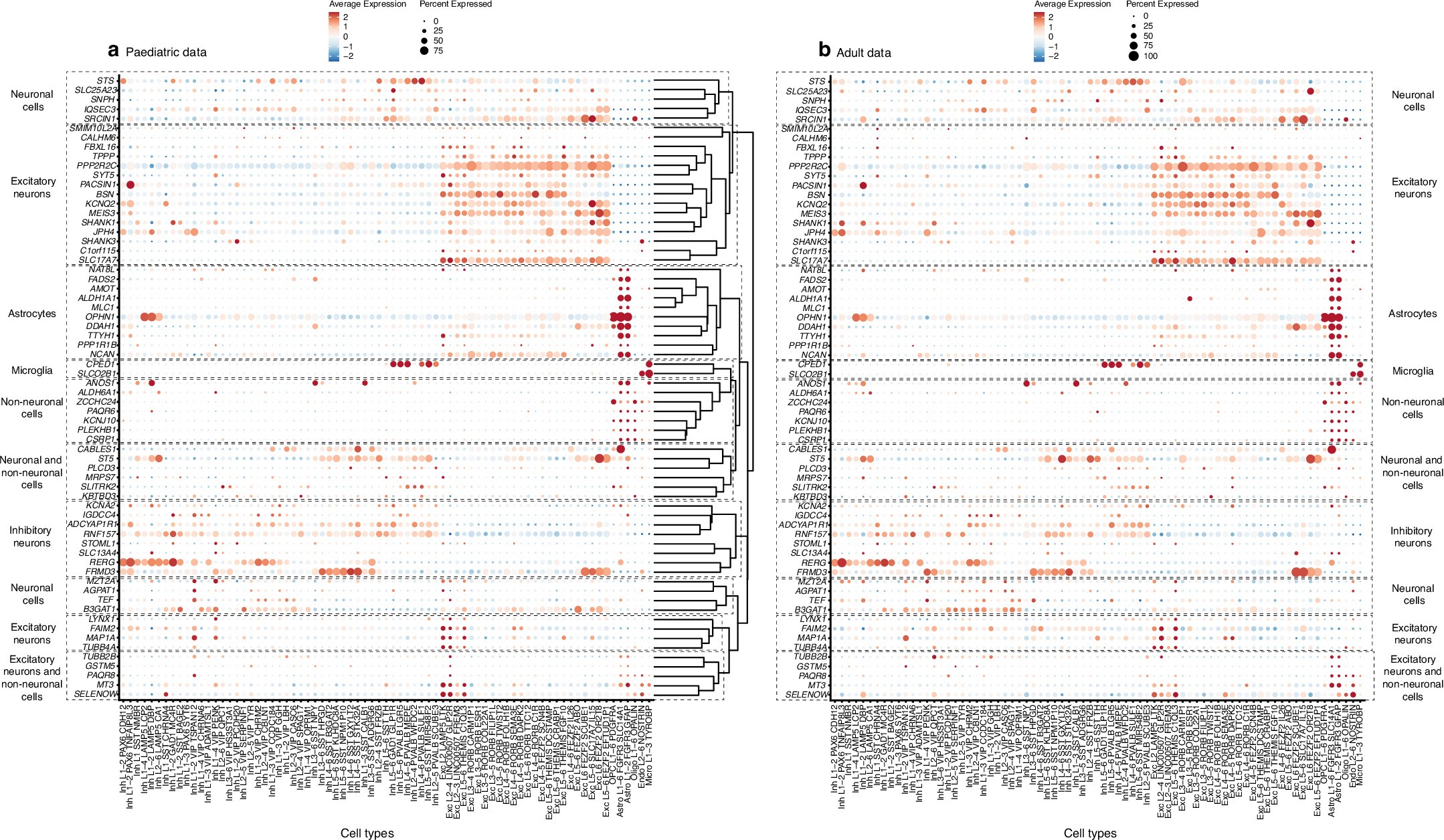

Extended Data Fig. 10: Cell type-specific expression of putative TBM biomarkers.
From: A temporal cortex cell atlas highlights gene expression dynamics during human brain maturation
a. Hierarchical clustering of TBM biomarker genes across the 75 cell types identified in the pediatric snRNA-seq dataset reveals clusters of genes that are expressed by specific groups of cell types. b. Analysis of the same genes across the adult snRNA-seq dataset, using the gene order in (a) reveals very similar patterns of cell-type-specific expression across the age-groups. Dashed boxes highlight gene clusters, with associated cell types indicated on the left and right of the right diagram.
