Extended Data Fig. 3: Analysis of eQTL and their regulated genes. | Nature Genetics

Extended Data Fig. 3: Analysis of eQTL and their regulated genes.

From: Integrated metabolomic and transcriptomic analyses identify MYB genes regulating key metabolites and agronomic traits in upland cotton Gossypium hirsutum

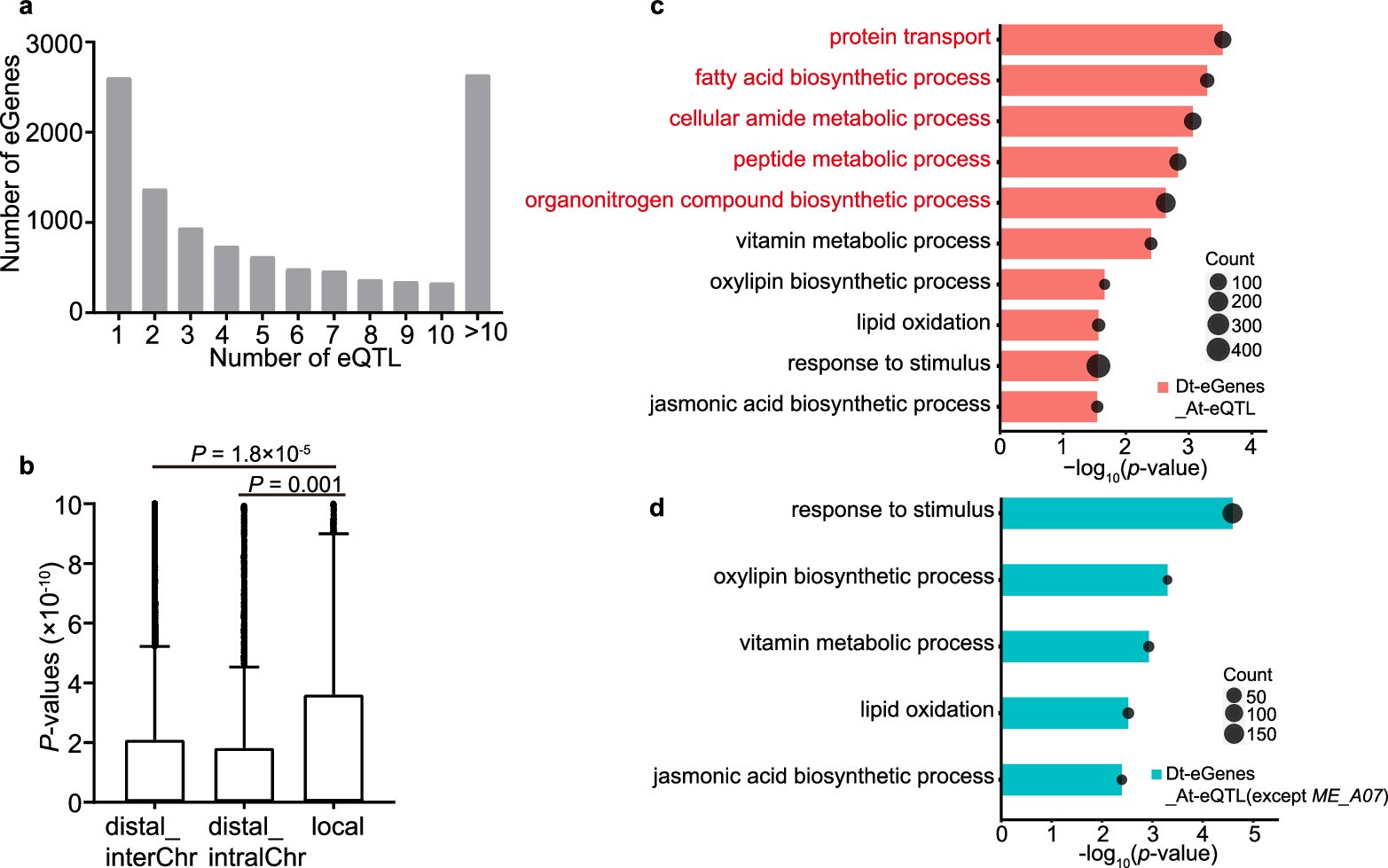

Extended Data Fig. 3: Analysis of eQTL and their regulated genes.

a, The distribution of eQTL and eGenes, which eQTL regulated. b, Comparison of association significance among local eQTL (n = 8,367), distal eQTL in the same chromosome (distal_intralChr, n = 4,921), and distal eQTL in the different chromosome (distal_interChr, n = 89,352). Box limits and center lines indicate quartiles and medians, respectively. Whiskers denote 1.5× interquartile range and points show outliers. Significances are tested by the two-tailed Student’s t-test. c-d, GO enrichment of Dt-eGenes, which eQTL regulated in subgenome A (c), and subgenome A excluding ME_A07 (d).
