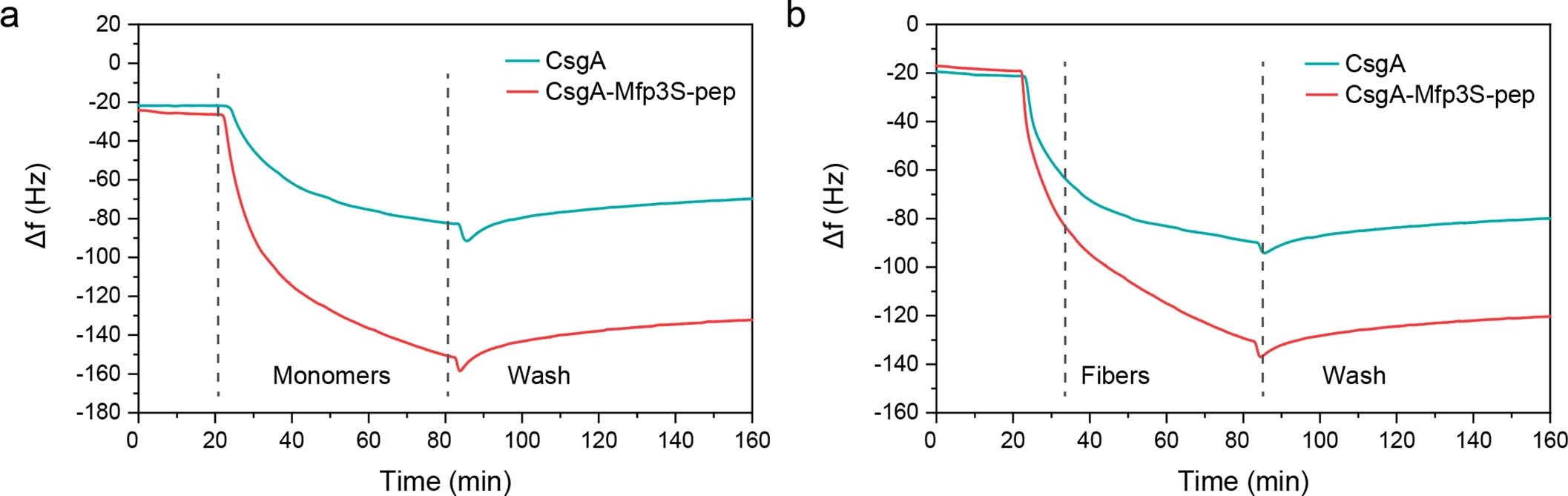

Extended Data Fig. 4: Adsorption behavior comparison of CsgA and CsgA-Mfp3S-pep on HA surfaces measured by QCM.
From: Living materials fabricated via gradient mineralization of light-inducible biofilms
a, Adsorption behavior of the CsgA and CsgA-Mfp3S-pep monomers (0.5 mg/mL) on HA-coated QCM chip. b, Adsorption behavior of the CsgA and CsgA-Mfp3S-pep nanofibers (initial monomer concentration at 0.5 mg/mL) on HA-coated QCM chip.
