Extended Data Fig. 7: RNA mass spectrometric analyses of tRNA-Tyr.

From: Comparative tRNA sequencing and RNA mass spectrometry for surveying tRNA modifications

Extended Data Fig. 7

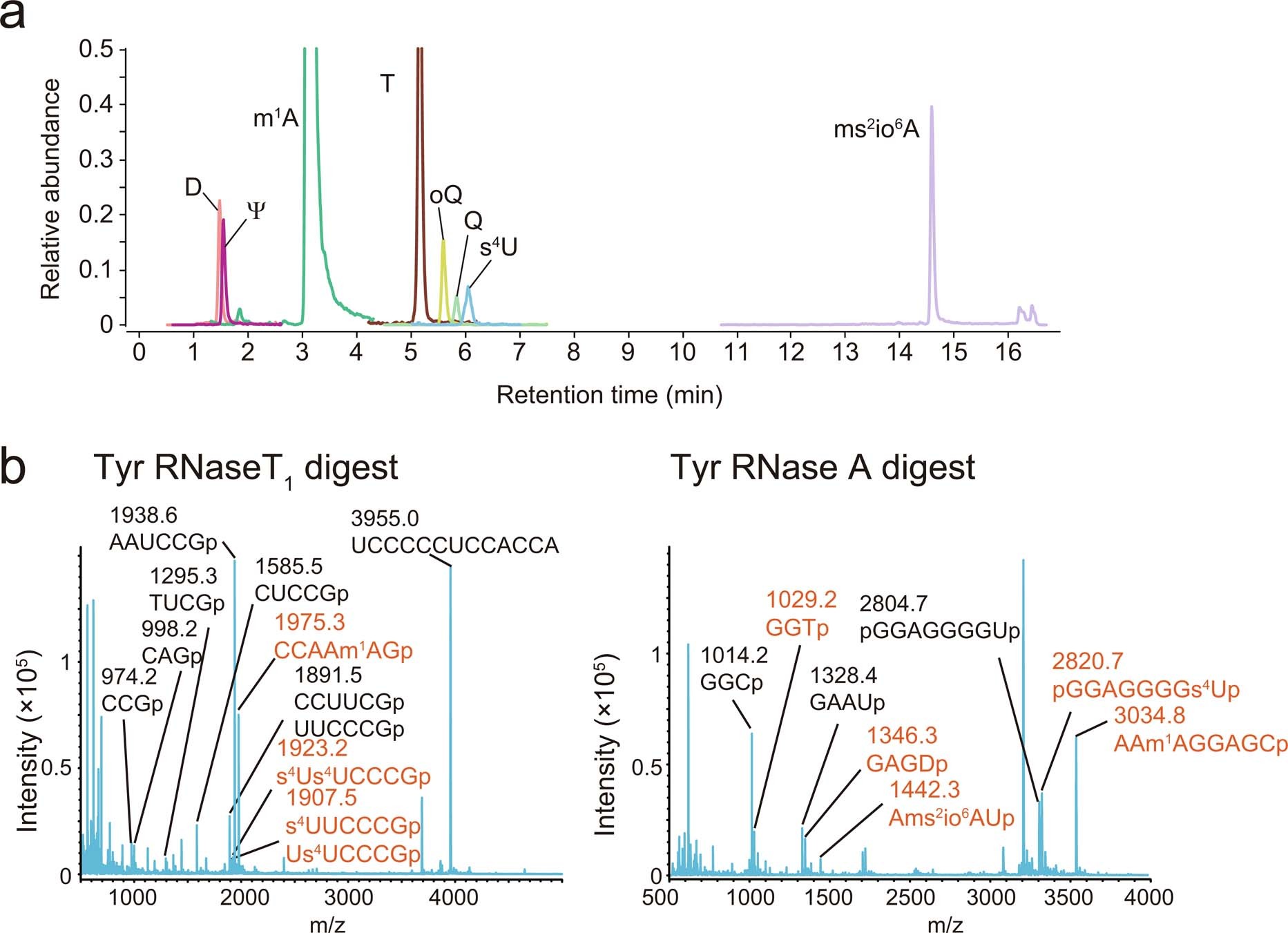

a, Nucleoside analysis detecting D, Ψ, m1A, T, oQ, Q, s4U, ms2io6A. The peak heights between different nucleosides are not comparable. Representative data from two independent experiments with similar results is shown. b, Fragment analyses of RNase T1 (left) and RNase A (right) digests. The fragments with or without modifications are shown in red and black, respectively. Measurement was conducted in positive polarity mode. Representative data from two independent experiments with similar results is shown.
