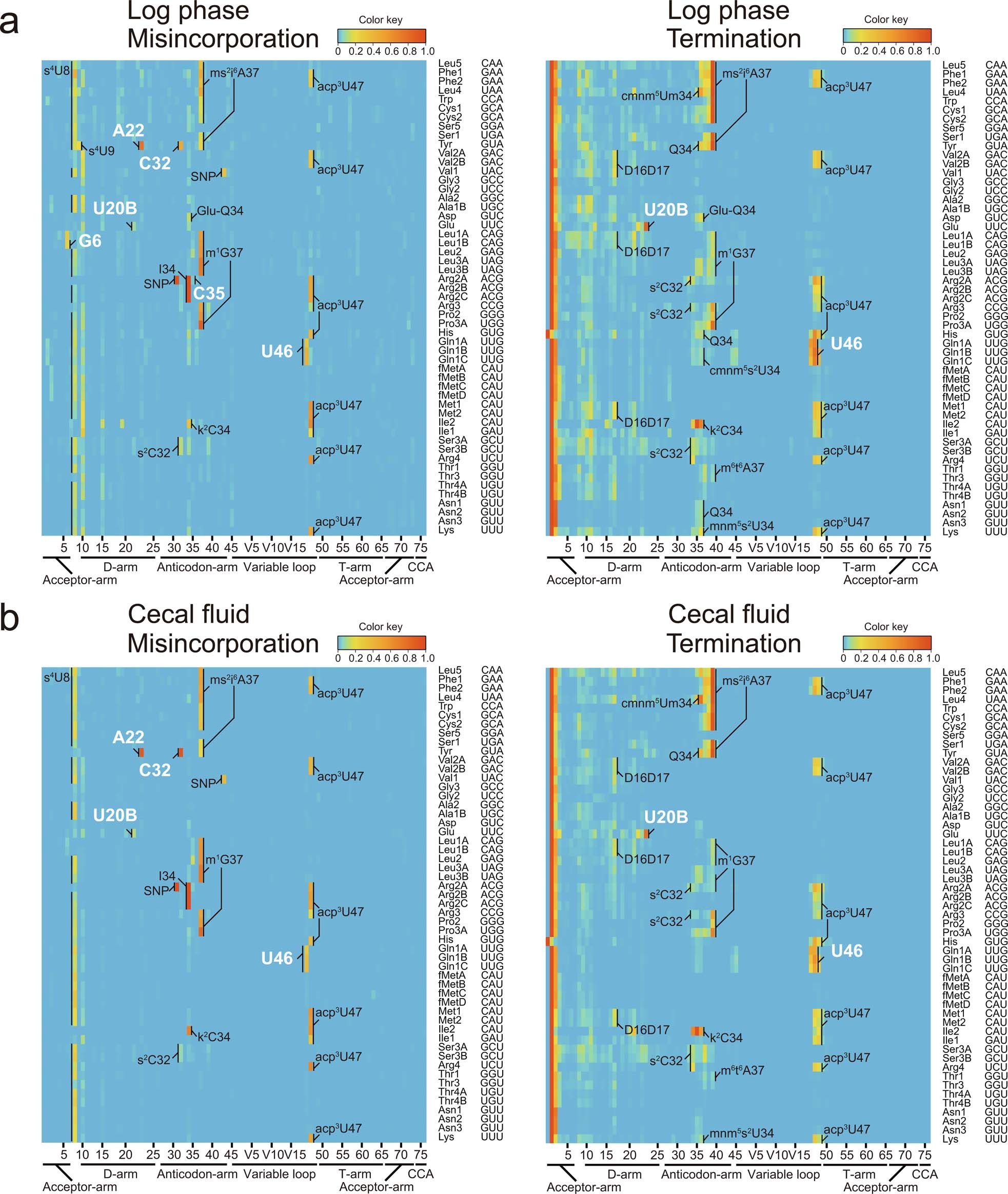

Extended Data Fig. 4: tRNA-seq profiles of log phase (a) and cecal fluid-derived (b)V. cholerae.
From: Comparative tRNA sequencing and RNA mass spectrometry for surveying tRNA modifications
Heatmaps of frequency of misincorporation (left) and termination of reverse transcription (right) signals in indicated samples. Types and positions of modifications that are presumed shared with E. coli are shown in black. Positions of V. cholerae-specific signals are indicated in white letters. Representative data from three replicates with similar results is shown.
