Extended Data Fig. 2: Interaction schemes of Tetracenomycin X and Tetracycline.
From: Tetracenomycin X inhibits translation by binding within the ribosomal exit tunnel

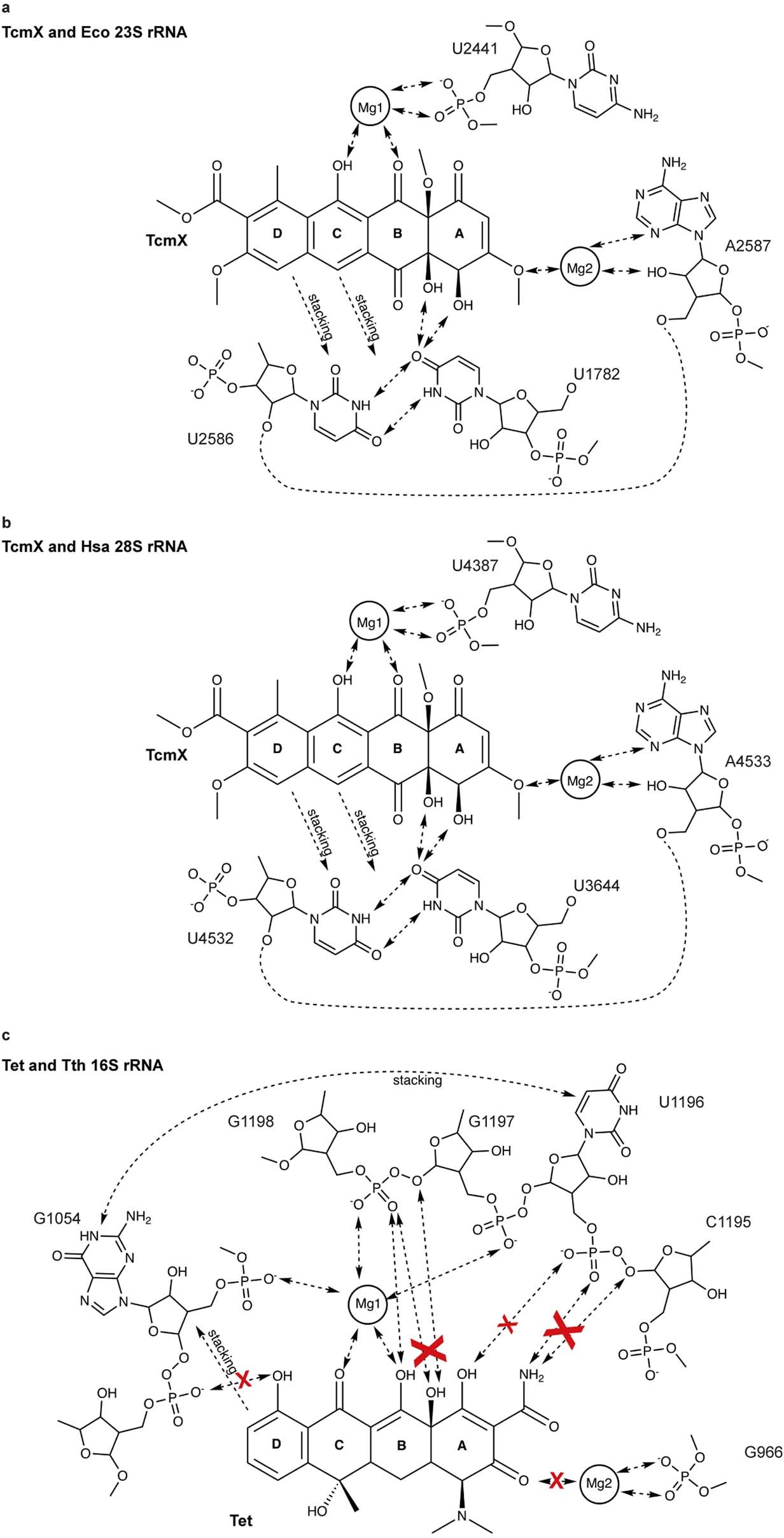

a,b, Interaction scheme of Tetracenomycin X (TcmX) on the large subunit of the E. coli and H. sapiens ribosomes, respectively. c, Interaction scheme of Tetracycline (Tet) on decoding site of the small subunit of the T. thermophilus 70 S ribosome21, with red crosses marking interactions that TcmX cannot form when docked into the Tet binding site.
