Extended Data Fig. 6: IsoAnalyst profiles for desferrioxamine analogues.
From: An isotopic labeling approach linking natural products with biosynthetic gene clusters

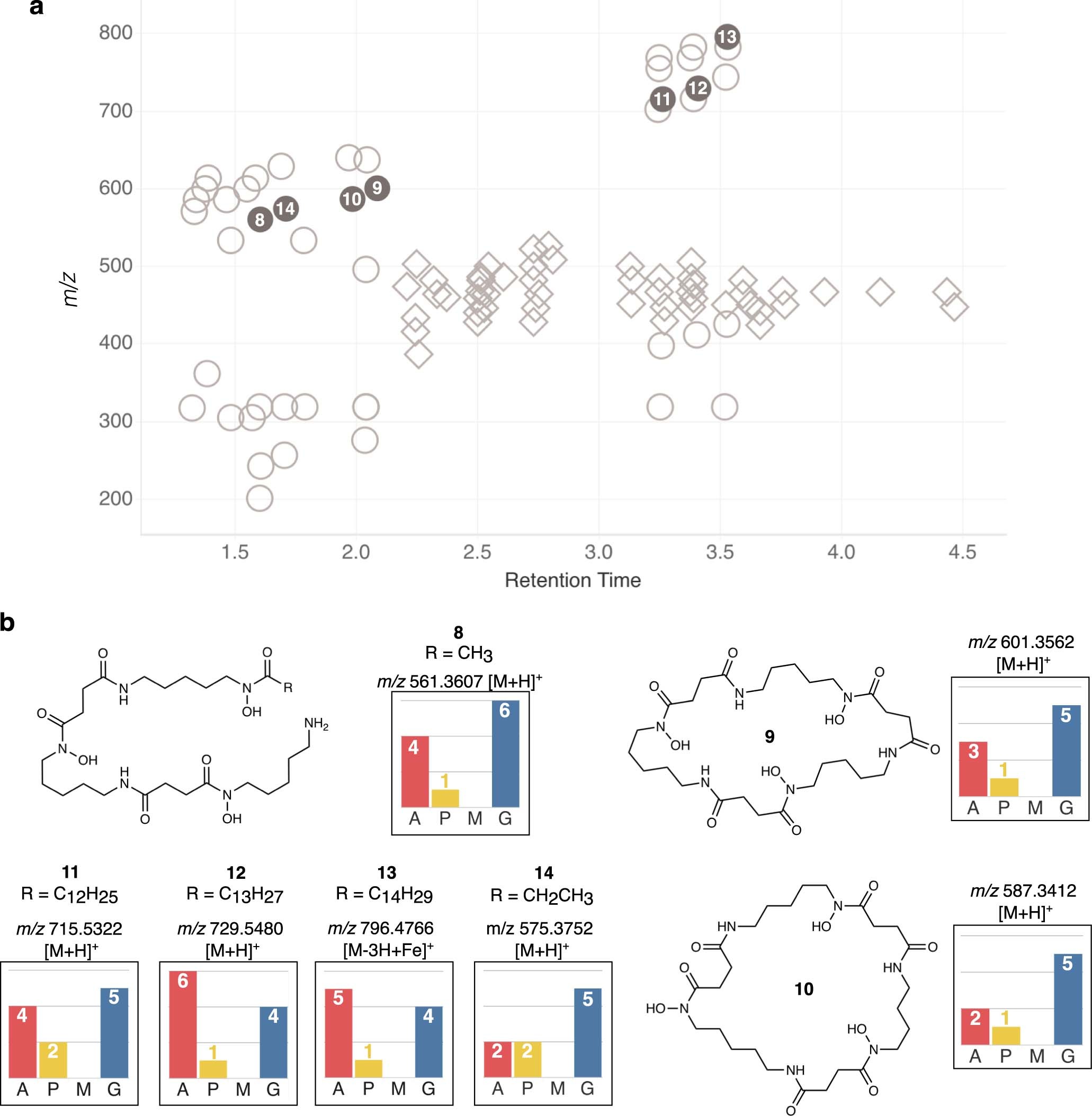

(a) Diagram showing all labeled MS features detected in the metabolome of Micromonospora sp. Circles represent features with IsoAnalyst profiles resembling the desferrioxamines. Diamonds represent features with IsoAnalyst profiles resembling the lobosamides. (b) Structures and IsoAnalyst profiles for desferrioxamine compounds indicated by filled gray circles in (a).
