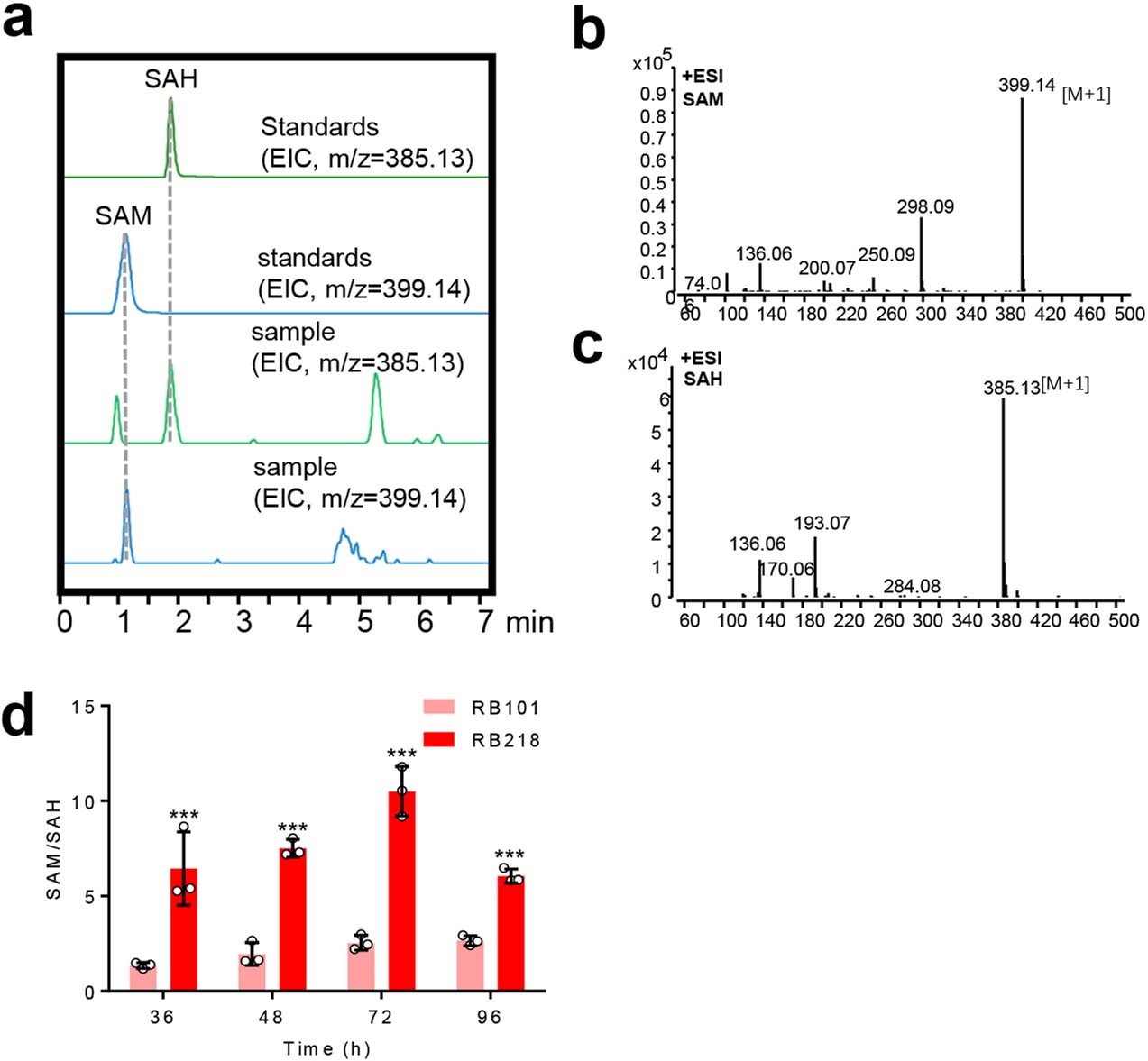

Extended Data Fig. 9: Quantification of cellular SAM and SAH in FA producing strains.
From: Engineering cofactor supply and recycling to drive phenolic acid biosynthesis in yeast
a. Representative chromatographs of standards and samples. Corresponding mass spectra of SAM (b) and SAH (c). d. Cellular SAM/SAH ratios were detected at different time points. All strains were grown at 30 °C in 20 mL of Delft-D medium containing 20 g/L glucose. All data represent the mean of n = 3 independent biological samples and error bars show standard deviation. Statistical analysis was performed by using Student’s t test (one-tailed; two-sample unequal variance; *p < 0.05, **p < 0.01, ***p < 0.001).
