Fig. 2: Dose response of drugs screened against SARS-CoV-2.

From: Targeted protein S-nitrosylation of ACE2 inhibits SARS-CoV-2 infection

Fig. 2

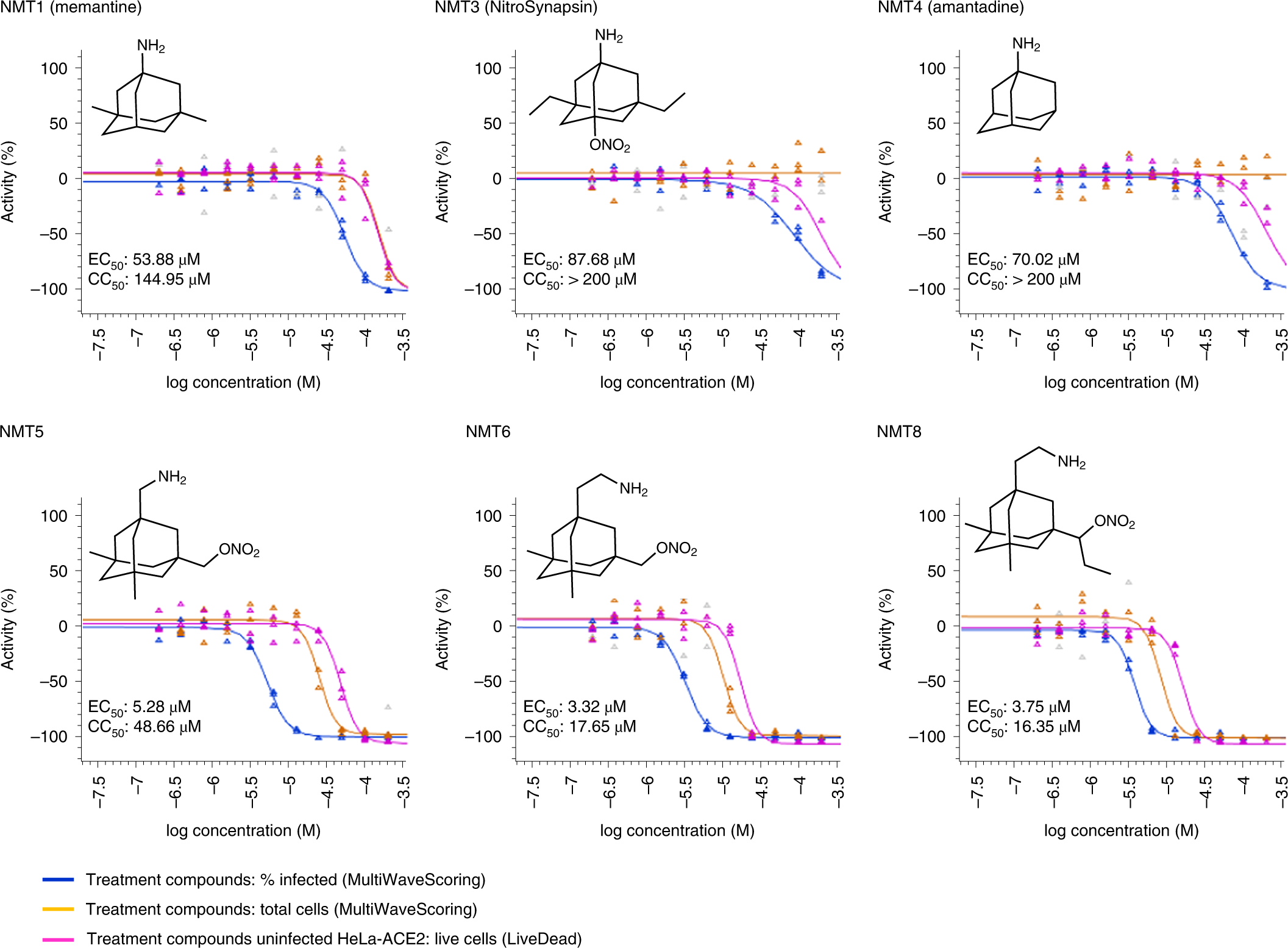

Dose–response curves showing the EC50 of each compound against SARS-CoV-2 (% infected cells, blue), total cell counts (orange) in the infection experiment and the CC50 for uninfected host cell toxicity (magenta), as assessed in HeLa-ACE2 cells. See also Supplementary Dataset 1 for the full dataset.
