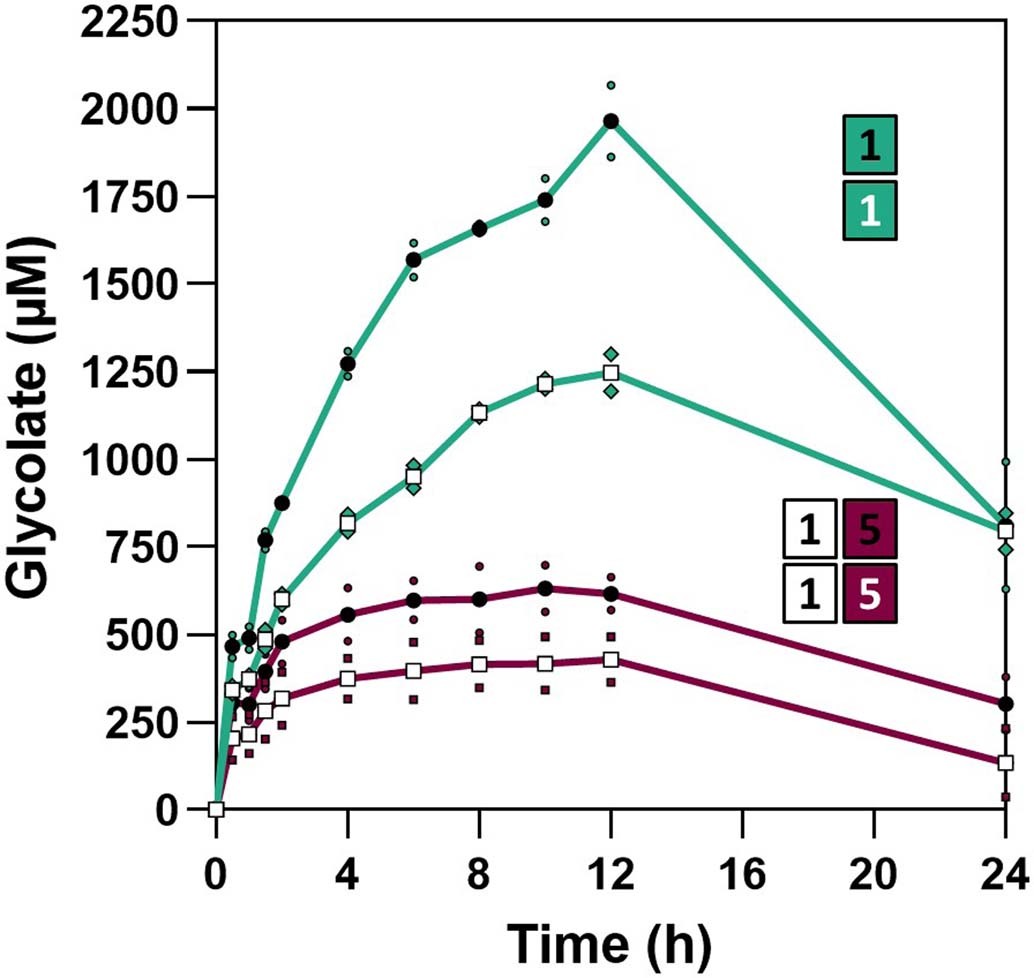

Extended Data Fig. 7: Glycolate production of module 1 in the presence or absence of module 5.
From: Synthetic anaplerotic modules for the direct synthesis of complex molecules from CO2
Glycolate production of module 1 (CETCH core cycle) with and without module 5 (DEBS) shows that glycolate yield is reduced by almost 70% by addition of module 5. The assays are technical duplicates and were either started using 167 µM propionyl-CoA (white squares) or 333 µM propionyl-CoA (black circles). All experiments were performed in technical duplicates and are displayed as mean and their individual data points.
