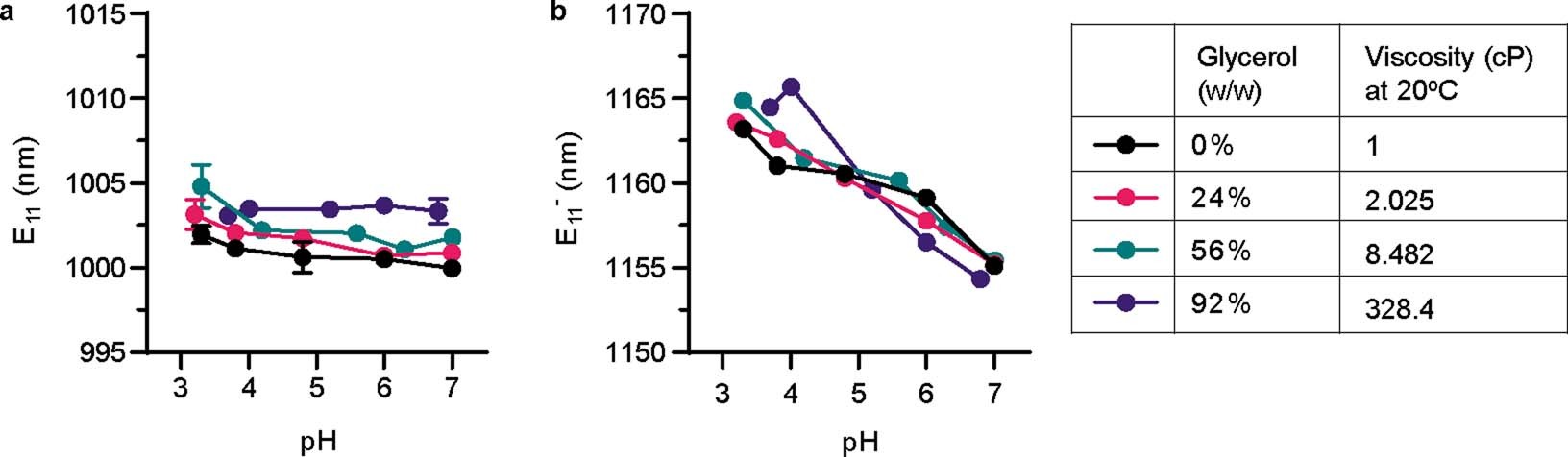

Extended Data Fig. 3: Viscosity effects on OCC-DNA optical response.
From: Nanosensor-based monitoring of autophagy-associated lysosomal acidification in vivo
Emission wavelengths of a, E11 and b, E11- of the OCC-DNA complexes at varying buffer pH and glycerol. All data are presented as mean values and error bars denote standard deviation from N = 3 technical replicates (a,b).
