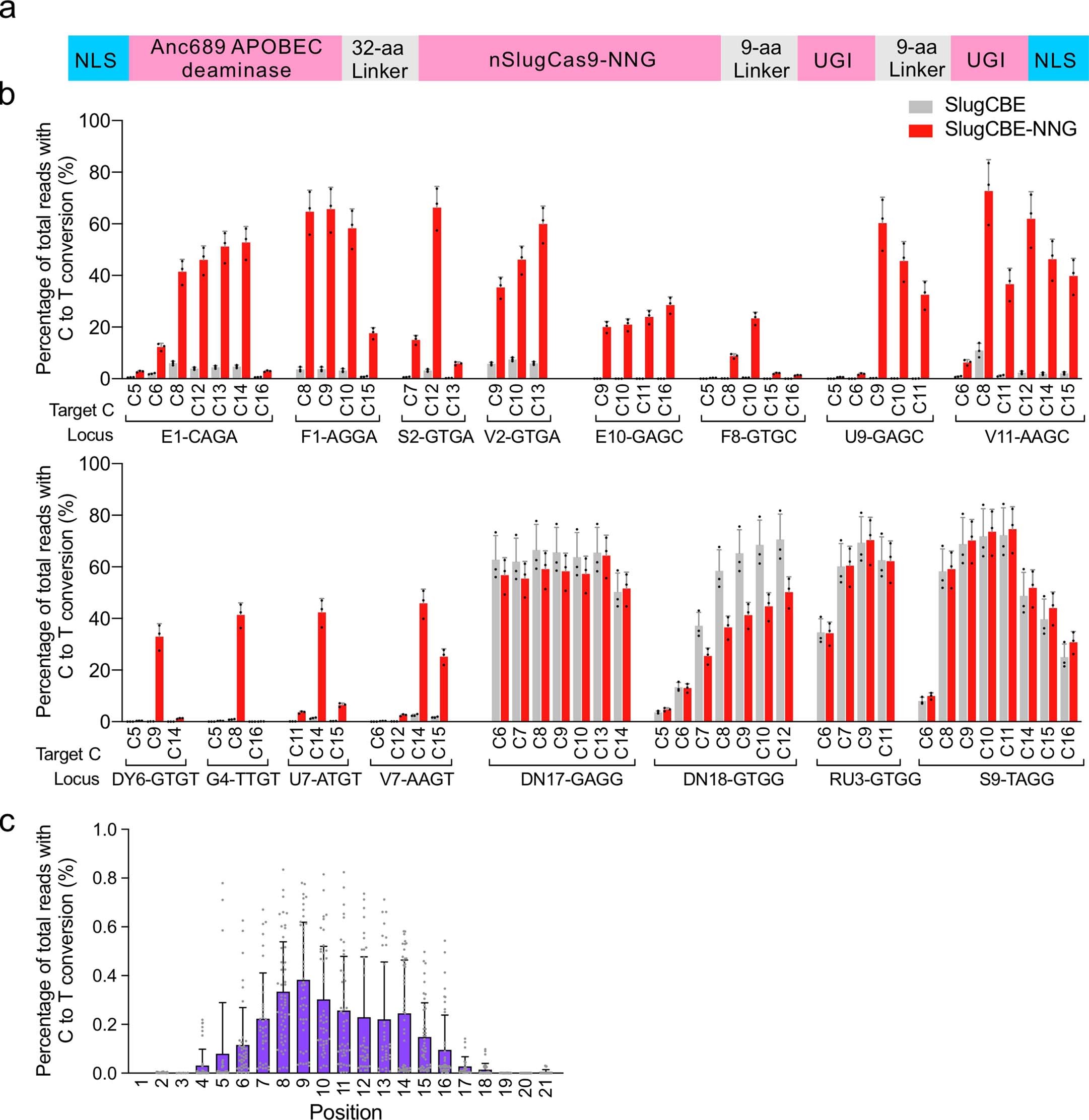

Extended Data Fig. 9: Base editing with SlugCBE-NNG in human cells.
From: Phage-assisted evolution of compact Cas9 variants targeting a simple NNG PAM
a, Schematic of the SlugCBE-NNG. b, Examples of C to T conversion at target sites in HEK293T cells. The PAM for each site is shown below. Data are mean + s.d. of n = 3 independent experiments. c, Editing window generated from 40 genomic target sites. The mean and s.d. of all individual values of n = 3 independent biological replicates are plotted. Statistical source data are available (Source Data Extended Data Fig. 9).
