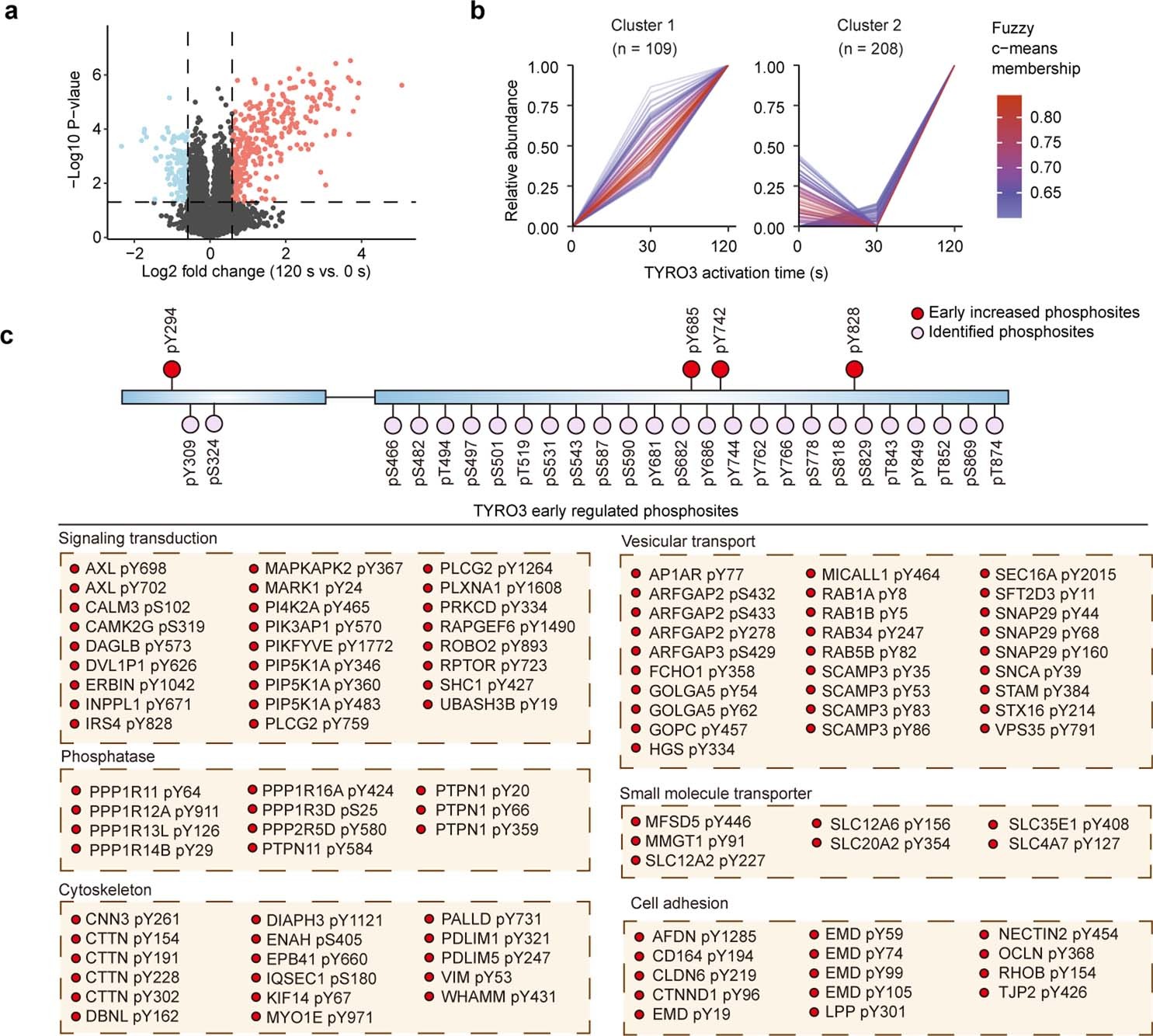

Extended Data Fig. 9: DeKinomics-depicted TYRO3 function.
From: DeKinomics pulse-chases kinase functions in living cells
a, Volcano plot comparisons between TYRO3-activated cells and control cells. n = 3 independent experiments; two-sided Student’s t-test. b, The fuzzy c-means clustering of significantly changed phosphosites in phosphoproteome. c, An overview of early phosphorylation cascades of TYRO3. The annotations of protein function were adopted from Uniprot database.
