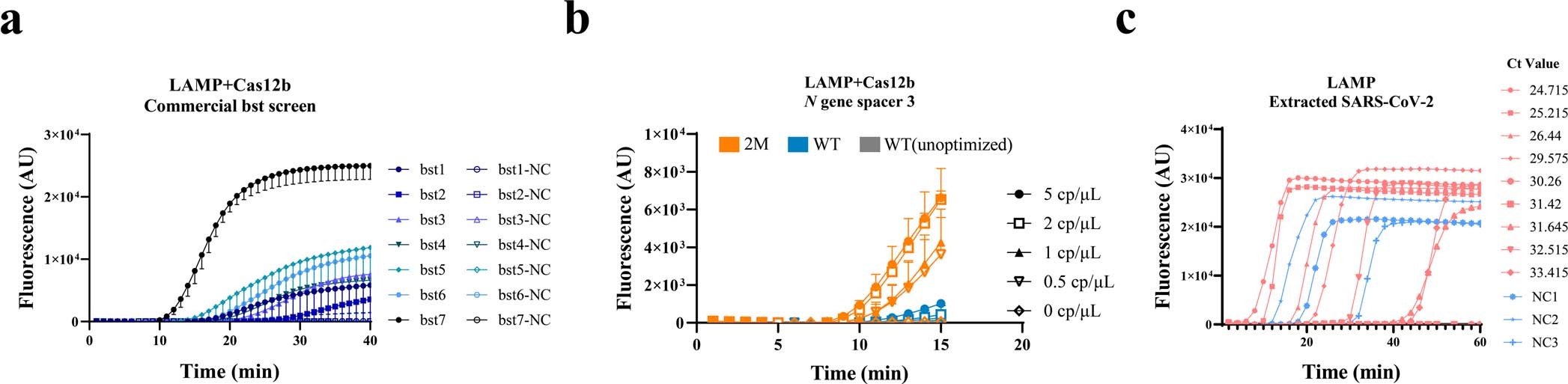

Extended Data Fig. 4: Optimization of one-pot testing.
From: Fast and sensitive CRISPR detection by minimized interference of target amplification
(a) The performance of commercially available bst enzymes were determined in one-pot testing at 60 °C. Bst1-7 represent bst 2.0 DNA polymerase (NEB), bst 3.0 DNA polymerase (NEB), bst DNA polymerase from Vazyme, Beyotime, FAPON-BIOTECH, YEASEN and bst DNA polymerase Plus from YEASEN. (b) The optimized one-pot testing using Cas12b-2M or WT. ‘cp/µL’ indicates the copy number per microliter in one-pot testing. For a & b, mean ± s.d. for 3 technical replicates. (c) LAMP alone tests of SARS-CoV-2 clinical samples.
