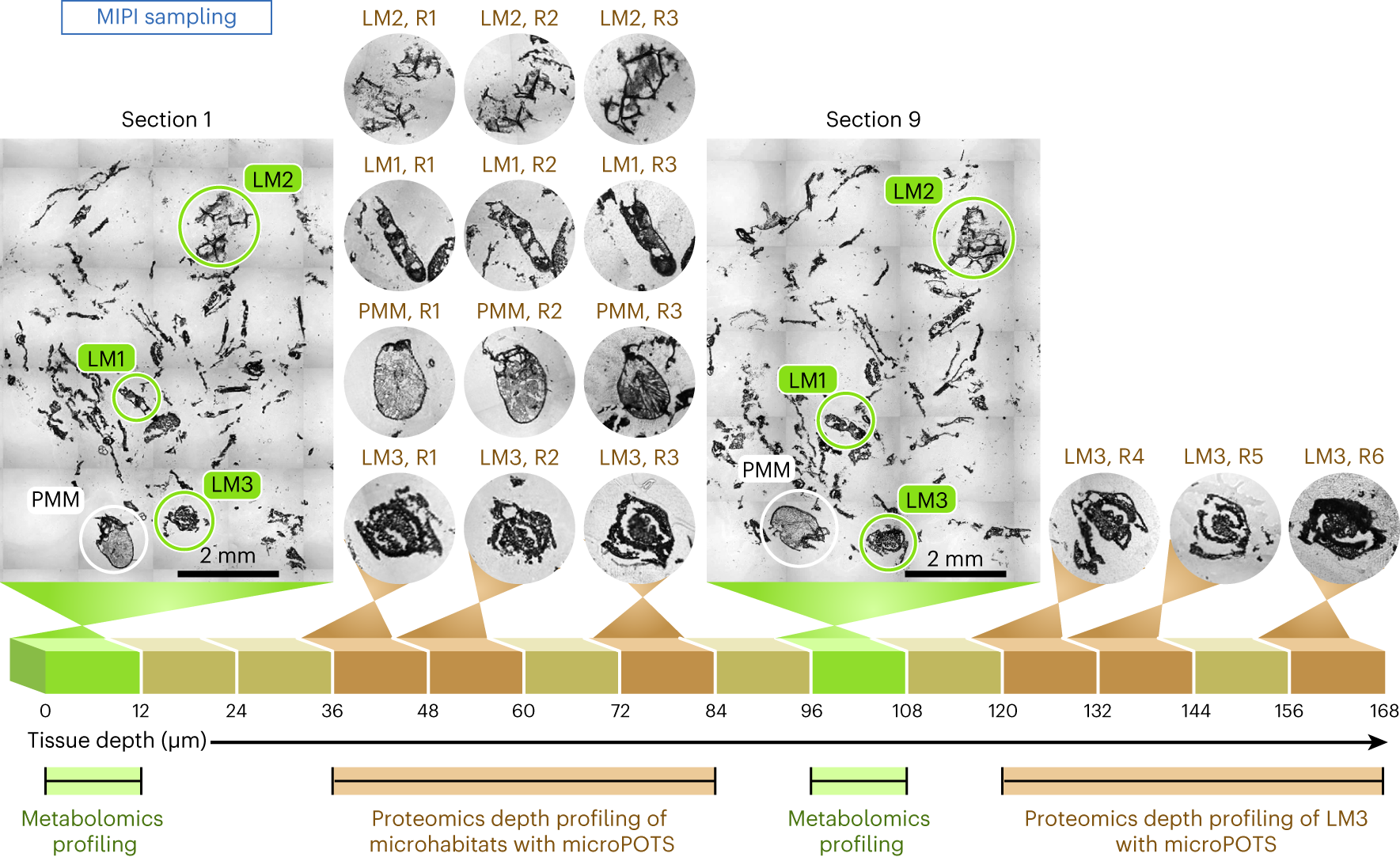

Fig. 2: MIPI depth profiling of microhabitat zones.
From: Mapping microhabitats of lignocellulose decomposition by a microbial consortium
An illustration of our MIPI depth profiling through microhabitats (LM1, LM2, PMM and LM3) with replicate sections (R1, R2, R3, R4, R5 and R6).
