Extended Data Fig. 7: Cryo-EM image processing of molnupiravir-bound INT1 and INT2 conformational states of bCNT3.

From: Antiviral drug recognition and elevator-type transport motions of CNT3

Extended Data Fig. 7

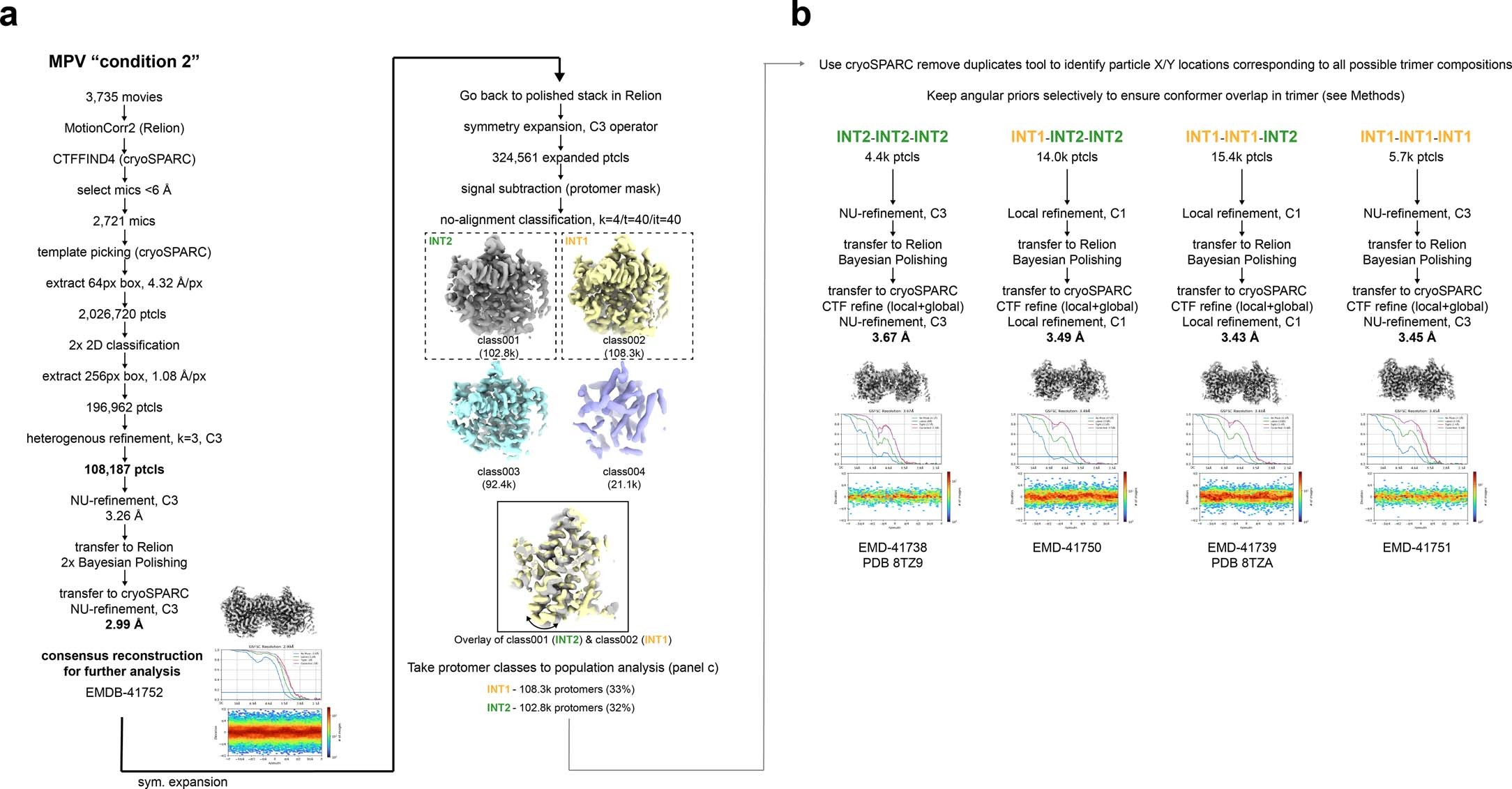

a, Initial cryo-EM image processing procedure for the ‘MPV condition 2’ dataset. b, Cryo-EM ensemble analysis of ‘MPV condition 2’. Final Fourier shell correlation plots and angular orientation distribution plots shown next to every reconstruction obtained.
