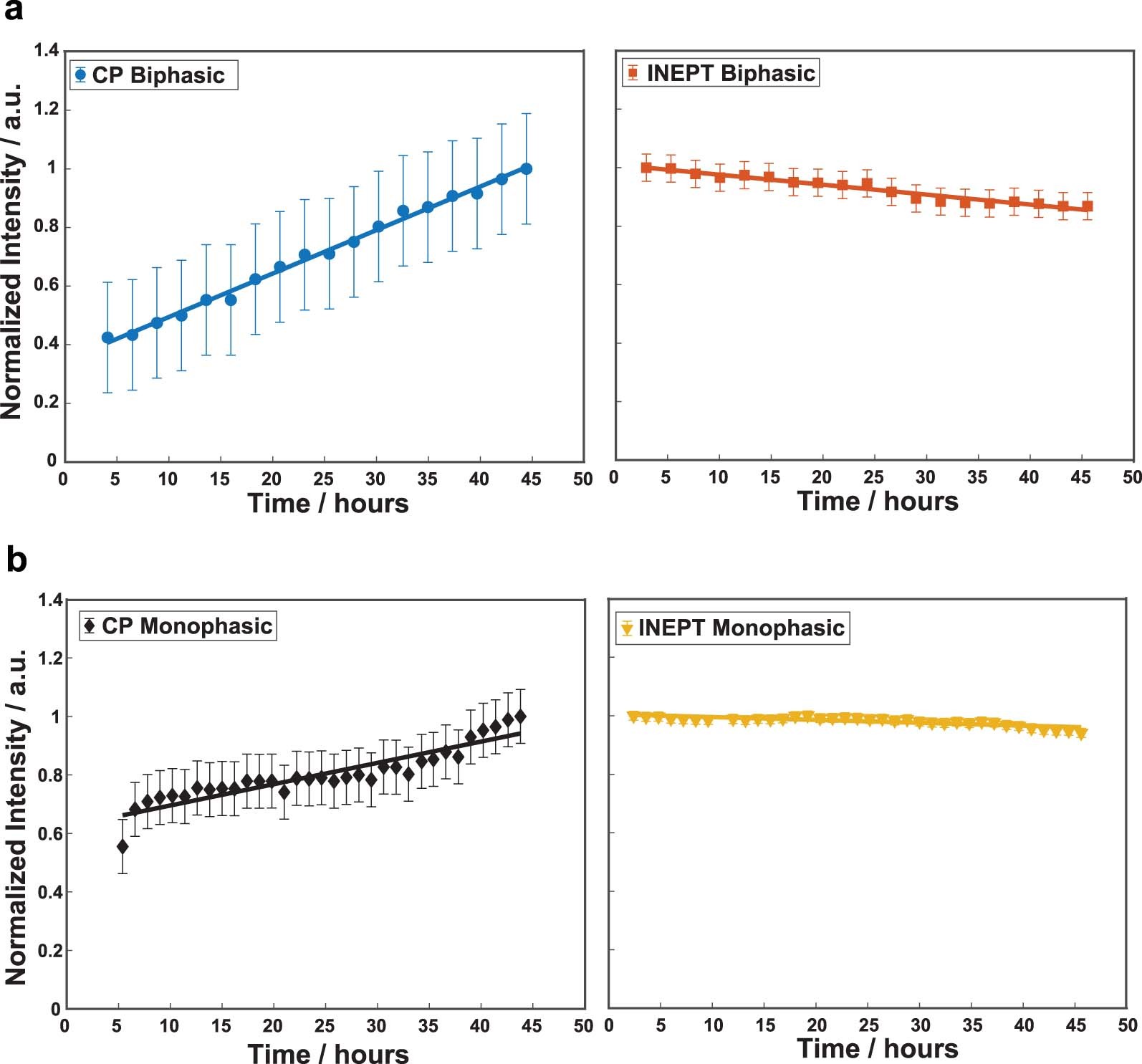

Extended Data Fig. 8: Maturation during the first two days.
From: A solid beta-sheet structure is formed at the surface of FUS droplets during aging
a) Time-dependent intensity changes for the absolute spectral integrals during two days of maturation for 13C,1H CP-MAS and 13C,1H INEPT spectra of biphasic FUS. The intensity of the total CP spectrum recorded after two days was normalized to one. A linear regression is shown (straight lines) with slopes of 0.346 a.u./days (CP), −0.082 a.u./days (INEPT). b) Time-dependent intensity changes for the absolute spectral integrals during two days of maturation for 13C,1H CP-MAS and 13C,1H INEPT spectra of monophasic FUS. The intensity of the total CP spectrum recorded after two days was normalized to one. A linear regression is shown (straight lines) with slopes of 0.214 a.u./days (CP), −0.022 a.u./days (INEPT). All normalized intensities data are presented as signal-to-noise values +/- standard deviation.
