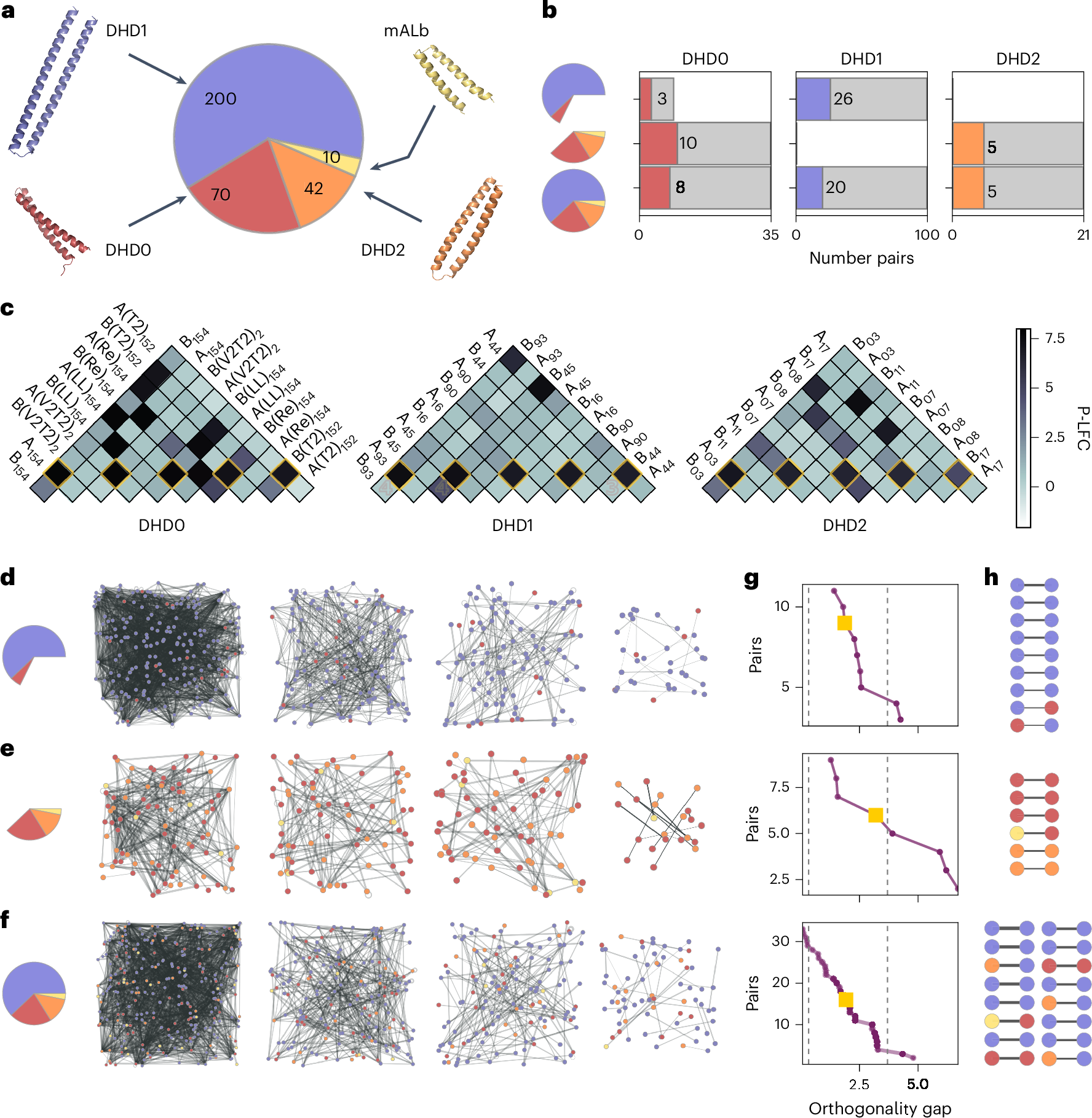

Fig. 4: High-throughput screening of DHDs.
From: Massively parallel measurement of protein–protein interactions by sequencing using MP3-seq
