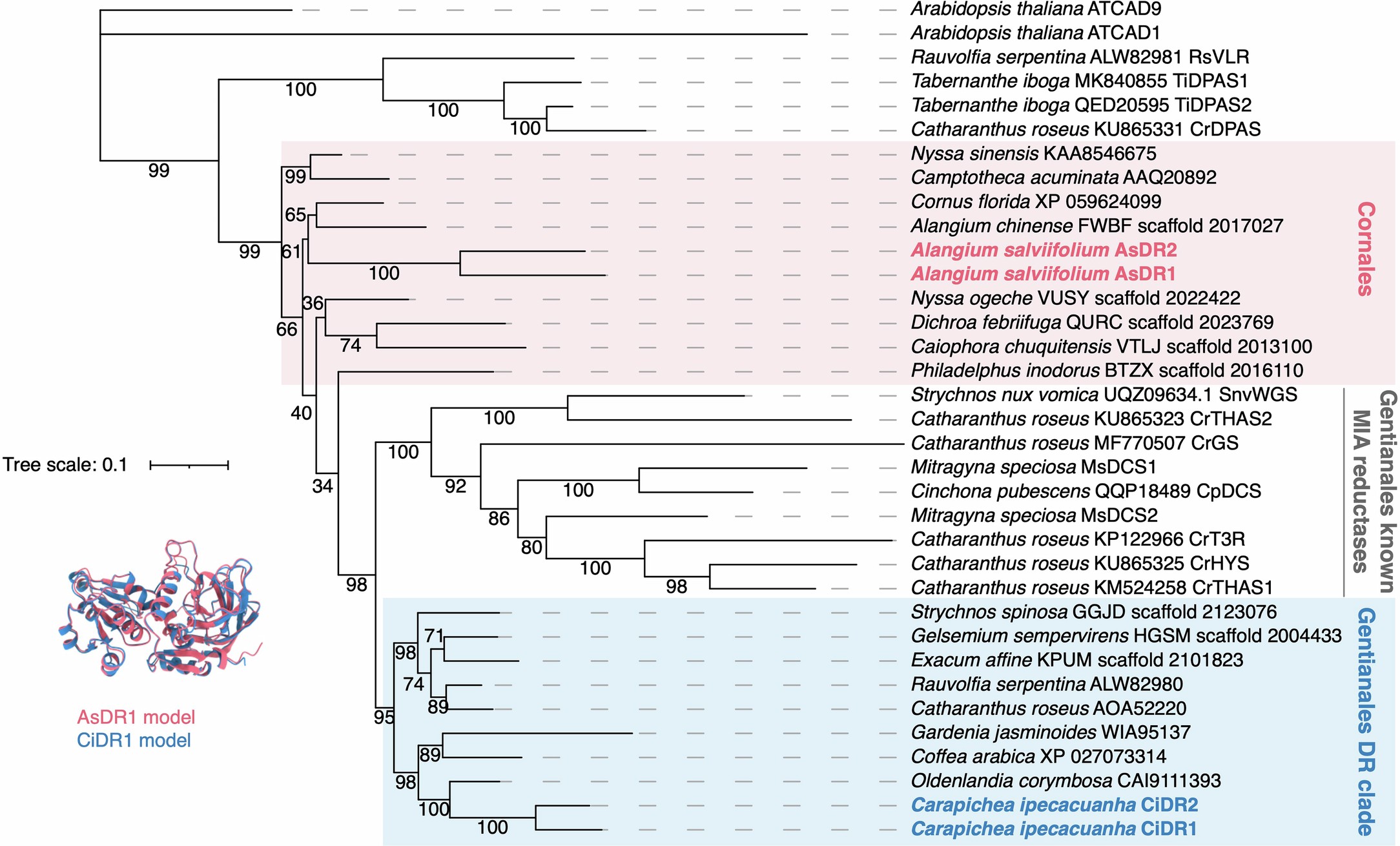

Extended Data Fig. 9: Parallel evolution of A. salviifolium versus C. ipecacuanha DRs.
From: Ipecac alkaloid biosynthesis in two evolutionarily distant plants
Maximum likelihood phylogenetic tree of DR amino acid sequences and homologs from other Cornales and Gentianales species. Alphafold3 models indicate same folds for all DRs.
