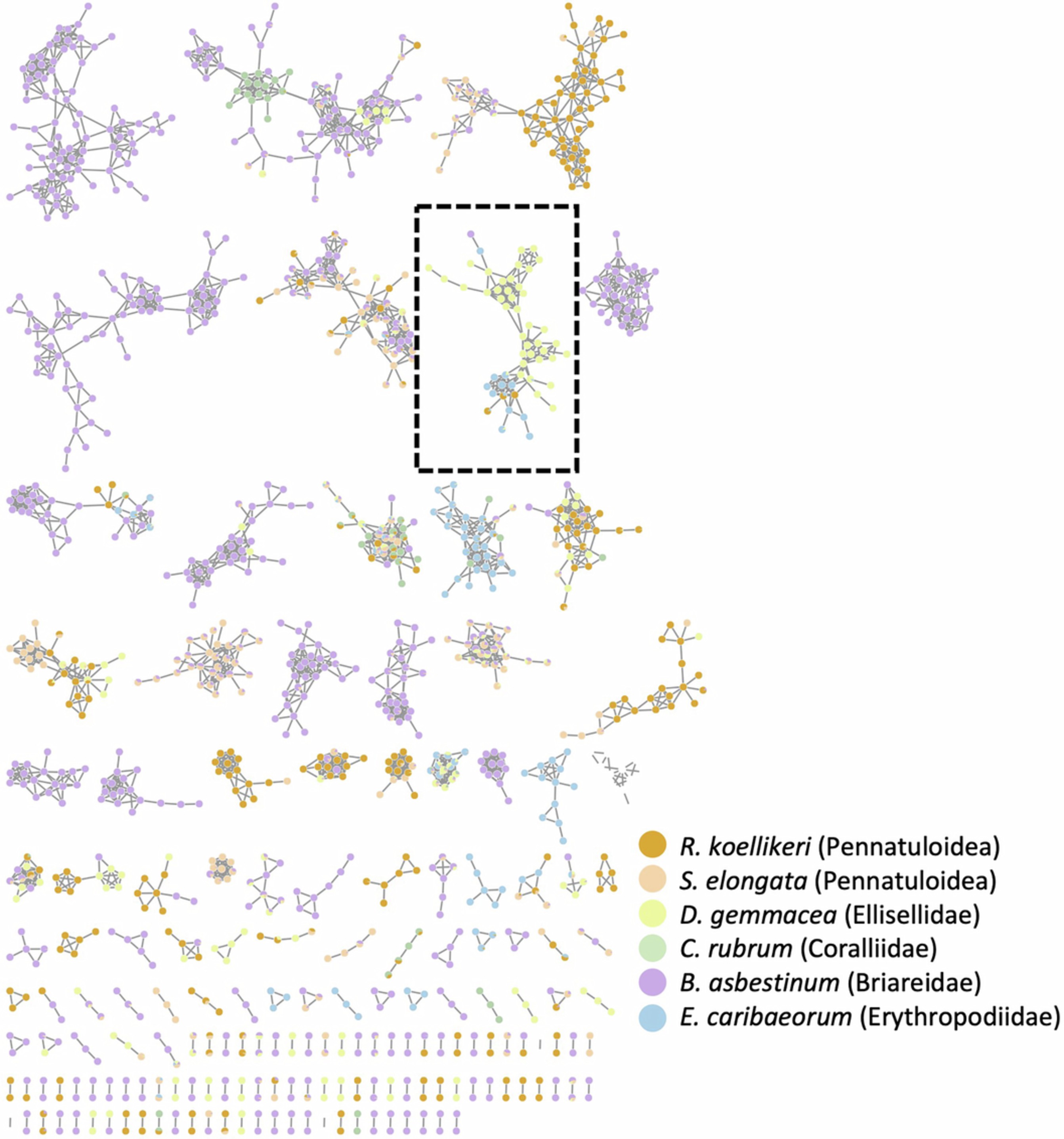

Extended Data Fig. 2: The briarane terpenoid-containing complete molecular network.
From: A widespread metabolic gene cluster family in metazoans
Feature-based molecular networking (FBMN) was used to visualize relationships among metabolites detected in liquid chromatography-tandem mass spectrometry (LC-MS/MS) data from crude extracts of the six focal coral species analyzed in this study. Each node in the network represents a molecular feature, while edges indicate spectral similarity, grouping structurally related metabolites into clusters. The boxed region specifically highlights the briarane diterpene network, as shown in Fig. 2c, distinguishing this family of metabolites within the broader chemical space.
