Fig. 3: Summary of arginylation sites and ATE1 substrates in human proteins and proteomes.

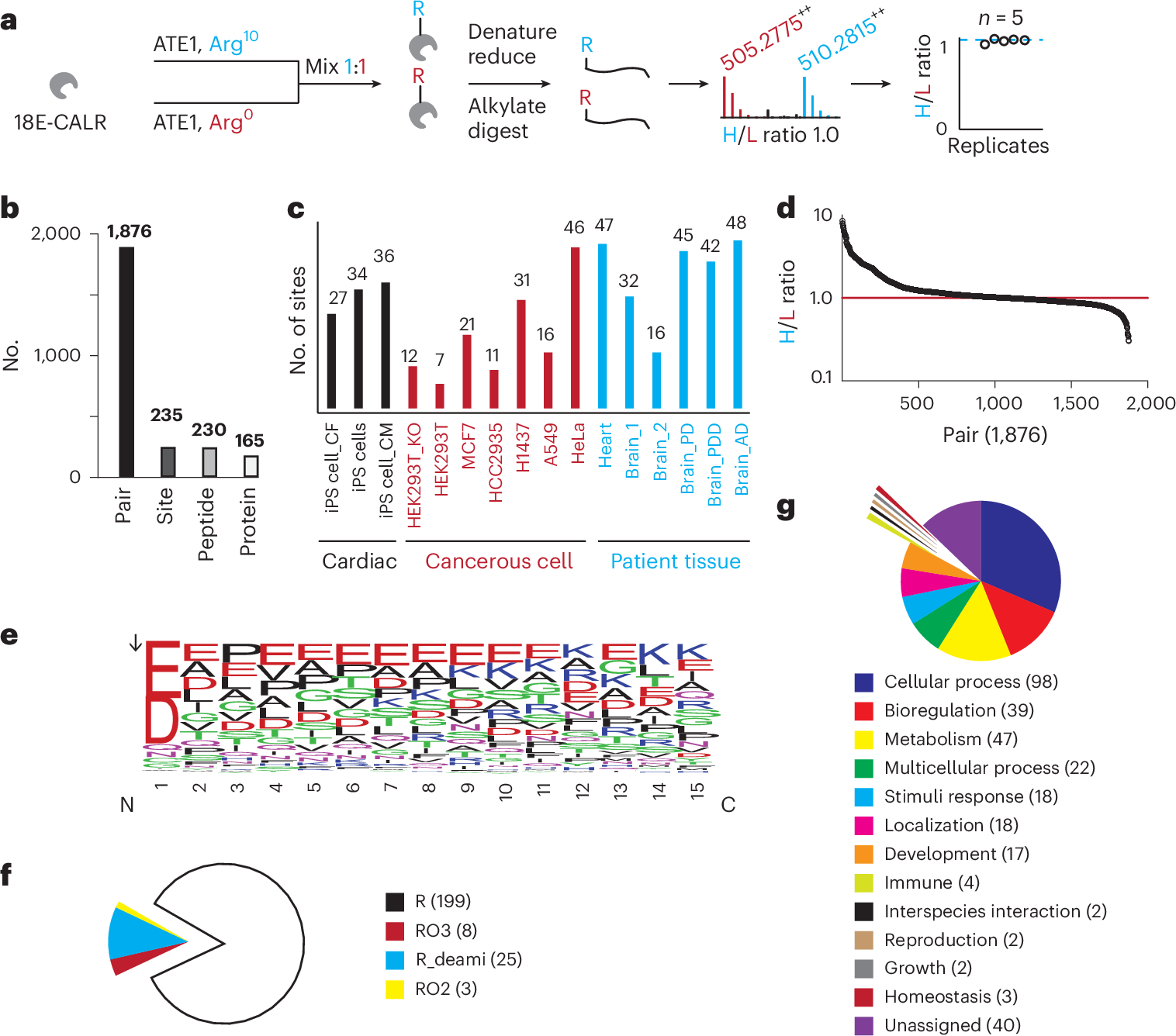

From: An unbiased proteomic platform for ATE1-based arginylation profiling
