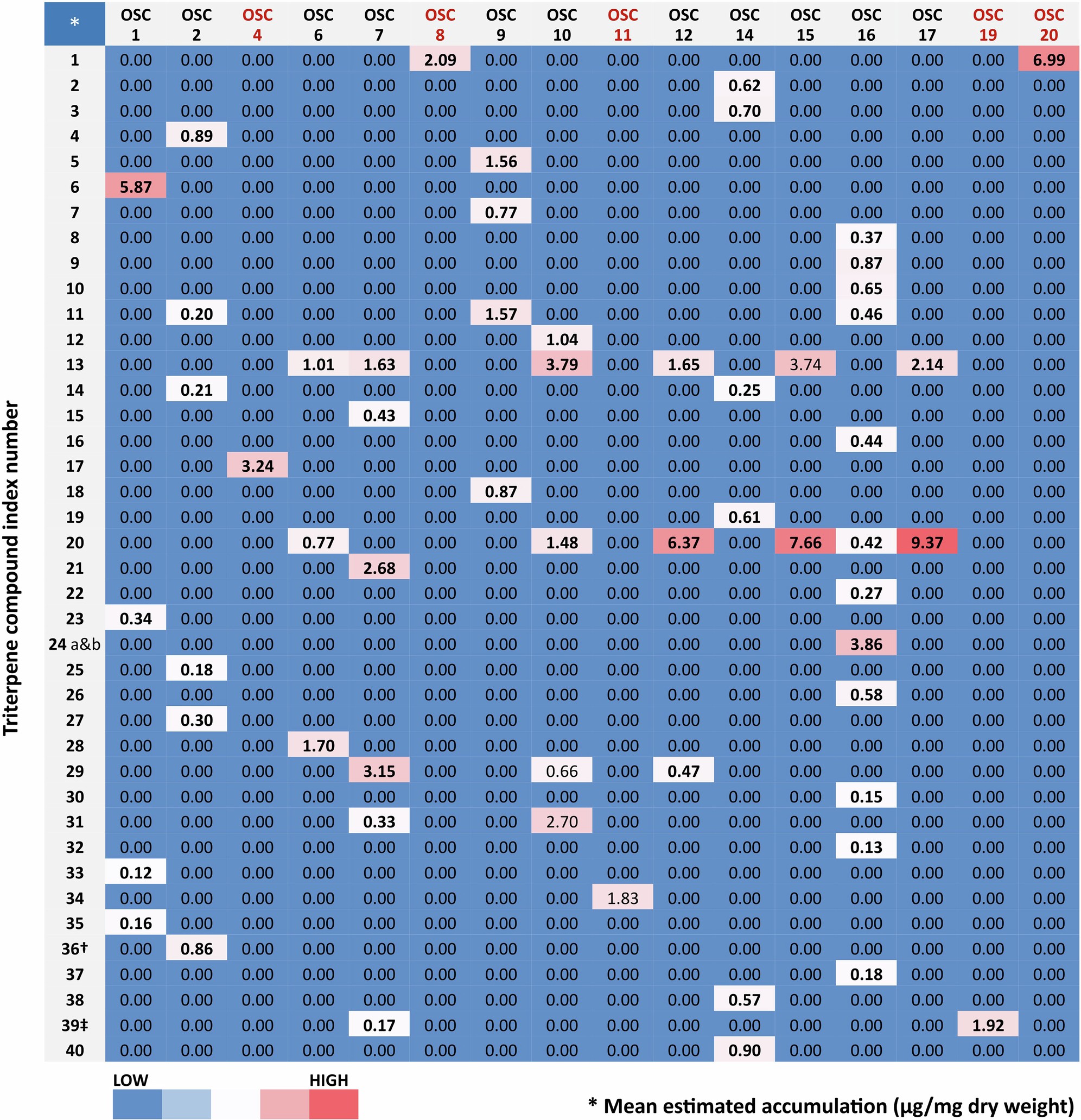

Extended Data Fig. 4: Summary matrix showing the overall mean estimated accumulation of triterpene compounds 1–40 (µg/mg dry weight) for each OSC tested.
From: Large-scale mining of plant genomes unlocks the diversity of oxidosqualene cyclases
For compounds 36 and 39, the sum of their artefactual degradation peaks are used. Compound 36 (†) degrades into two peaks during extraction; compound 39 (‡) partially degrades to compound 21 during GC-MS (See Fig. 4a and Supplementary Figs. 8 and 12). See Supplementary Data 4 – Supplementary Database for source Total Ion Chromatograms.
