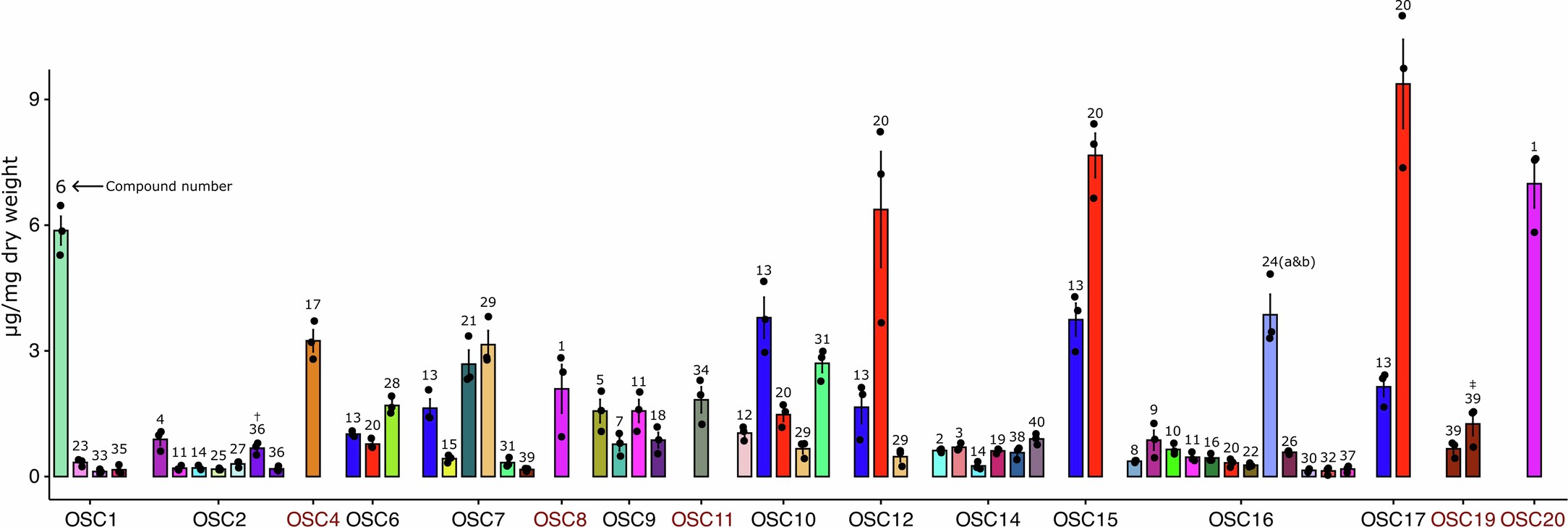

Extended Data Fig. 3: Estimated accumulation of products generated by OSCs.
From: Large-scale mining of plant genomes unlocks the diversity of oxidosqualene cyclases
Levels were estimated by GC-MS relative to an internal standard (coprostanol 100 ppm) following transient expression in N. benthamiana. Error bars represent standard error of the mean (three biological replicates). NB: Compound 36 (†) degrades into two peaks during extraction; compound 39 (‡) partially degrades to compound 21 during GC-MS (See, Fig. 4a and Supplementary Figs. 8 and 12). Names of OSCs that make multiple products (multifunctional OSCs) are in black, while those of OSCs that make one major product (that is are committed) are in red. See Supplementary Data 4 – Supplementary Database for source Total Ion Chromatograms and Source Data for this figure.
