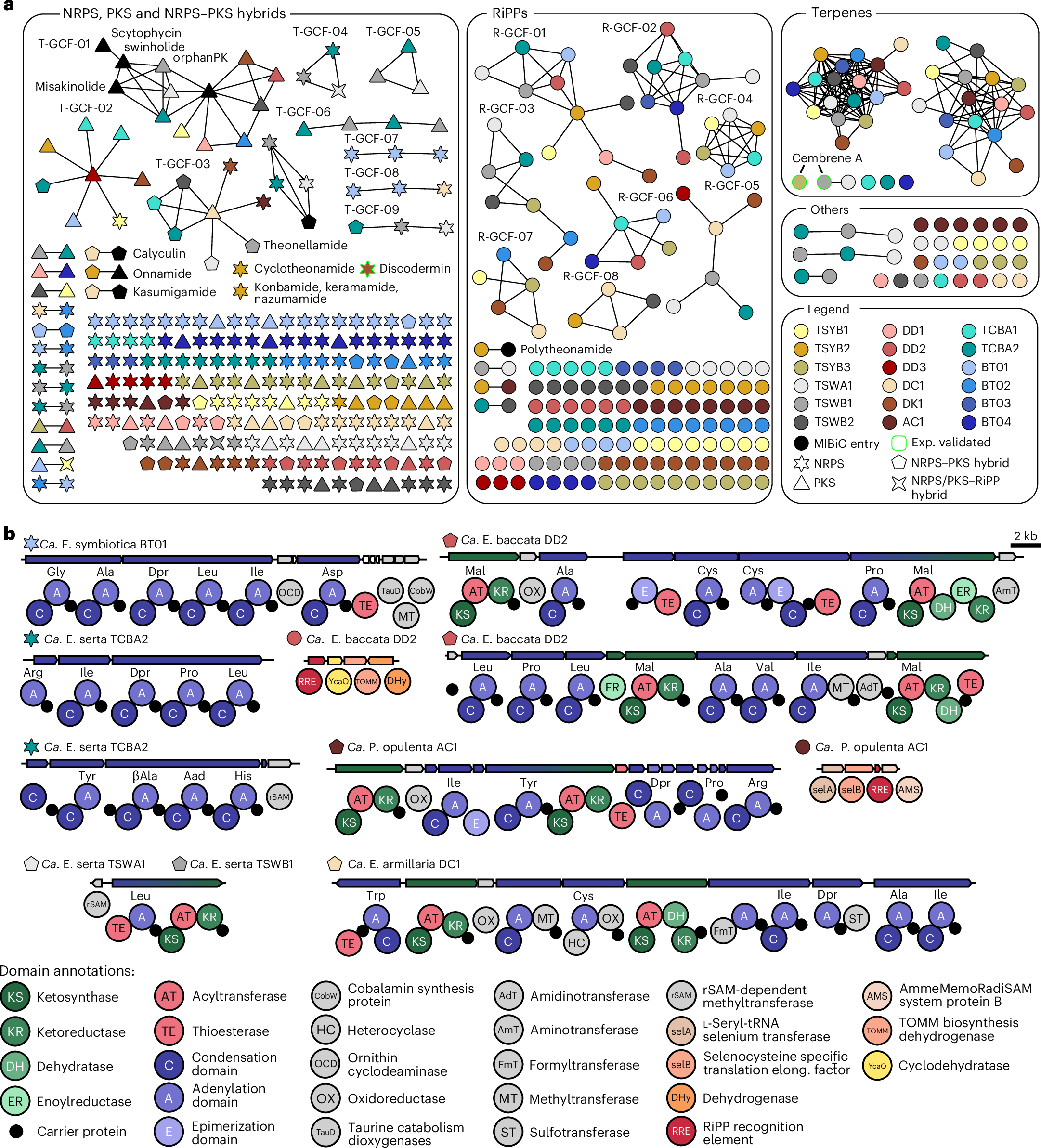

Fig. 3: Biosynthetic potential analysis of all genomes.
From: Chemical richness and diversity of uncultivated ‘Entotheonella’ symbionts in marine sponges
a, BiG-SCAPE output of a BGC network divided into the major NP classes: thiotemplate, RiPPs, terpenes and others. If two shapes are connected, their BGC (fragments) are similar to each other. The various colors and shapes refer to the genome and thiotemplate enzyme family, respectively, as described in the legend. b, Selected BGCs and their encoded biosynthetic domains are shown. For acyltransferase (AT) and A domains, the substrate selectivity as predicted by antiSMASH is written above the domain. The protein family of domains is provided in the domain annotations. Dpr: 2,3-diaminopropionic acid.
