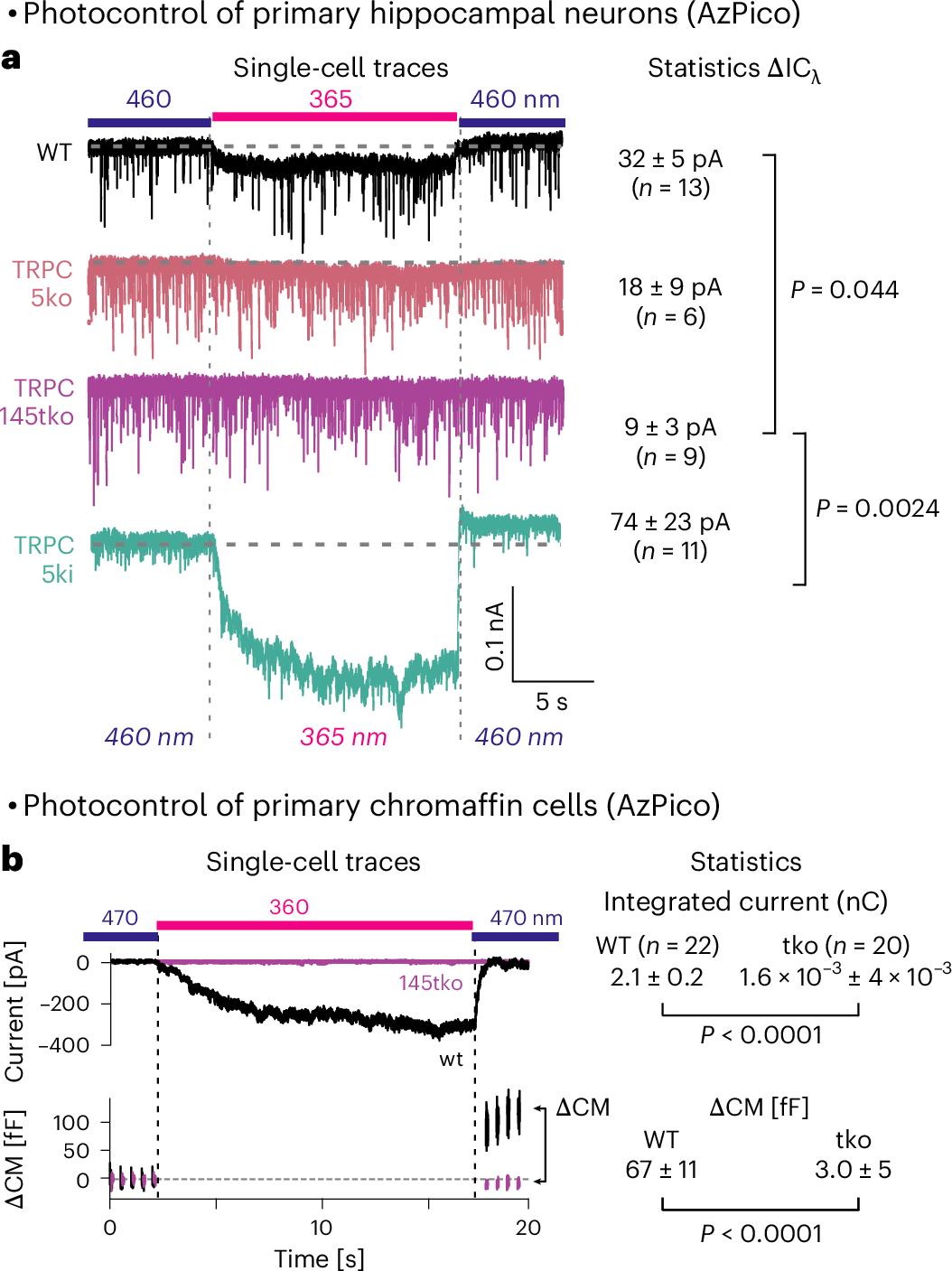

Fig. 4: AzPico (30 nM) photoswitchably evokes currents in primary neuronal and neuroendocrine cells.
From: Ideal efficacy photoswitching for chromocontrol of TRPC4/5 channel functions in live tissues
a, Photoswitching-based current differentials ΔICλ in hippocampal neurons (currents at 365 nm relative to 460 nm). b, Photoswitch-based currents and net charge transfer (top) correlate with ΔCM (bottom), indicating that phototriggering of TRPC[1]/4/5 leads to exocytosis (details in Supplementary Fig. 21). Left, single-cell traces; right, group statistics.
