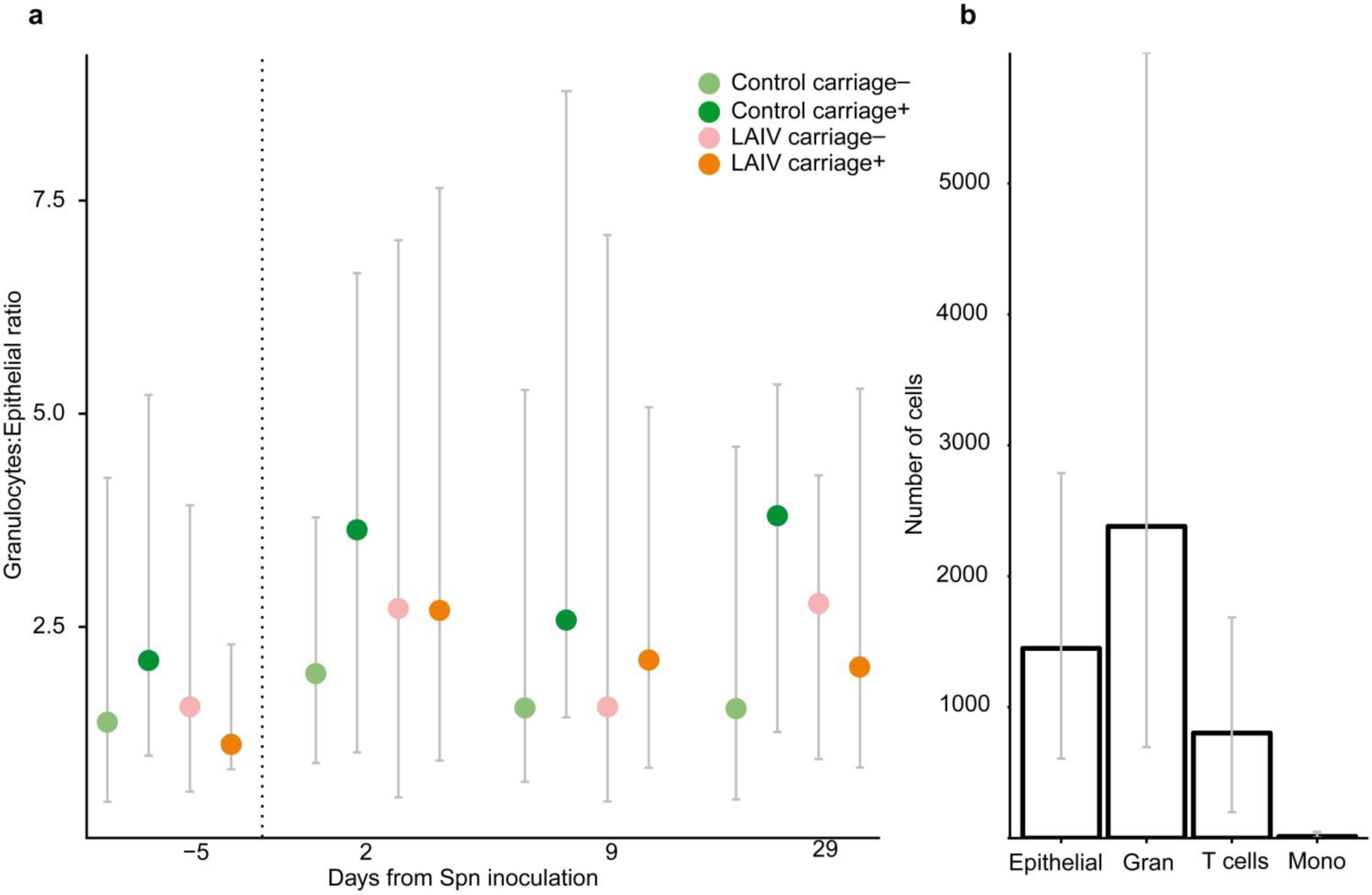

Supplementary Figure 3: Nasal granulocyte numbers over time and baseline immune cell composition.
From: Inflammation induced by influenza virus impairs human innate immune control of pneumococcus
(a), Numbers of granulocytes, predominantly neutrophils based on CD16 expression, at the nasal mucosa. Median and interquartile range are shown for cell numbers normalized to numbers of epithelial cells for control carriage+ (n = 24), control carriage– (n = 37), LAIV carriage+ (n = 25) and LAIV carriage– (n = 30) groups. The x axis shows days relative to inoculation. (b), Absolute numbers of cells observed per nasal sample (median and IQR are shown for 117 subjects at baseline).
