Extended Data Fig. 7: . Unsupervised clustering of human peritoneal macrophages based on flow cytometry validates the key macrophage populations.

From: Human serous cavity macrophages and dendritic cells possess counterparts in the mouse with a distinct distribution between species

Extended Data Fig. 7

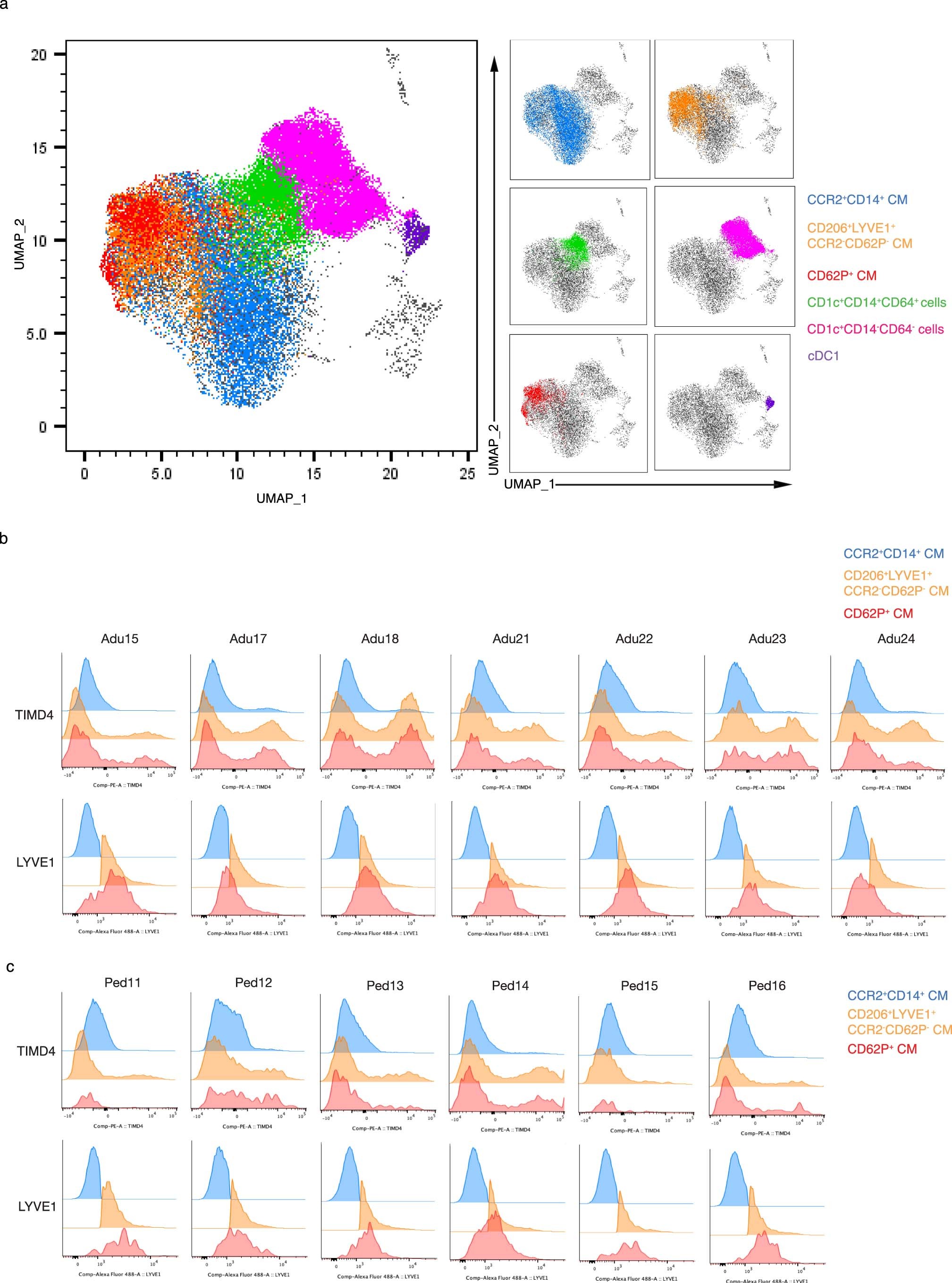

Extended Data Figure 7 (a) Projection of manually gated CD14+ CCR2+ CM (blue), CD206+ LYVE1+ CCR2- CD62P- CM (orange), CD62P+ CM (red), CD1c+ CD64+ MNPs (green), CD1c+ CD64- MNPs (pink) and cDC1 (purple) over UMAP displayed in Fig. 4a. (b-c) Histograms representing TIMD4 and LYVE1 expression in CD14+ CCR2+ (blue), CD206+ CCR2- CD62P- (Orange) and CCR2- CD62P+ (red) CM across all adult (b, n = 7) or pediatric (c, n = 6) samples.
