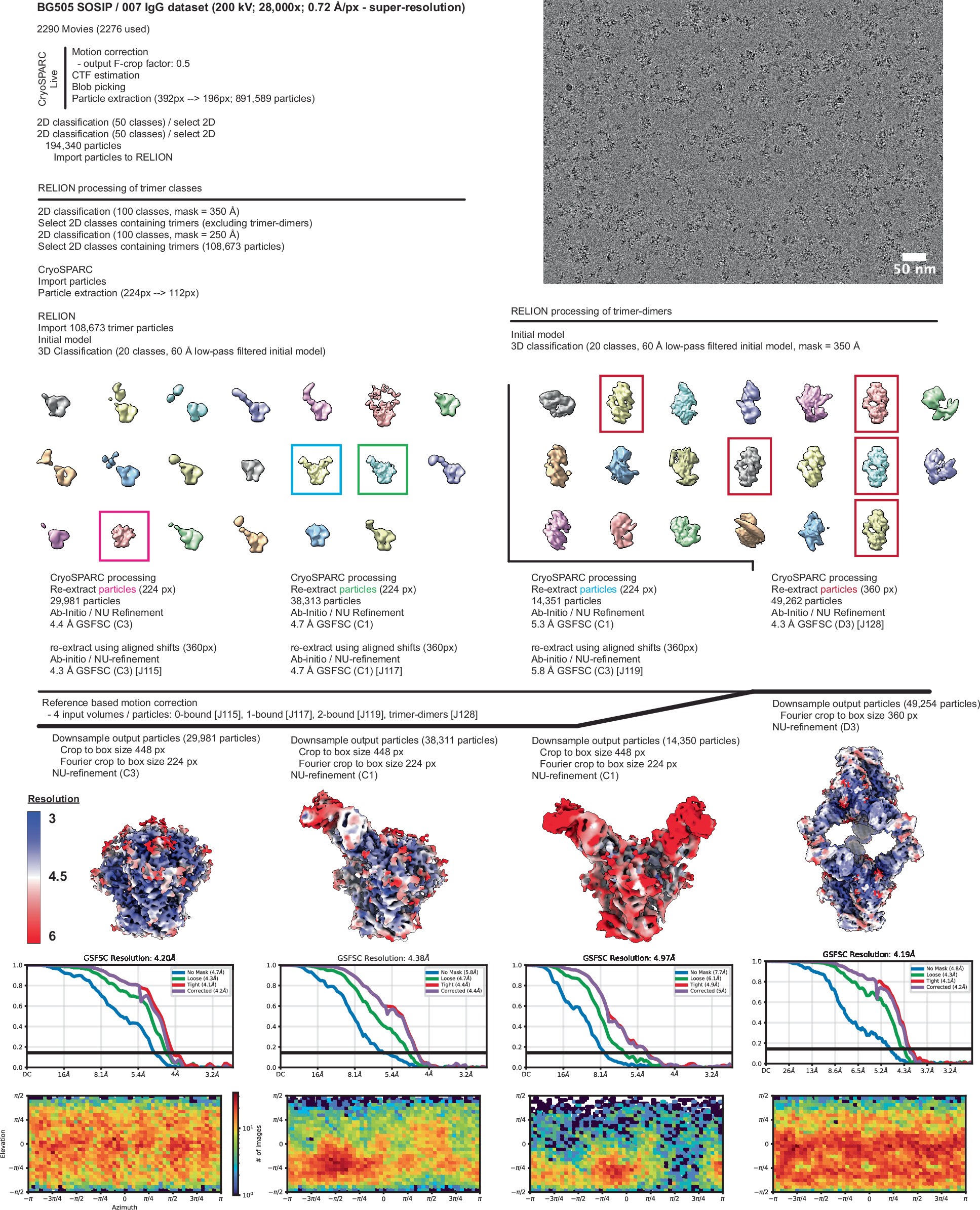

Extended Data Fig. 7: Data collection and processing for 007 IgG-BG505 complexes.

Example micrograph, data processing workflow, final densities colored by local resolution, gold-standard Fourier shell correlations (GSFSC), and particle orientation distribution plots.
