Identification of a potent V3 glycan site broadly neutralizing antibody targeting an N332_gp120 glycan-independent epitope

Abstract

Broadly neutralizing antibodies (bNAbs) against HIV-1 can suppress viremia in vivo and inform vaccine development. Here we characterized 007, a V3 glycan site bNAb exhibiting high levels of antiviral activity against multiclade pseudovirus panels. 007 targets an N332_gp120 glycan-independent V3 epitope, a site of the HIV-1 envelope protein (Env) vulnerability to which only weakly neutralizing antibodies had previously been identified. Functional analyses demonstrated distinct binding and neutralization profiles compared to classical V3 glycan site bNAbs. A 007 Fab-Env cryogenic electron microscopy structure revealed contacts with the V3 ³²⁴GD/NIR³²⁷ motif and interactions with N156_gp120 and N301_gp120 glycans. In contrast to classical V3 bNAbs, 007 binding to Env does not depend on the N332_gp120 glycan, rendering it resistant to common escape mutations. Structures of 007 IgG-Env trimer complexes showed two Env trimers crosslinked by three bivalent IgGs. Bivalent 007 IgG was more potent than monovalent 007 IgG heterodimer, suggesting a role for avidity in potent neutralization. Finally, in HIV-1_ADA-infected humanized mice, 007 caused transient decline of viremia and overcame classical V3 escape mutations, highlighting 007’s potential for HIV-1 prevention, therapy, functional cure and vaccine design.

Main

Broadly neutralizing antibodies (bNAbs) targeting the HIV-1 envelope protein (Env) inform vaccine design, hold potential for therapy and prevention and advance efforts toward achieving a functional cure¹. However, clinical trials have underscored the stringent requirements for enhanced antiviral activity that will be critical to counteract virus Env diversity and emergence of escape. Combined application of bNAbs with complementary neutralization coverage offers an opportunity to overcome these challenges². Thus, the discovery of new bNAbs demonstrating distinct binding modes, neutralizing profiles and viral escape pathways remains essential to facilitate successful clinical application of bNAbs.

On the HIV-1 Env trimer, bNAbs recognize highly conserved epitopes essential for viral entry^3,4,5,6,7,8. One such epitope is a V3 glycan site located at the base of the V3 loop. This epitope includes the N332_gp120 glycan, the ³²⁴GD/NIR³²⁷ motif and N-linked glycans in the vicinity (N133_gp120, N137_gp120, N156_gp120 and N301_gp120)⁹. However, some V3 glycan site bNAbs are also known to exhibit promiscuity in their glycan recognition and/or accommodation, allowing tolerance to shifts in N-glycan composition and configuration. For example, although bNAbs such as 10-1074, BG18, PGT124 and DH270 are highly dependent on the presence of the N332_gp120 glycan, others like PGT121, PGT128 and PGT130 can compensate for the loss of the N332_gp120 glycan by targeting alternative glycans within the high-mannose patch^9,10,11,12. Recently, a neutralizing antibody (nAb), EPTC112, that lacks contacts with the N332_gp120 glycan and instead targets a previously undescribed N332_gp120 glycan-independent V3 epitope extending to glycans of the V1 loop was reported¹³. However, EPTC112 displayed low levels of breadth (23%, 142 virus strains) and potency (GeoMean IC₅₀ against all strains = 2.6 µg ml⁻¹), limiting its applicability for prevention and immunotherapy.

Anti-HIV-1 bNAbs neutralize the virus through multiple mechanisms, including blocking of receptor binding, hindering membrane fusion and accelerating decay of Env trimers³. As with antibodies to other antigens¹⁴, immunoglobulin G (IgG) bivalency could enhance the breadth and potency of HIV-1 bNAbs by permitting the binding of adjacent Envs on the surface of the virus (inter-spike crosslinking) or simultaneously engaging with multiple protomers of the same Env (intra-spike crosslinking)^15,16. However, HIV-1 bNAb IgGs are usually not known to utilize bivalent binding, a likely consequence of the relatively few Envs coating the surface of the virus and the positioning of conserved bNAb epitopes preventing inter- and intra-Env crosslinking, respectively¹⁵. Thus, the discovery of naturally occurring bNAbs that utilize avidity presents an opportunity for optimizing prevention and immunotherapy, as well as for informing vaccine design.

Here, we report on the identification and detailed characterization of the anti-HIV-1 bNAb 007 targeting an N332_gp120 glycan-independent V3 epitope of the Env trimer. Cryogenic electron microscopy (cryo-EM) analyses revealed a distinct binding mode compared to canonical V3 glycan site bNAbs that depends on the N301_gp120 and N156_gp120 glycans. Bivalent 007 IgG was more potent than its monovalent forms, and a structure of 007 IgG in complex with SOSIP trimers revealed a stable dimer of Env trimers linked by IgGs. Moreover, 007 displayed high levels of antiviral activity and exhibited a different neutralization profile compared to V3 reference bNAbs against extended multiclade panels. In HIV-1_ADA-infected humanized mice, 007 achieved transient decline of viremia and overcame V3 escape mutations. In conclusion, our findings suggest the N332_gp120-independent V3 epitope as a viable target for vaccine design and expand the armamentarium of bNAbs available for clinical use.

Results

Identification of bNAb 007 with a distinct binding and neutralizing profile

Donor EN01 was identified as the top elite neutralizer from Mbeya region in southern Tanzania which was part of a multinational cohort of 2,354 people living with HIV (PLWH)¹⁷. Purified serum IgG from donor EN01 displayed the highest levels of breadth (100%) and potency (mean neutralization of 99% at 300 µg ml⁻¹) against the 12-strain global HIV-1 pseudovirus panel^17,18 (Fig. 1a and Supplementary Table 1). Neutralization fingerprint analyses to determine the potential epitope specificity of the serum IgG response were inconclusive due to ambiguous delineation scores^17,19 (Supplementary Table 1). To identify nAbs mediating the broad and potent serum response, we isolated single HIV-1 Env-reactive B cells using a GFP-labeled BG505_SOSIP.664 bait protein²⁰. HIV-1 Env-reactive B cells were isolated at a frequency of 0.46%, and a total of 189 heavy chain and 100 light chain sequences were amplified using optimized PCR primers and protocols²¹ (Extended Data Fig. 1a). Heavy chain sequence analyses revealed a high degree of clonality among the isolated BCR sequences, identifying 23 B cell clones with two or more members. Compared to a human reference memory IgG repertoire dataset²², amplified BG505_SOSIP.664-reactive V_H sequences of donor EN01 displayed higher levels of somatic mutation (median V_H gene germline identity of 85.3% versus 95.3% on nucleotide level), an enrichment of V_H gene segments 1-69 and 4-4, and comparable CDRH3 lengths (Extended Data Fig. 1a, b).

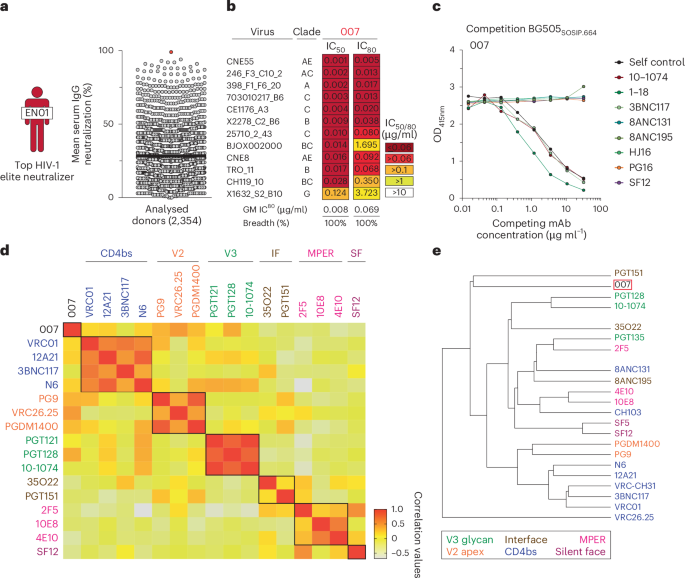

Fig. 1: Identification of bNAb 007 with distinct binding and neutralizing activity.

a, HIV-1 neutralizing serum activity of HIV-1 elite neutralizer EN01 against the global panel. Serum IgG samples were tested in duplicates^17,49. b, Neutralization activity of bNAb 007 against the HIV-1 global pseudovirus panel. Samples were tested in duplicates. c, Interference of 007 with selected reference bNAbs targeting known epitopes on the HIV-1 Env trimer, as determined by competition ELISAs. d, Comparison of the neutralization profile of 007 with reference bNAbs targeting known epitopes against the f61 fingerprinting panel and e, 119 multiclade pseudovirus panel²³. Antibody 007 was tested in duplicates. Neutralization data of reference bNAbs (d and e) were retrieved from CATNAP database.

A total of 48 representative mAbs were produced and evaluated for neutralizing activity at a concentration of 2 µg ml⁻¹ against a panel of six HIV-1 pseudoviruses representing different clades (Extended Data Fig. 1c). Among the screened mAbs, 007 identified from B cell clone 17 neutralized all strains of the screening panel with a mean neutralization of 90% at 2 µg ml⁻¹. Members of this clone derive from V_H4-34*01/02 and V_K1-12*01 gene segments with CDRH3 and CDRL3 lengths of 22 and 9 amino acids (Supplementary Table 2) and belong to the IgG3 subclass. Unless otherwise specified, mAbs were expressed and analyzed as IgG1. V_H gene germline identities from this clonal family ranged from 75.0% to 80.5%, whereas V_K gene germline identities ranged from 76.2% to 85.0% at the nucleotide level (Supplementary Table 2). All members of B cell clone 17 exhibited high antiviral activity against the 12-strain global HIV-1 pseudovirus panel¹⁸, with 007 being the most potent antibody of the clone (breadth = 100%; GeoMean IC₅₀/IC₈₀ = 0.008/0.069 µg ml⁻¹) (Fig. 1b and Supplementary Table 3). Notably, the neutralizing activity of 007 and serum IgG from donor EN01 showed only a moderate correlation across a panel of 40 pseudoviruses (Pearson r = 0.54), indicating that members of the 007 clonal lineage contribute to, but do not fully account for, the donor’s serum neutralizing activity (Extended Data Fig. 1d, e). To map the epitope of 007, we performed competition ELISAs using the BG505_SOSIP.664 Env timer containing the T332N amino acid substitution. We detected interference with the CD4bs bNAbs 1-18 and 3BNC117 as well as with the V3 glycan site bNAb 10-1074 (ref. ¹⁰) (Fig. 1c). However, although 007 competed with 3BNC117 and 1-18 in Env trimer binding, no reduction in neutralizing activity was detected when these antibodies were combined in traditional neutralization assays indicating functional compatibility (Supplementary Table 4). In addition, we determined the neutralizing activity of 007 against BG505_T332N pseudovirus mutants that abrogate the activity of V3 glycan site, CD4bs, V2 apex, MPER, and silent face reference bNAbs. None of the tested signature escape mutations reduced the neutralizing activity of 007 (Supplementary Table 5). To delineate the neutralization profile of 007, we evaluated the antiviral activity against the f61 fingerprint¹⁹ and 119 multiclade pseudovirus panel²³ (Supplementary Tables 6 and 7). Against these panels, the neutralizing activity of 007 did not show a consistent correlation or alignment with reference bNAbs from known epitope classes (Fig. 1d, e). Next, we evaluated the potential reactivity of 007 to self-antigens using a HEp-2 staining assay. Unlike the anti-HIV-1 bNAb 2F5, which exhibits known autoreactivity²⁴, 007 showed no detectable autoreactivity against HEp-2 cells (Extended Data Fig. 2a). However, 007 demonstrated a pharmacokinetic profile less favorable to that of bNAbs 10-1074 and 3BNC117 in human FcRn transgenic mice (B6.Cg-Fcgrt^tm1DcrPrkdc^scidTg(FCGRT)32Dcr/DcrJ, n = 4, all female), which serve as reference for IgG1 half-lives in humans (Extended Data Fig. 2b). These findings indicate that 007 achieves high antiviral activity without evidence of autoreactivity and targets an epitope distinct from previously characterized bNAbs.

007 targets an N332_gp120 glycan-independent V3 epitope on Env

To elucidate the binding mode of 007, we performed single-particle cryo-EM analysis of the antibody Fab in complex with a soluble BG505 Env trimer, which included SOSIP stabilizing mutations²⁰ and an engineered disulfide (I201C_gp120-A433C_gp120) designed to prevent trimer opening (BG505-DS). Fab was added in a greater than threefold molar excess to SOSIP trimer, and Fab-Env complexes were then isolated by size exclusion chromatography (SEC). Structural analysis revealed four trimer classes with 0, 1, 2 or 3 bound Fabs, with the most populated class being a 3.0 Å single Fab-bound trimer (Fig. 2a, Extended Data Fig. 3a and Supplementary Table 8). Comparison of the 007 binding pose to poses of V3 glycan site bNAbs showed a distinct mode of binding, most closely resembling the V3 glycan site bNAb PGT128 and EPTC112 (Fig. 2b and Extended Data Fig. 3b).

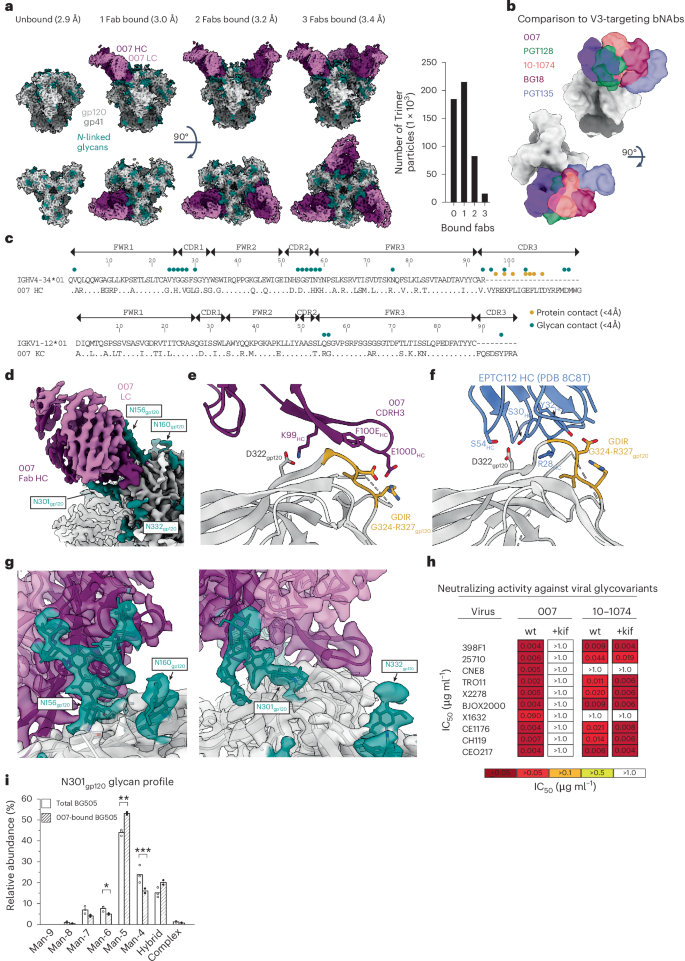

Fig. 2: 007 recognizes an N332_gp120 glycan-independent V3 epitope.

a, Left: overviews of the four structural classes identified of SOSIP trimers with 0-, 1-, 2- or 3-bound 007 Fabs per trimer. Right: the number of particles used in each of the final reconstructions. b, Overlay of 007 with V3-targeting bNAbs (PDB codes 5C7K, 5T3Z, 6CH7, 4JM2). c, Alignment of 007 VH and VL to their predicted germline V gene segments. 007 residues within 4 Å of protein or glycan components on Env are indicated by colored circles. d, Structure overview, highlighting proximal glycans. e, Protein contacts between 007 and Env. f, Protein contacts between EPTC112 and Env (PDB code 8C8T). g, EM density highlighting the N156_gp120 (left) and N301_gp120 (right) glycans. h, Neutralizing activity (IC₅₀) of 007 and 10-1074 against HIV-1 pseudoviruses produced in the presence of kifunensine (kif). wt, wild type. i, Comparison of glycoform abundance between total BG505 SOSIP and 007-bound SOSIP at N301_gp120 determined by LC-MS/MS. Points represent the replicative measurements (three for total BG505 and two for bound BG505), and bar graphs represent the mean of replicative measurements. Differences between groups were evaluated for statistical significance based on P values calculated using Welch’s t-test (two-sided). The P values are *0.04468 (for Man-6), **0.001095 (for Man-5) and ***0.04321 (for Man-4).

The structure revealed 007 is framed by N-linked glycans attached to N156_gp120 and N301_gp120 but does not contact the glycan at N332_gp120, which is important for binding of many V3 glycan bNAbs^12,25,26 (Fig. 2c, d). Antibody contacts with protein portions of Env are mediated exclusively by a 22-residue CDRH3 which extends outward to contact the conserved ³²⁴GD/NIR³²⁷ motif on Env (Fig. 2c, e). Within this region, F100E_HC contacts G324_gp120, and E100D_HC at the tip of the CDRH3 is in close proximity to R327_gp120 (Fig. 2e). Other V3 bNAbs possess negatively charged glutamate residues within their CDRH3s that may form electrostatic contacts with the positively-charged R327_gp120 (E100I_HC in 10-1074 (ref. ²⁵), PGT122 (ref. ²⁶) and PGT124 (ref. ²⁷ and E100G_HC in BG18 (ref. ¹²)). In addition, K99_HC of 007 forms an electrostatic interaction with D322_gp120 (D321(1)_gp120 in some numbering nomenclatures) within V3 (Fig. 2e and Extended Data Fig. 4a), a residue that is a negatively charged Asp or Glu in >70% of sequences (www.hiv.lanl.gov). The CDRH3 is also positioned near the gp120 V1 loop, which is located adjacent to V3, thereby allowing 007 L100A_HC and L100F_HC to contact R151_gp120 within V1 (Extended Data Fig. 4b). Interestingly, in gp120 protomers bound by 007, but not in unbound gp120s, a portion of the V1 loop is disordered (Extended Data Fig. 4c), suggesting that 007 binding destabilizes the V1 loop.

007 targets the V1/V3 epitope, closely resembling that of the recently described bNAb EPTC112 (ref. ¹³) but engages it with a distinct, rotated binding orientation (Extended Data Fig. 3b). Both antibodies depend on the N156_gp120 and N301_gp120 glycans, but not the N332_gp120 glycan, and both contact the ³²⁴GD/NIR³²⁷ motif on Env. However, 007 exhibits greater breadth and is more potent (GeoMean IC₅₀/IC₈₀ = 0.01/0.03 versus 0.32/0.29 µg ml⁻¹, breadth = 66/54% versus 28/14%, 110 or 105 virus strains) than EPTC112 (Supplementary Table 7). Structurally, EPTC112 contacts extend only to D325_gp120 of the ³²⁴GD/NIR³²⁷ motif, whereas 007 interacts with the entirety of the motif (Fig. 2e, f). More extensive contact with the ³²⁴GD/NIR³²⁷ motif and better accommodation of the N156_gp120 and N301_gp120 glycans could contribute to the enhanced neutralization properties of 007 compared with EPTC112.

N-glycans comprise much of the 007 epitope (Fig. 2c, d). The FWRH1/CDRH1 of 007 contains a glycine-rich stretch of amino acids (GVHGVGLGGSGWG; G23_HC – G35_HC), which wrap around the core pentasaccharide of the N156_gp120 glycan (Extended Data Fig. 4d). Five of these glycine residues arose from somatic hypermutation (Fig. 2c), but only one is an improbable mutation, as defined by the ARMADiLLO web server²⁸. A similar mechanism of glycan accommodation is utilized by the VRC01-class CD4-binding site bNAbs, which either acquire deletions or glycine substitutions in CDRL1 to accommodate the N276_gp120 glycan²⁹. In addition, the 007 CDRH2 packs against the N301_gp120 glycan (Extended Data Fig. 4d). Although extensive EM density was observed for both glycans, density corresponding to a core fucose, a component of complex-type glycans, was not observed, and more density was seen for the N156_gp120 glycan (eight monosaccharide subunits modeled) than the N301_gp120 glycan (six monosaccharide subunits modeled) (Fig. 2g). In contrast, for unbound protomers, relatively little EM density was observed at these positions (zero to two monosaccharide subunits modeled), as is typically the case for glycans not stabilized by interactions with an antibody. A caveat of these observations is that single-particle cryo-EM analysis of glycans is limited due to their compositional and conformational heterogeneity.

To evaluate the role of N-glycan processing in 007 neutralization, we expanded our neutralization analysis to include pseudoviruses produced in the presence of kifunensine, an inhibitor that prevents processing of high-mannose N-glycans to complex-type carbohydrates. In contrast to other V3-targeting bNAbs, but in common with EPTC112¹³, 007 did not neutralize kifunensine-treated viruses (Fig. 2h, Supplementary Table 9), implying that the Man-9 (that is, Man9(GlcNAc)2) high-mannose glycan trimming by mannosidase I is required for potent neutralization. We also performed site-specific N-glycan analysis using quantitative mass spectrometry profiling to determine the specific glycoforms enriched in 007-bound BG505 SOSIPs compared to total BG505 SOSIPs. The potential N-linked glycosylation site (PNGS) at N301_gp120 in 007-bound BG505 showed an increase in Man-5 high-mannose glycans compared to the same site in the total BG505 sample (Fig. 2i), consistent with EM density and neutralization data (Fig. 2g, h, Supplementary Table 9). Unambiguous glycoform identification at position N156_gp120 was not possible, however, as both N156_gp120 and N160_gp120 PNGSs resided on the same glycopeptide (Extended Data Fig. 5).

007 bivalency is required for potent neutralization

The observation of sub-stoichiometric trimer binding by a bNAb Fab could result from a weak monovalent binding interaction, which is unexpected for a potent bNAb such as 007. Using a surface plasmon resonance (SPR)-based assay, we confirmed that the binding affinities of 007 Fab were weak for the BG505 (7.5 µM) and BG505-DS (5.7 µM) SOSIPs, in contrast to the V3 bNAb Fabs 10-1074 and PGT135, which exhibited affinities in the low nanomolar range (Extended Data Fig. 6a). These neutralization experiments differ from the structural characterizations and SPR binding experiments, however, in that bivalent IgGs were used for neutralization assays, whereas monovalent Fabs were used for the electron microscopy (EM) and SPR analyses. Bivalent IgG binding could compensate for a weak Fab-antigen binding affinity; however, HIV-1 bNAb IgGs generally do not utilize avidity due to the relatively few Env trimers coating the virus and the positioning of conserved bNAb epitopes on Env, thus limiting inter- and intra-spike crosslinking, respectively¹⁵. To evaluate potential contributions of avidity in neutralization, molar neutralization ratios (MNRs) [IC₅₀ Fab (nM)/IC₅₀ IgG (nM)] can be calculated. We note that viruses with densely packed spikes can exhibit MNRs over 1,000, whereas MNRs for anti-HIV-1 bNAbs tend to be low¹⁵. Notable exceptions include V3 bNAbs PGT128 (ref. ³⁰) and EPTC112 (ref. ¹³), which target similar Env epitopes as 007 (Fig. 2b, f and Extended Data Fig. 3b) and were reported to be ~30- to 2,000-fold more potent when formatted as an IgG than as a Fab against viruses tested. Although the mechanism underlying the enhanced IgG potencies was not reported, it was speculated to result from inter-spike crosslinking between adjacent Env trimers on the virion surface.

To investigate the possibility that 007 IgG utilizes avidity during neutralization of pseudovirions, we repeated in vitro neutralization assays to compare the neutralization potency of the monovalent 007 Fab to bivalent IgG1 and bivalent IgG3 forms of 007. To control for steric effects that may impact IgG neutralization due to the increased mass of an IgG compared to a Fab ( ~ 150 kDa for an IgG1 versus ~50 kDa for a Fab), we also created a bispecific 007 IgG1 in which one Fab arm was replaced with the anti-CD3 antibody OKT3³¹, which does not recognize HIV-1 Env. We found bivalent IgG1 and bivalent IgG3 forms of 007 had similar potencies, with a mean IgG1/IgG3 MNR of 0.82 across viruses tested (Fig. 3a, b and Supplementary Table 10), indicating that the longer IgG3 hinge does not confer improved neutralizing activity. Additionally, the monovalent 007 Fab and monovalent 007/OKT3 bispecific IgG1 had similar potencies, with a mean Fab/bispecific IgG1 MNR of 1.6 across viruses tested. However, against all viruses tested, the bivalent forms of 007 were more potent than monovalent forms, consistent with avidity effects that enhanced neutralization: bispecific IgG1/bivalent IgG1 MNRs ranged from 4.0 to 250 across the 26 viruses for which MNRs were derived (Fig. 3a, b and Supplementary Table 10). Such variation is expected since enhancements due to avidity depend on multiple factors including the dissociation rate of a Fab for an Env antigen¹⁵, which is expected to vary for different viral strains. Notably, viruses that were less potently neutralized by monovalent forms of 007 benefitted more from antibody bivalency than viruses that were more potently neutralized by monovalent forms of 007 (Extended Data Fig. 6b, c).

Fig. 3: Potent neutralizing activity requires 007 bivalency.

007 exhibits avidity. a, Neutralization curves against strain 6041.v3.c23 (left) used to calculated MNRs comparing the IC₅₀ values for the IgG1, IgG3, bispecific IgG1 and Fab forms of 007 (right). b, Molar IC₅₀ values for IgG1, IgG3, bispecific IgG1 and Fab forms of 007 against a panel of HIV-1 strains. Clades are indicated in parentheses. *X1632 is not shown with the remainder of the 12-strain panel due to incomplete pseudovirus neutralization. IC₅₀ values and calculated MNRs are presented in Supplementary Table 10. c, Distance measurements between the C termini of the Fab heavy chains on the experimentally determined 2 Fab-bound trimer structure (left) compared to a structure in which 007 Fab was modeled onto an occluded-open trimer conformation (PDB code 5VN8). A schematic showing a 007 IgG-bound occluded-open trimer is shown for clarity. d, Four structural classes identified after complexing 007 IgG with BG505 SOSIP (left). Schematics are included for clarity. Dashed line (yellow) indicates the distance measurements between C termini of Fab regions in 007 IgG-bound trimer-dimer structure. The number of particles used in each of the final reconstructions (right). The number of particles in the trimer-dimer class were multiplied by two, as each particle contained two SOSIP trimers.

A possible mechanism for IgG avidity effects is through intra-spike crosslinking (that is, both Fab arms on a bivalent IgG engage with epitopes on a trimeric Env), which has been previously inferred from Fab-trimer structures for other viral pathogens. For example, as described for anti-SARS-CoV-2 antibodies^32,33,34, a measured distance <~65 Å between the C termini of adjacent Fab heavy chains raises the possibility for intra-spike crosslinking by an IgG, as this would permit the C termini of two Fab heavy chains to come together to form the N terminus of the IgG Fc region. In our structure of BG505-DS SOSIP with two copies of 007 Fab, the measured distance between the C termini of adjacent Fab heavy chains, ~120 Å, was approximately twofold greater than this distance cutoff (Fig. 3c), suggesting that intra-spike crosslinking by 007 IgG interacting with the closed BG505 Env trimer in our structure would not be possible. However, one must also consider different structural states of the antigen that may be targeted. For example, double electron-electron resonance spectroscopy demonstrated that unliganded SOSIP Env trimers can sample open states that can be recognized by neutralizing antibodies, such as the occluded-open Env trimer state in which the gp120 protomers are outwardly rotated but the V1/V2 loop is not displaced to the sides of the Env trimer³⁵. Docking the 007 Fab-gp120 coordinates onto the gp120s of an occluded-open Env placed the C termini of adjacent Fabs within 65 Å (Fig. 3c). Therefore, one possibility to account for the apparent involvement of avidity effects in 007 interactions with Env trimers is that 007 IgG may intra-spike crosslink to an occluded-open or other altered Env conformation not observed in our 007 Fab-SOSIP structures.

In the context of SARS-CoV-2 spike trimers, structural studies of IgGs interacting with stabilized trimers revealed intra-spike crosslinking^36,37. Thus, in an attempt to investigate bivalent IgG interactions with Env trimer structurally, we incubated BG505 SOSIP with 007 IgG1 and imaged by cryo-EM (Extended Data Fig. 7 and Supplementary Table 8). Rather than observing intra-spike crosslinking, the most populated structural class of 007 IgG-BG505 complexes contained “trimer-dimers” in which two SOSIP Envs were crosslinked by Fabs from three IgG molecules (Fig. 3d). This assembly exhibited D3 symmetry, with the apexes of two Env trimers facing each other and separated by ~70 Å. Density for the Fc region of the IgG was not resolved, an expected consequence of flexibility at the IgG hinge region. However, the distance between the C termini of the closest Fabs on the opposing Env trimers was 13 Å (Fig. 3d), consistent with these densities originating from a single IgG. In addition to the trimer-dimer structural class, trimer classes with 0, 1, or 2 copies of bound 007 IgG were also observed (Fig. 3d). In these structures, the unbound Fab and Fc of each IgG were unresolved, leading to EM densities closely matching the densities of the Fab-SOSIP complexes (Figs. 2a and 3d).

The observed trimer-dimer structure would be compatible with Envs attached to separate virions (Fig. 3d), thus raising the possibility that the 007 IgG neutralizes at least in part by aggregating virions. However, the extent to which enhanced pseudovirus neutralization by 007 IgG can be attributed to viral aggregation, intra-spike crosslinking or another mechanism such as inter-spike crosslinking^13,30 or heteroligation³⁸ or by enhancing gp120 shedding³⁷ warrants further investigation.

007 exhibits high levels of antiviral activity and a complementary neutralization profile to canonical V3-specific bNAbs

To further characterize the neutralizing properties of bNAb 007 in comparison to other V3 loop-targeting bNAbs, we compared their activities against 107 common strains from the 119-strain multiclade pseudovirus panel consisting of difficult-to-neutralize (tier 2 and tier 3) viruses, major genetic HIV-1 subtypes and circulating recombinant forms (CRFs)²³ (Fig. 4a and Supplementary Table 7). Antibodies 10-1074 and PGT121 originate from the same donor and likely represent members of the same antibody lineage. Both were included to provide an internal control for neutralization divergence within a single lineage. Notably, bNAb 007 demonstrated superior breadth and/or potency compared to reference V3 glycan site bNAbs across this panel (GeoMean IC₅₀/IC₈₀ = 0.01/0.03 µg ml⁻¹; breadth = 66%/55%). Moreover, 007 greatly exceeded the neutralizing activity of bNAb EPTC112¹³, a recently identified antibody of the same epitope class. In addition, 007 demonstrated high neutralization activity against a 100-strain clade C panel³⁹ (GeoMean IC₅₀/IC₈₀ = 0.01/0.03 µg ml⁻¹; breadth = 68%/49%) (Extended Data Fig. 8a and Supplementary Table 11). Analyses of the antiviral activity against the 119-strain multiclade panel revealed that 007 displays a distinct neutralization profile compared to V3 glycan site reference bNAbs. Although reference V3 bNAbs only neutralized up to 75% of Clade AC (2 of 3 strains) and 67% of CRF AE viruses (10 of 15 strains), 007 achieved 100% and 80% breadth, respectively (Fig. 4b). Furthermore, unlike other V3 glycan site bNAbs, 007 maintained high neutralization coverage against viruses lacking the N332_gp120 glycan (breadth= 71%) and those with amino acid substitutions in the ³²⁴GD/NIR³²⁷ motif (breadth = 50%) (Fig. 4c). Consistent with structural analyses, the antiviral activity of 007 was dependent on the N156_gp120 and N301_gp120 glycans, with viruses lacking PNGSs at these positions being completely resistant to neutralization by 007 (Fig. 4c). These findings also align with the observed low to moderate correlation between V3 reference bNAbs and EN01 serum IgG neutralizing activity (Extended Data Fig. 1e). Beyond virus neutralizing activity, 007 also demonstrated strong Fc effector functions against Env expressing cells; in both FcγRIIIa signaling and natural killer cell-mediated antibody-dependent cytotoxicity (ADCC) assays (Extended Data Fig. 8b). Altogether, 007 exhibits a potent antiviral profile, via both neutralization and Fc effector function mechanisms.

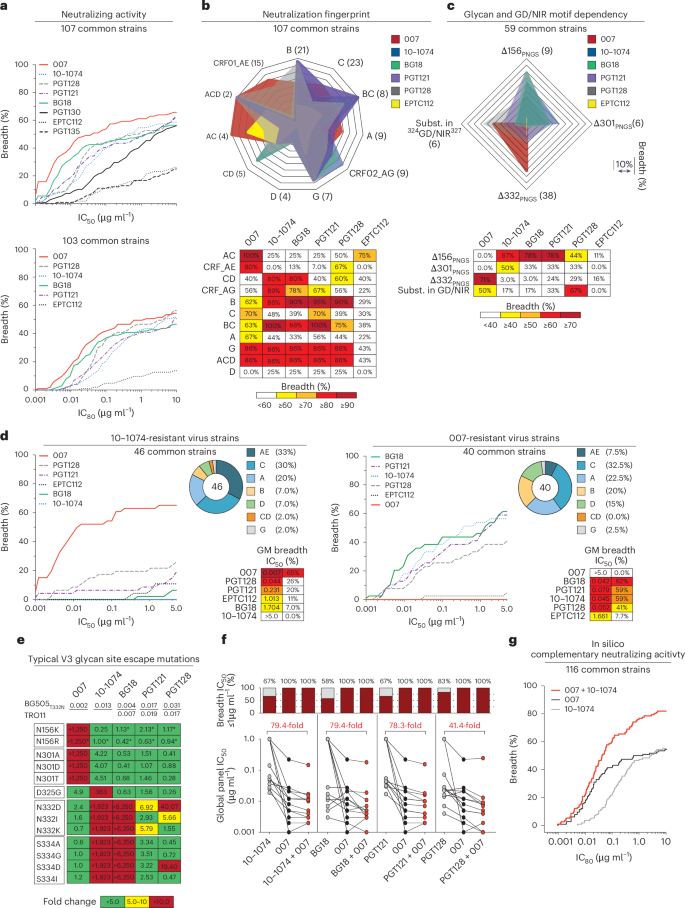

Fig. 4: Distinct neutralization profile and ³²⁴GD/NIR³²⁷ motif dependency of 007.

a, Neutralization breadth (%) and potency (IC₅₀/IC₈₀) of 007 against the 119 multiclade pseudovirus panel²³. Curve graphs illustrate the breadth as a function of IC₅₀ (top) and IC₈₀ (bottom). b, Illustration of the neutralization profile of 007 in comparison to V3 glycan site reference bNAbs against different virus clades of the 119 multiclade panel. Breadth against different HIV-1 clades is illustrated as radar plot (top) and summarized in tabular form (bottom). c, Dependency of 007 and V3 glycan site reference bNAbs on potential N-linked glycosylation sites and the ³²⁴GD/NIR³²⁷ motif. Breadth against different HIV-1 variants with differing in glycosylation patterns and ³²⁴GD/NIR³²⁷ motif sequence is illustrated as radar plot (top) and summarized in tabular form (bottom). Subst., amino acid substitution. d, Complementary neutralizing activity (GeoMean IC₅₀, breadth) of 007 and classical V3 glycan site bNAbs against panels of resistant pseudovirus strains. Pie charts illustrate the clade distribution of resistant pseudovirus strains. e, Neutralizing activity against viral escape mutations located at 007 contact residues (N156 and N301) and within the V3 glycan site of the HIV-1 Env trimer. The top row displays bNAb IC₅₀ values for the BG505_T332N and/or Tro11 pseudovirus, while panels illustrate changes in bNAb sensitivity (IC₅₀ fold change) of virus mutants relative to the wild-type pseudovirus strain. Antibodies were tested in duplicates. Astersiks indicate mutants where the IC₅₀ fold changes were determined in the Tro11 backbone. f, Neutralizing activity of 007 in combination with V3 glycan site bNAbs (mixed at a 1:1 ratio) against the global pseudovirus panel¹⁸. Single and combined mAbs were tested up to a concentration of 1 µg ml⁻¹ (total IgG amount). Red numbers indicate the fold change in IC₅₀s (increase in potency) between the individual mAb and its combination with 007. g, Computational modeling of the predicted neutralizing activity of bNAb 007 in combination with 10-1074 against the 119 multiclade pseudovirus panel²³ using the CombiNaber tool⁵⁰ (http://www.hiv.lanl.gov/content/sequence/COMBINABER/combinaber.html). Breadth (%) was calculated using a cutoff of ≤10 μg ml⁻¹ (a–d,g). Data are shown for identical virus strains across each panel with available reference neutralization data (a–d,g). Reference bNAb data were sourced from the CATNAP database. 10-1074 and PGT121 derive from the same donor and likely share a common lineage.

Given its distinct neutralization profile and glycan dependency, we further analyzed the antiviral activity of 007 against 46 pseudovirus strains selected from the 119-strain multiclade pseudovirus panel²³. This subset represents diverse HIV-1 clades and exhibits full resistance to the classical V3 glycan site bNAb 10-1074. Notably, although V3 reference bNAbs neutralized only 0% to 26% of these virus strains, 007 achieved a breadth of 65% with high potency (GeoMean IC₅₀ = 0.007 µg ml⁻¹) (Fig. 4d). Conversely, classical V3 glycan site bNAbs exhibited up to 62% neutralization breadth against a subset of 40 007-resistant pseudoviruses selected from the 119-strain multiclade panel, indicating functional complementarity (Fig. 4d). To further investigate how known Env escape mutations influence 007’s neutralizing activity, we evaluated the sensitivity of HIV-1_BG505 and HIV-1_Tro11 pseudovirus variants⁴⁰. Amino acid substitution at position D325_gp120 and removal of the PNGS at position N332_gp120 had variable effects on the activity of V3 reference bNAbs (Fig. 4e). Whereas the neutralizing activities of 10-1074 and BG18 were abrogated by all tested mutations at N332_gp120 and S334_gp120, only N332D_gp120 and S334D_gp120 greatly reduced PGT128 activity (Fig. 4e). Furthermore, among the V3 reference bNAbs tested, only 10-1074 was affected by D325G_gp120, whereas PGT121 remained relatively unaffected by all assessed mutations (Fig. 4e). In contrast, 007 neutralizing activity was impaired by amino acid substitutions at position N156_gp120 and N301_gp120, whereas it maintained high antiviral activity against typical V3 glycan site escape variants at positions D325_gp120, N332_gp120 and S334_gp120⁴⁰ (Fig. 4e). Supporting these findings, the combination of 007 with other V3 glycan site bNAbs complemented their individual neutralizing activity, leading to increased breadth and potency (>40-fold) of the combination against the global pseudovirus panel (Fig. 4f and Supplementary Table 12). In addition, in silico modeling of 007 and 10-1074 combination predicted complementary neutralizing activity, enhancing the breadth and potency against the 119 multiclade panel to 84.5% and a GeoMean IC₈₀ of 0.043 µg ml⁻¹ (Fig. 4g). The distinct neutralization profile of 007 establishes it as complementary to V3 glycan site bNAbs, offering broader coverage of viruses that evade neutralization by antibodies of this class.

Deep mutational scanning reveals a distinct escape profile

Deciphering viral escape pathways is essential to inform clinical applicability of bNAbs. To more comprehensively investigate viral escape from bNAb 007, we utilized a lentiviral pseudovirus-based deep mutational scanning (DMS) platform^41,42 using two HIV-1 Envs from distinct clades: TRO.11 (Clade B) and BF520.W14M.C2 (Clade A) (Extended Data Fig. 4a). This platform encompasses nearly all functionally tolerated mutations at each individual Env residue, enabling a systematic evaluation of their effects on bNAb sensitivity and viral cell entry in vitro. DMS revealed a distinct viral escape profile for 007 compared to classical V3-targeting bNAbs. Specifically, mutations at the N332_gp120 glycosylation site in both Env_TRO.11 and Env_BF520 conferred escape from classical V3-targeting bNAbs^10,11. In contrast, 007 remained unaffected by these mutations (Fig. 5a and Extended Data Fig. 8c). Conversely, mutations that disrupted glycosylation at sites N156_gp120, N188a_gp120, and N301_gp120 in Env_TRO.11 reduced 007’s neutralizing activity but did not impair the activity of most other V3-targeting bNAbs. The only exception was PGT128, which was similarly affected by N301_gp120 glycosylation loss (Fig. 5a). Due to functional intolerance of Env_BF520 to mutations at N156_gp120 and N301_gp120, mutations at these sites could not be reliably assessed for this virus strain (Extended Data Fig. 8c).

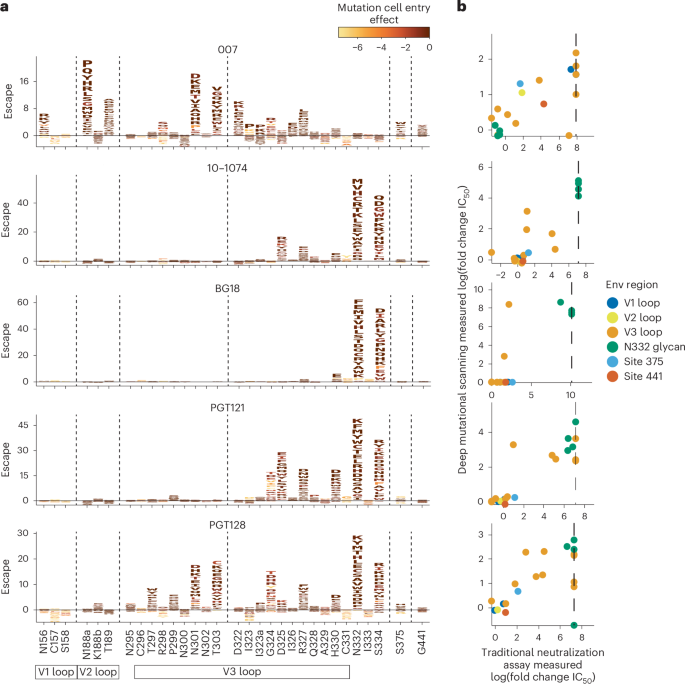

Fig. 5: Deep mutational scanning analyses reveal distinct viral escape from 007.

a, Logo plots showing effects of mutations on neutralization escape in HIV Env_TRO.11 for antibodies 007, 10-1074, BG18, PGT121 and PGT128. The height of each letter represents the effect of that amino acid mutation on antibody neutralization, with positive heights (letters above the zero line) indicating mutations that cause escape, and negative heights (letters below the zero line) indicating mutations that increase neutralization. Letters are colored by the effect of that mutation on Env-mediated cell entry function, with yellow corresponding to reduced cell entry and brown corresponding to neutral effects on cell entry. Only key sites are shown. See https://dms-vep.org/HIV_Envelope_TRO11_DMS_007/htmls/all_antibodies_and_cell_entry_overlaid.html for interactive versions of the escape maps that show all mutations. Escape maps against HIV-1 Env_BF520 are shown in Extended Data Fig. 8c. b, Scatter plots of Env_TRO.11 mutant fold-change IC₅₀s measured by deep mutational scanning versus those measured in traditional neutralization assays. Each scatter plot shows log fold change IC₅₀s for neutralization assays using the antibody labeling the logo plot in the same row. Each point represents the mean of two replicate neutralization curve measurements of one Env_TRO.11 mutant. Env_TRO.11 mutants are colored by Env region or site. Vertical dotted lines represent the limit of detection of the neutralization assays. See Methods, “Deep mutational scanning data analysis”, for details on how deep mutational scanning measured escape values are converted to deep mutational scanning measured IC₅₀ values. The deep mutational scanning measured effects of mutations on escape from antibody 10-1074 shown in this figure were previously published⁴¹.

In addition to escape due to substitutions in PNGSs, DMS uncovered distinct escape pathways from 007 at non-glycosylated residues in the V3 loop. Although substitutions at Env_TRO.11 residue R327_gp120 facilitated escape from classical V3-targeting bNAbs, 007 was also affected by mutations at Env_TRO.11 residues 322–323_gp120 and Env_BF520 residues 318–320_gp120 (Fig. 5a and Extended Data Fig. 4a). Notably, substitutions introducing positive charges or eliminating negatively charged residues in this region (D322_TRO11K/R or D321_BF520K/H) mediated escape from 007, whereas introducing a negative charge in this region in BF520 (G322_BF520D/E) enhanced neutralizing activity of 007, without impacting the neutralization capacity of other V3-targeting antibodies (Fig. 5a and Extended Data Fig. 8c), further highlighting the importance of the electrostatic interaction between K99₀₀₇ and D322_gp120 observed in the 007 structure with BG505.

To validate the viral escape pathways identified by DMS, we conducted TZM-bl neutralization assays incorporating the identified escape mutations in the HIV-1 Env_TRO.11 background. The results revealed a high concordance between escape profiles identified by DMS and changes in neutralization potency measured in TZM-bl neutralization assays (fold changes in IC₅₀s) (Fig. 5b and Supplementary Table 13). These assays confirmed the pattern of viral escape observed in DMS analyses. Amino acid substitutions in the V1, V2 and V3 loop, but not at the N332_gp120 PNGS, mediated escape from 007, setting this bNAb apart from classical V3-targeting antibodies.

007 suppresses viremia in vivo, and dual targeting of the V3 glycan site affects viral rebound

To investigate the in vivo activity of 007 and evaluate viral escape profiles, we investigated its effects in humanized mice infected with HIV-1_ADA (NOD.Cg-Rag^1tm1momIl2rg^tm1Wjl/SzJ (NRG) mice; n = 33; 19 females, 14 males, aged 6–8 months). Following a loading dose of 1 mg IgG, infected mice were treated with 0.5 mg of either 007 or 10-1074 IgG twice a week for up to 5 weeks (Fig. 6a and Extended Data Fig. 9). PBS-treated mice with matched stem cell donors served as controls, and log₁₀ changes in viremia were normalized to this control group to account for declining viral loads in the PBS-treated animals (Extended Data Fig. 9). Similar to 10-1074 IgG, administration of 007 IgG monotherapy resulted in a rapid decline in viral loads by 0.78 log₁₀ copies ml⁻¹, followed by rebound of viremia within 14 days after treatment initiation (Fig. 6a). To characterize viral escape associated with rebound, we performed single-genome sequencing (SGS) of plasma virus collected 5 weeks after treatment initiation and determined sensitivities to the corresponding bNAb (Fig. 6b and Supplementary Table 14). Viral escape from 10-1074 monotherapy was associated with mutations that abrogated the PNGS at N332_gp120. In contrast, 13 env sequences from four mice receiving 007 monotherapy exhibited mutations at residues 139_gp120, 146_gp120, 303_gp120,322_gp120 and 341_gp120 in the V1/V2 or V3 loop. Of these, only mutations at residues 303_gp120 and 322_gp120 mediated resistance to 007. Notably, all generated escape variants from 10-1074 monotherapy retained in vitro sensitivity to 007 and vice versa (Fig. 6b and Supplementary Table 14). We conclude that bNAb 007 reduces viremia in vivo and exerts a distinct and less restricted selection pressure on HIV-1 compared to 10-1074.

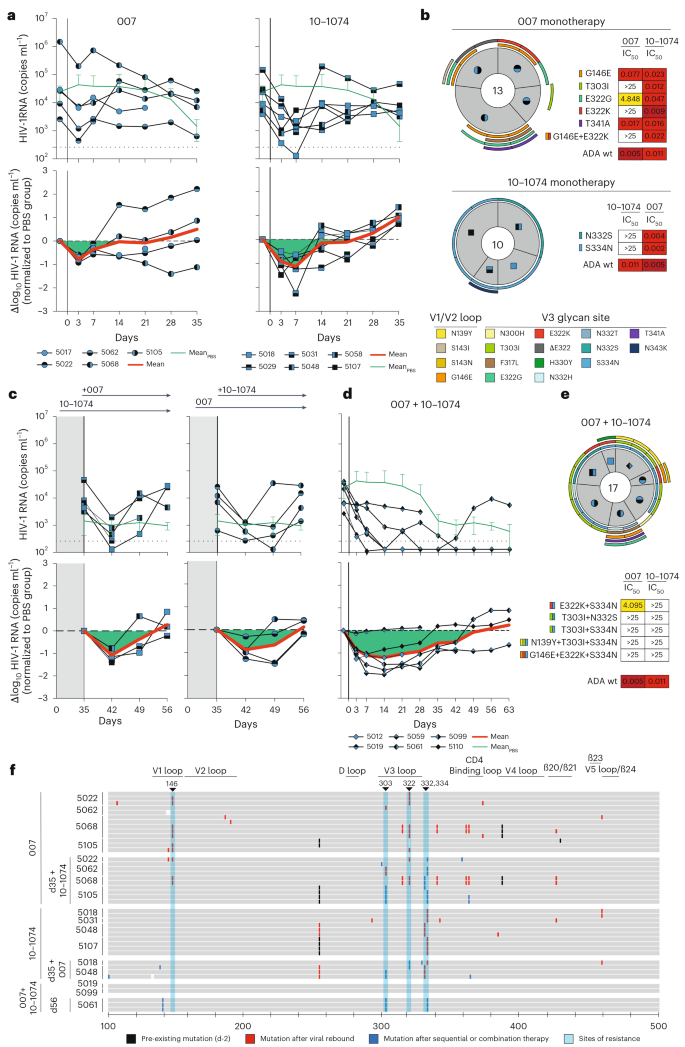

Fig. 6: 007 monotherapy and dual V3 glycan site targeting in vivo.

a, Investigation of the antiviral activity of 10-1074 and 007 monotherapy in HIV-1_ADA-infected humanized mice (NOD.Cg-Rag^1tm1momIl2rg^tm1Wjl/SzJ (NRG) mice). Graphs display the absolute HIV-1 RNA plasma copies ml⁻¹ (top) and relative log₁₀ changes from baseline viral loads (bottom) after initiation of bNAb therapy. Log₁₀ changes were normalized to the viral loads observed in the PBS control group (Extended Data Fig. 9). Dashed lines (top graphs) indicate the lower limit of quantitation (LLQ) of the qPCR assay (260 copies ml⁻¹). Green lines indicate mean viral loads ± s.d. in the PBS control group (n = 5), and red lines display the adjusted average log₁₀ changes from baseline (day −2), corrected for changes in the control group. b, Analyses of single HIV-1 plasma env sequences from HIV-1_ADA-infected humanized mice obtained after viral rebound on day 35 for 007 and 10-1074 monotherapy groups. Total number of analyzed sequences is indicated in the center of each pie chart. Mice are labeled according to icon legends in panel a. Colored bars on the outside of the pie charts indicate mutations in V1/V2 loop and V3 loop. Sensitivity (IC₅₀s) of pseudoviruses generated from SGS-derived sequences against 007 and 10-1074. c, Sequential treatment with 007 or 10-1074 in HIV-1_ADA-infected humanized mice following viral rebound during 007 or 10-1074 monotherapy (from a). This approach included maintaining 007 or 10-1074 monotherapy while integrating 007 or 10-1074 in the treatment regimen. Dashed lines (top graphs) indicate the LLQ of the qPCR assay (260 copies ml⁻¹). Green lines indicate mean viral loads ± s.d. in the PBS control group (n = 3), and red lines display the adjusted average log₁₀ changes from baseline (day 35), corrected for changes in the control group. d, Antiviral activity of 007 and 10-1074 combination therapy in HIV-1_ADA-infected humanized mice. Graphs display the absolute HIV-1 RNA plasma copies ml⁻¹ (top) and relative log₁₀ changes from baseline viral loads (bottom) after initiation of bNAb therapy. Dashed lines (top graphs) indicate the LLQ of the qPCR assay (260 copies ml⁻¹). Green lines indicate mean viral loads ± s.d. in the PBS control group (n = 5), and red lines display the adjusted average log₁₀ changes from baseline (day −2), corrected for changes in the control group. e, Analyses of single HIV-1 plasma env sequences from HIV-1_ADA-infected humanized mice obtained after viral rebound for 007 and 10-1074 combination therapy groups. Total number of analyzed sequences is indicated in the center of each pie chart. Mice are labeled according to icon legends in a. Colored bars on the outside of the pie charts indicate mutations in V1/V2 loop and V3 loop. Sensitivity (IC₅₀s) of pseudoviruses generated from SGS-derived sequences against 007 and 10-1074. f, Alignment of plasma SGS-derived env sequences obtained from individual mice (y axis) after viral rebound following mono- or sequential therapy. Env sequences are shown as horizontal gray bars from residues 100 to 500 relative to HXB2 (x axis). Mutations identified from day −2 are indicated in black, mutations after viral rebound following monotherapy in red (a and b), and following administration of 007 and 10-1074, either sequentially or in combination in blue (c,d and e). Sites at which selected mutations can confer resistance are highlighted by vertical blue bars.

The distinct viral escape profile of 007 led us to explore whether dual targeting the conserved V3 glycan site could force the virus to accumulate mutations in this conserved epitope, potentially reducing viral fitness and prolonging viral suppression. To investigate this, we sequentially administered 007 IgG to animals pretreated with 10-1074 (and vice versa) once their viral loads rebounded to baseline levels due to the emergence of resistant escape variants (1 mg loading dose followed by 0.5 mg twice weekly for each antibody) (Fig. 6c). To maintain selection pressure, the initial antibody therapy (10-1074 or 007) was continued while the complementary antibody was added. Despite circulating viral variants resistant to the initially applied antibody, sequential addition of 007 to 10-1074 treatment (and vice versa) led to a transient suppression of viremia in all treated animals, indicating that 007 can overcome 10-1074 escape in vivo and vice versa (Fig. 6c). Next, we examined whether initiating treatment with a combination of 007 and 10-1074 IgGs would exert greater selection pressure and demonstrate enhanced in vivo efficacy compared to monotherapy or sequential combination therapy (Fig. 6d). Administration of combination therapy resulted in prolonged suppression of viremia (20 days versus 30 days average time to viral rebound, defined as ≥0.5 log₁₀ viral load increase relative to nadir) demonstrating in vivo synergy (Fig. 6d). SGS of plasma rebound viruses from the sequential and initial combination therapy group revealed selection of combined escape mutations in the V1/V2 and V3 loop residues previously identified from the antibody monotherapy groups (N332_gp120, 146_gp120, 303_gp120 or 322_gp120) (Fig. 6e, f and Supplementary Table 15). Our findings demonstrate that antibody 007 can overcome 10-1074-class viral escape in vivo and that a V3 dual-targeting strategy enhances in vivo efficacy.

Discussion

Advances in donor screening and antibody isolation techniques have accelerated the discovery of potent, broadly neutralizing anti-HIV-1 antibodies^1,3. Clinical trials have demonstrated their promise for prevention and treatment of HIV-1 infections and informed vaccine design efforts^1,3. However, similar to monotherapy with antiretroviral agents, administration of single bNAbs results in the rapid selection of resistant viral variants and fails to achieve the requisite antiviral activity for clinical success^2,40,43. Application of bNAb combinations with complementary neutralization coverage have demonstrated enhanced neutralizing activity and long-term control of viremia in preclinical and clinical settings². Similarly, the development of a fully protective vaccine will likely require the induction of bNAbs targeting multiple HIV-1 Env epitopes, emphasizing the need for the identification and characterization of bNAbs directed against novel antigenic sites.

In this study, we characterized the anti-HIV-1 bNAb 007 targeting the V3 glycan site of the Env trimer through a distinct binding mode. The V3 glycan site is centered around the PNGS at residue N332_gp120 and extends to high-mannose and complex-type N-glycans at positions N156_gp120, N295_gp120, N301_gp120, N339_gp120, N386_gp120 and N392_gp120 as well as the underlying protein surface⁹. bNAb lineages directed against the V3 glycan site recognize the ³²⁴GD/NIR³²⁷ protein motif, exhibiting variability in N-glycan accommodation and binding angles of approach^10,11,30. Unlike classical V3 glycan site bNAbs^10,11,40, 007 does not require the N332_gp120 glycan for binding. Instead, it interacts primarily with glycans at positions N156_gp120 and N301_gp120. In terms of glycan dependency, 007 shares similarities with the recently identified nAb EPTC112¹³. However, 007 differs in its CDRH3-mediated mode of binding, more pronounced interactions with the ³²⁴GD/NIR³²⁷ protein motif, and, most importantly, its superior antiviral activity (66% versus 28% breadth; GeoMean IC₅₀ = 0.01 µg ml⁻¹ versus 0.32 µg ml⁻¹; cutoff ≤10 µg ml⁻¹; 107 strains). The enhanced neutralizing activity of 007 is an important consideration for the potential utility of this epitope for vaccine design, therapy and/or prevention.

The V3 glycan site represents a prime target for vaccine design^3,44, as bNAb responses directed against the N332_gp120-supersite are among the most frequently elicited in individuals infected with HIV-1 (ref. ⁴⁵). Moreover, the diverse binding poses, varying glycan dependencies, distinct antibody gene usage and the moderate level of somatic hypermutation observed in some V3-targeting bNAbs further underscore the potential of the V3 glycan site as a favorable target for immunogen design^44,46. Whereas current immunization strategies seek to elicit N332_gp120 glycan-specific antibody responses^3,44,46, the N332_gp120-independent V3 epitope has not been considered. In this context, 007 represents a promising avenue for vaccine development due to its enhanced antiviral activity and sequence features. Similar to the V3 bNAb BG18, a target of vaccine design⁴⁶, 007 exhibits a shorter CDRH3 compared to other characterized V3-targeting bNAbs and lacks insertions or deletions in both its heavy and light chains⁴⁶. These features may enhance the feasibility of eliciting 007-like bNAbs by vaccination. However, the high degree of somatic hypermutation in 007 could pose a challenge for inducing similar bNAbs via vaccination, necessitating germline reversion studies to determine whether minimally mutated variants retain antiviral activity⁴⁶.

Due to its distinct epitope and neutralization profile, 007 represents a promising potential candidate for therapy, functional cure, and prevention strategies involving passive administration of bNAb combinations. This is of particular interest in regions of the world with a high prevalence of CRF01 AE viruses that represent a coverage gap of V3 glycan site bNAbs due to the lack of the N332_gp120 glycan⁴⁷. Indeed, 007 retains high levels of antiviral activity against CRF AE and AC viruses and could efficiently substitute classical V3 glycan site bNAbs in combination regimens considered for these regions. The distinct V3-binding mode and escape profile of 007 have important clinical implications, as they contribute to 007’s potential to effectively complement other V3 glycan site bNAbs, which, despite their high potency, often exhibit limited breadth^10,11. The ability of 007 to overcome 10-1074 escape both in vitro and in vivo, along with its predicted combined breadth of 84.5% in combination with 10-1074, highlight new opportunities for bNAb combination strategies, including dual targeting of the V3 glycan site to enhance breadth, potency and selection pressure on this conserved epitope. With regard to accelerated clearance of 007 in huFcRn mice compared to clinically evaluated bNAbs, future pharmacokinetic analyses will be important to optimize dosing strategies for clinical application.

Structural analysis of the 007 Fab in complex with a SOSIP Env trimer revealed sub-stoichiometric Fab binding, a surprising finding for a potent bNAb. Interestingly, EPTC112, which recognizes a similar epitope, also lacked full Fab occupancy in its structure, with only two Fabs per trimer modeled¹³. Similar to results with EPTC112¹³, in vitro neutralization assays for 007 demonstrated IgG bivalency enhanced neutralization potencies. Based on our 007 Fab-SOSIP structures, we hypothesized that intra-spike bivalent IgG binding could occur on open forms of an Env trimer. However, when SOSIP-IgG complexes were analyzed by cryo-EM, a trimer-dimer of closed Env-IgG complexes was observed, a configuration that could occur if IgGs link Envs trimers on two separate virions. Analogous structures linking two SARS-CoV-2 spike trimers by IgGs were postulated to enhance neutralization by aggregating virions¹⁴, and cryo-electron tomography of nAbs incubated with SARS-CoV-2 demonstrated inter-virion bivalent binding of IgGs⁴⁸. The SOSIP Env trimers we used for structure determinations contained specific mutations (I559P_gp41, A501C_gp120 T605C_gp41) that decrease the sampling of alternative Env conformations, whereas neutralization assays use membrane-bound Env trimers lacking these mutations. Further studies of 007 IgG in complex with HIV-1 virions or virus-like particles displaying native Env trimers will be required to elucidate its mechanism of bivalent neutralization. In summary, the favorable neutralization properties and distinct viral escape profile position 007 as a promising investigational candidate for HIV-1 therapy, functional cure, and prevention. Our findings further emphasize the N332_gp120 glycan-independent V3 epitope as a compelling target for vaccine development.

Methods

Study participants and collection of clinical samples

Large blood draws and leukapheresis samples were collected in accordance with protocols reviewed and approved by the Institutional Review Board of the University of Cologne (study protocols 13-364 and 16-054) and local institutional review boards. Study participants were recruited from private practices and/or hospitals in Germany (Cologne, Essen and Frankfurt), Cameroon (Yaoundé), Nepal (Kathmandu) and Tanzania (Mbeya), and all participants provided written informed consent. Compensation was provided in line with institutional and ethical guidelines to reimburse time and expenses without exerting undue influence. A total of 2,354 serum samples were screened for anti-HIV-1 neutralizing activity to identify HIV-1 elite neutralizers¹⁷. Study individual EN01 was selected for a large blood draw and subsequent B cell isolation. Biosample collection was conducted irrespective of sex/gender, which was not a study design criterion. Clinical information was obtained from medical records.

Cell lines

HEK293T cells (American Type Culture Collection, #CRL-3216) were cultured in DMEM (Thermo Fisher Scientific) supplemented with 10% fetal bovine serum (FBS; Sigma-Aldrich), 1x antibiotic-antimycotic (Thermo Fisher Scientific), 1 mM sodium pyruvate (Gibco) and 2 mM L-glutamine (Gibco) at 37 °C in an atmosphere containing 5% CO₂. HEK293-6E cells (National Research Council of Canada, Cat. No. NR16-179/2017E) were grown in FreeStyle 293 Expression Medium (Life Technologies) supplemented with 0.2% penicillin/streptomycin and maintained under constant agitation at 90 to 120 rpm at 37 °C and 6% CO₂. TZM-bl cells (NIH AIDS Reagent Program, #ARP5011) were cultured in DMEM supplemented with 10% FBS, 1 mM sodium pyruvate, 2 mM L-glutamine 50 µg ml⁻¹ gentamicin (Merck), and 25 mM HEPES (Millipore) at 37 °C in 5% CO2. All three cell lines (HEK293T, HEK293-6E and TZM-bl) were of female origin and were not specifically authenticated.

Mouse models

NOD.Cg-Rag^1tm1momIl2rg^tm1Wjl/SzJ (NRG) mice (n = 33; 19 females, 14 males, aged 6–8 months) were acquired from The Jackson Laboratory and subsequently bred and housed within the Decentralized Animal Husbandry Network (Dezentrales Tierhaltungsnetzwerk) at the University of Cologne. Mice were maintained under specific pathogen-free conditions with a 12-h light/dark cycle at 20–22 °C and 30% to 60% humidity. Breeding mice were provided ssniff 1124 breeding feed, whereas experimental mice received ssniff 1543 maintenance feed. The generation of humanized mice followed an established protocol, with slight modifications^51,52. Human CD34⁺ hematopoietic stem cells were isolated from umbilical cord blood and placental tissue through immunomagnetic separation using CD34 microbeads (Miltenyi Biotec). The collection of these tissue sources was conducted with prior written informed consent, following protocols approved by the Institutional Review Board of the University of Cologne (16-110) and the Ethics Committee of the Medical Association of North Rhine (2018382). Within 5 days after birth, NRG mice received sublethal irradiation, after which human CD34⁺ stem cells were administered via intrahepatic injection 4 to 6 h later. The engraftment and humanization efficiency were assessed 12 weeks after injection using FACS to detect peripheral blood mononuclear cells (PBMCs) in circulation⁵¹. All animal experiments were performed in compliance with ethical regulations and approved by the State Agency for Nature, Environmental Protection, and Consumer Protection of North Rhine-Westphalia (LANUV).

PBMCs and plasma isolation

PBMCs were isolated from large-volume blood samples using density gradient centrifugation with Histopaque separation medium (Sigma-Aldrich) and Leucosep cell tubes (Greiner Bio-One), following the manufacturer’s instructions. The purified PBMCs were cryopreserved at −150 °C in a freezing medium composed of 90% FBS and 10% dimethylsulfoxide until further use. Plasma samples were collected separately and stored at −80 °C for subsequent analyses.

Isolation of single HIV-1-reactive B cells

The isolation of single antigen-reactive B cells was carried out following previously established methods^21,53. CD19⁺ B cells were selectively enriched from PBMCs using immunomagnetic separation with CD19 microbeads (Miltenyi Biotec) according to the manufacturer’s protocol. Isolated CD19⁺ B cells were subsequently stained on ice for 20 min with 4′,6-diamidino-2-phenylindole (DAPI; Thermo Fisher Scientific), anti-human CD20-Alexa Fluor 700 (BD), anti-human IgG-APC (BD) and GFP-labeled BG505_SOSIP.664⁵⁴. Following staining, DAPI⁻ CD20⁺ HIV-1 Env-reactive IgG⁺ single cells were sorted into 96-well plates using a FACSAria Fusion cell sorter (Becton Dickinson). Each well was preloaded with 4 µl of sorting buffer containing 0.5× PBS, 0.5 U µl⁻¹ RNAsin (Promega), 0.5 U µl⁻¹ RNaseOut (Thermo Fisher Scientific), and 10 mM dithiothreitol (DTT; Thermo Fisher Scientific). The plates were immediately cryopreserved at -80 °C following cell sorting.

Amplification and analysis of heavy and light chain V gene sequences

Antibody heavy and light chain amplification from single cells was primarily conducted as described in prior studies^21,55,56. Reverse transcription was carried out using Random Hexamers (Invitrogen) and Superscript IV (Thermo Fisher Scientific) in the presence of RNase inhibitors RNaseOUT (Thermo Fisher Scientific) and RNasin (Promega) to preserve RNA integrity. The synthesized cDNA was subsequently used for the amplification of immunoglobulin heavy and light chains using PlatinumTaq HotStart polymerase (Thermo Fisher Scientific), supplemented with 6% KB extender and gene-specific primer mixes targeting V gene regions. A semi-nested PCR strategy was applied with optimized V gene-specific primer mixes⁵⁷ to improve amplification efficiency^21,55,56,57. The resulting PCR products were evaluated via gel electrophoresis to confirm expected fragment sizes before undergoing Sanger sequencing. Raw sequence processing, annotation and clonal assignment was performed with the Antibody Repertoire Toolkit (AbRAT)⁵⁸ using default settings. In brief, chromatograms were filtered to only retain sequences with a mean Phred quality score of at least 28 and a minimum read length of 240 nt. Variable region annotation, spanning from FWR1 to the end of the J gene segment, were annotated based on IgBLAST⁵⁹. Nucleotide positions within the variable region exhibiting Phred scores below 16 were masked, and sequences containing more than 15 masked bases, premature stop codons or frameshifts were excluded from downstream analyses.

For clonal lineage assignment, productive heavy chain sequences were grouped by identical V_H/J_H gene usage and clustered with AbRATs “Iterative Greedy CDR3 Clustering”-algorithm that is based on the pairwise Levenshtein distance between CDRH3s. Clonal clusters were defined by initiating the grouping process from a randomly selected sequence, with membership requiring a minimum of 75% CDRH3 amino acid identity (relative to the shortest sequence). To enhance classification accuracy, 100 iterations of randomization and clonal assignment were performed, with the configuration yielding the lowest number of unassigned sequences chosen for subsequent analysis. All assigned clone groups were manually validated by investigators, incorporating shared somatic mutations and light chain pairing information to ensure consistency in lineage identification.

Cloning and production of monoclonal antibodies

The heavy and light chain V gene regions of mAbs were synthesized as eBlocks gene fragments (IDT), incorporating complementary overhangs pre-configured for cloning into expression vectors (IgG1, AbVec2.0-IGHG1, Addgene accession #80795; IgG3, AbVec2.0-IGHG3, Addgene accession #99577; Igλ, AbVec1.1-IGLC2-XhoI, Addgene accession #99575; Igκ, AbVec1.1-IGKC, Addgene accession #80796). Cloning was performed using sequence- and ligation-independent cloning with T4 DNA polymerase (New England Biolabs) and chemically competent Escherichia coli DH5α, following established protocols^{21,53,55,56,60}. Positive transformants were identified through Sanger sequencing, after which confirmed bacterial colonies were expanded in LB medium. Plasmid DNA was subsequently extracted using the NucleoBond Xtra Midi kit (Macherey-Nagel).

MAbs were generated by co-transfecting HEK293-6E cells (0.8 × 10⁶ cells in 50 ml) with heavy chain (IgG1) and light chain (Igλ or Igκ) expression plasmids using PEI (Sigma-Aldrich) as the transfection reagent. Cells were maintained at 37 °C with 5% CO₂ in FreeStyle 293 Expression Medium (Thermo Fisher Scientific) supplemented with 0.2% penicillin/streptomycin under continuous agitation at 120 rpm. Culture supernatants were harvested 7 days after transfection via centrifugation and incubated overnight at 4 °C with Protein G-coupled beads (GE Life Sciences). The beads were subsequently transferred to chromatography columns (Bio-Rad), washed with DPBS (Thermo Fisher Scientific), and antibodies were eluted using 0.1 M glycine (pH 3.0) into 1 M Tris (pH 8.0) to neutralize acidity. A final buffer exchange to PBS was performed using 30 K Amicon spin membranes (Merck Millipore). Antibody concentrations were determined via UV spectrophotometry using a Nanodrop system (Thermo Fisher Scientific). All anti-HIV-1 bNAbs reference antibodies were functionally validated through neutralization assays against the global HIV-1 pseudovirus panel. The resulting IC₅₀ and IC₈₀ values for each antibody were compared to historical data available in the CATNAP database. Only those antibodies exhibiting less than a threefold deviation in IC₅₀/IC₈₀ values relative to the reference data were included in subsequent functional analyses.

007 and 10-1074 IgGs used for structural studies, mass spectrometry, and molar neutralization ratio assays were expressed via transient co-transfection of Expi293F cells with heavy and light chain plasmids. IgG1 antibodies were purified from cell culture supernatant using MabSelect SuRe (Cytiva), concentrated, and SEC purified on a Superdex 200 column (Cytiva). 007 IgG3 was purified by diluting the Expi293F cell culture supernatant 5-fold in PBS (pH 7.0) and loading over a HiTrap Protein G HP column (Cytiva). The column was washed in PBS (pH 7.0) and IgG3 was eluted in 0.1 M glycine, 150 mM NaCl (pH 2.7) into 2 M Tris (pH 8.0). The IgG3 sample was then concentrated and SEC purified on a Superdex 200 column (Cytiva). SEC fractions corresponding to IgG were combined and concentrated.

To produce Fabs, the heavy chain variable region of 007 was subcloned into a mammalian expression vector containing the CH1 domain and a C-terminal 6xHis tag. 10-1074 plasmids were cloned as previously described²⁵. Fab heavy and light chain plasmids were used to transiently co-transfect Expi293F cells (Thermo Fisher Scientific) and Fabs were purified from culture supernatant by immobilized metal affinity chromatography (IMAC) using a HisTrap HP column (Cytiva). Fabs were concentrated and buffer exchanged into TBS (20 mM Tris pH 8.0, 150 mM NaCl) using Amicon 10 kDa spin concentrators (Millipore) and further purified by SEC on a Superdex 200 column (Cytiva) equilibrated with TBS. SEC fractions corresponding to Fab were combined and concentrated.

To produce bispecific IgGs comprising a 007 arm and an anti-CD3 OKT3 arm³¹, mutations were introduced into the respective IgG1-LS⁶¹ constant regions (E357Q and S364K in 007_HC and Q295E, L368D, K370S, N384D, Q418E, N421D in OKT3_HC) to promote heavy chain heterodimerization and facilitate downstream purification⁶², and the CH1 and CL domains of the OKT3 antibody were domain swapped to promote correct heavy and light chain pairing of both Fab arms⁶³. Heavy and light chain plasmids were mixed in equal amounts (50 µg of each of the four plasmids per 200 ml transfection culture) and used to transiently co-transfect Expi293F cells (Thermo Fisher Scientific). IgGs were purified from cell culture supernatant using a MabSelect SuRe (Cytiva) affinity column and were concentrated and buffer exchanged into 50 mM Tris, pH 8.7 using 10 kDa Amicon spin concentrators (Millipore). Bispecific IgGs were purified by anion exchange chromatography using a HiTrap Q column (Cytiva) and eluted with a NaCl gradient. Fractions corresponding to the bispecific IgG were combined and concentrated before SEC purification using a Superdex 200 column (Cytiva) equilibrated in TBS.

Expression and purification of BG505 SOSIP trimers

BG505 (ref. ²⁰) and BG505-DS^64,65 SOSIPs used for cryo-EM, mass spectrometry and SPR experiments were expressed via transient co-transfection of Expi293F cells with a plasmid encoding soluble furin. Briefly, SOSIPs were purified from cell culture supernatant by either PGT145 or 2G12 immunoaffinity chromatography, dialyzed in TBS, concentrated to <2 ml and purified by SEC on a Superose 6 Increase column (Cytiva). SEC fractions corresponding to trimeric SOSIPs were combined and concentrated.

Quantification of unpurified mAbs from cell supernatants by human IgG capture ELISA

A human IgG capture ELISA was employed to measure antibody concentrations in unpurified supernatants from transfected HEK293-6E cells, with slight modifications to established protocols²¹. ELISA plates (Greiner Bio-One) were coated with 2.5 µg ml⁻¹ polyclonal goat anti-human IgG (Jackson ImmunoResearch) in PBS and incubated for at least 45 min at 37 °C or alternatively overnight at 4 °C. Following the coating step, plates were blocked for 60 min at room temperature (RT) with a blocking buffer (BB) composed of PBS supplemented with 5% nonfat dry milk powder (Carl Roth, T145.2). Supernatants from transfected HEK293-6E cells were diluted 1:20 in BB before analysis, while a human myeloma IgG1 kappa standard (Sigma-Aldrich) was prepared at an initial concentration of 4 µg ml⁻¹ in BB. Both samples and standards were subjected to serial 1:3 dilutions in BB and incubated for 45 min at RT. Detection was performed using an horseradish peroxidase-conjugated anti-human IgG antibody (Southern Biotech 2040-05) diluted 1:2,500 in BB. Colorimetric development was initiated by the addition of ABTS substrate (Thermo Fisher Scientific, 002024), and absorbance was measured at 415 nm and 695 nm using a microplate reader (Tecan). Antibody concentrations in the supernatants were calculated by interpolation from the human IgG1 standard curve.

Generation of HIV-1 pseudoviruses

HIV-1 pseudoviruses were produced in HEK293T cells by co-transfection with pSG3∆env (NIBSC, #2003) and the respective HIV-1 Env plasmids as previously described^19,23,39,66. A synthetic HIV-1_ADA Env plasmid was obtained from Twist Bioscience for the production of HIV-1_ADA pseudoviruses containing point mutations identified through in vivo single-genome sequencing (SGS) analysis. In HIV-1 BG505_T332N and Tro11 site-specific mutations were introduced using the Q5 Site-Directed Mutagenesis Kit (New England Biolabs) according to the manufacturer’s instructions. Kifunensine-treated pseudoviruses were produced under presence of 5 µg ml⁻¹ Kifunensine. Supernatants containing Kifunensine-treated pseudoviruses were harvested 3 days after transfection and stored at −80 °C.

Generation of mutant HIV-1 pseudoviruses

Mutant variants of HIV-1 pseudoviruses were generated by introducing site-specific mutations into gp160 expression plasmids. Point mutations were incorporated using the Q5 Site-Directed Mutagenesis Kit (New England Biolabs) following the manufacturer’s protocol. The resulting mutant plasmids were subsequently used for pseudovirus production, following the protocol as described above for wild-type pseudoviruses⁶⁶.

Determination of neutralizing activity by luciferase-based TZM-bl assays

Neutralization assays were performed to determine the IC₅₀ and IC₈₀ values of purified mAbs and to assess neutralizing activity in unpurified HEK293-6E cell culture supernatants. These assays were performed with slight modifications to previously described protocols^66,67,68. Purified mAbs, serum IgGs, or HEK293-6E cell culture supernatants were preincubated with HIV-1 pseudovirus strains for 1 h at 37 °C before adding 10⁴ TZM-bl cells per well in a 96-well plate. After 48 h of incubation at 37 °C with 5% CO₂, luciferase activity was measured using a luciferin/lysis buffer. Background RLUs from non-infected control wells were subtracted, and the percentage of neutralization was calculated. For screening unpurified IgGs in HEK293-6E cell supernatants, a final IgG concentration of 2.5 µg ml⁻¹ was used, as determined by human IgG capture ELISA. For large-scale donor screening, IgGs isolated from participant samples were tested against each pseudovirus at a fixed concentration of 300 µg ml⁻¹ in duplicate wells. IC₅₀ and IC₈₀ values for mAbs were determined by performing serial dilutions starting at 10, 25 or 50 µg ml⁻¹. These values, representing the mAb concentration required to reduce viral signal by 50% or 80%, were calculated using a dose-response curve fitted in GraphPad Prism. All IC₅₀ and IC₈₀ determinations were performed in duplicates for each mAb.

MNR assays

Pseudovirus neutralization assays were conducted using TZM-bl reporter cells as above and as previously described^67,68. IgGs, bispecifics, and Fabs were evaluated in duplicate with an eight-point, fivefold dilution series starting at a top concentration of 2, 5, or 50 μg ml⁻¹. 007 antibodies were expressed and purified within 3 weeks of neutralization assays. The dilution at which 50% of virus was neutralized (IC₅₀) is reported in micrograms per milliliter and molar concentrations in Supplementary Table 10. MNRs were calculated as the ratio of molar IC₅₀ values for different formats of the antibody.

Determination of antibody interference by competition ELISAs

To assess antibody interference, mAbs were biotinylated using the EZ-Link Sulfo-NHS-Biotin Kit (Thermo Fisher Scientific) according to the manufacturer’s protocol. Excess biotin was removed by buffer exchange into PBS using Amicon 10 kDa centrifugal filter membranes (Millipore). High-binding ELISA plates (Greiner Bio-One) were coated overnight at 4 °C with an anti-6×His tag antibody (Abcam, 9108) at a final concentration of 2 µg ml⁻¹. After coating, plates were blocked for 1 h at 37 °C with PBS supplemented with 3% bovine serum albumin (BSA; Sigma-Aldrich) to prevent nonspecific binding. BG505_SOSIP.664-His protein was then added at 2 µg ml⁻¹ in PBS and incubated for 1 h at RT to facilitate antigen capture. To evaluate competition, unlabeled antibodies were applied at an initial concentration of 32 µg ml⁻¹ in PBS and subjected to a 1:3 serial dilution. After a 1-h incubation at RT, biotinylated mAbs were introduced at 0.5 µg ml⁻¹ in PBS containing 3% BSA, followed by another 1-h incubation at RT. Detection was performed using peroxidase-conjugated streptavidin (Jackson ImmunoResearch) diluted 1:5,000 in PBS containing 1% BSA and 0.05% Tween-20. Between each incubation step, wells were thoroughly washed with PBS containing 0.05% Tween-20 (Carl Roth) to remove unbound components. Colorimetric detection was achieved using ABTS substrate solution (Thermo Fisher Scientific 002024), and absorbance was measured at 415 nm and 695 nm using a microplate reader (Tecan).

Neutralization fingerprint analyses

The neutralizing activity against the f61 pseudovirus¹⁹ panel was analyzed by calculating Spearman correlation coefficients for each pair of antibodies based on their neutralization data, and visualizing the results as a heatmap (Fig. 1d). Neutralization fingerprint analysis (Fig. 1e) was performed based on a diverse panel of 119 HIV-1 strains for which IC₅₀s were available for all antibodies using an approach described previously ⁶⁹. An antibody-antibody distance matrix was calculated pairwise as the sum over the panel of the absolute differences of the log IC₅₀s. The dendrogram was calculated from this distance matrix using hierarchical clustering by the R command “hclust” using the “average” method.

Assessment of autoreactivity in HEp-2 cell assays

Autoreactivity of mAbs was evaluated using the NOVA Lite HEp-2 ANA Kit (Inova Diagnostics) following the manufacturer’s protocol. Antibodies were applied at a final concentration of 100 µg ml⁻¹ in PBS to HEp-2 cell-coated slides. After incubation and subsequent washing steps, fluorescence imaging was performed using a DMI 6000 B fluorescence microscope (Leica) under standardized conditions: a 3-s exposure time, 100% light intensity and a gain setting of 10. Fluorescent signals were analyzed to determine autoreactivity profiles.

Cryo-EM sample preparation

007 Fab was incubated in a 3.4:1 molar ratio of Fab to BG505-DS SOSIP trimer^64,65 and incubated overnight at room temperature. SOSIP trimers and Fab-SOSIP complexes were purified from unbound Fabs on a Superose 6 10/300 Increase column (Cytiva) operating in TBS and concentrated using a 30 kDa spin concentrator to ~3.4 mg ml⁻¹ immediately before vitrification. 007 IgG1 was added to BG505 SOSIP at a 1:1 molar ratio of IgG to BG505 SOSIP trimer, with a total protein concentration of ~2.6 mg ml⁻¹ and vitrified after incubating for ~38 h at room temperature.

Octyl-maltoside, fluorinated solution (Anatrace) was added to 0.02% (w/v) final concentration for each sample immediately before addition of 3 µl to a Quantifoil R1.2/1.3 Cu 300 mesh grid (Electron Microscopy Sciences) that had been glow discharged for 1 min at 20 mA using a PELCO easiGlow (Ted Pella). Grids were blotted for 3 to 4 s with Whatman No. 1 filter paper and vitrified in liquid ethane using a Mark IV Vitrobot (Thermo Fisher Scientific) operating at 22 °C and 100% humidity.

Cryo-EM data collection and processing

Data for the 007 Fab-SOSIP sample were collected on a 300 keV Titan Krios transmission electron microscope (Thermo Fisher) equipped with a Gatan BioQuantum Energy Filter and a K3 6k x 4k direct electron detector, and data for the 007 IgG1-SOSIP sample were collected on a 200 keV Talos Arctica (Thermo Fisher Scientific) equipped with a Gatan K3 6k x 4k direct electron detector. 40-frame movies were collected in SerialEM⁷⁰. 007 Fab-SOSIP movies were recorded in super-resolution (0.416 Å per pixel) using a 3 × 3 beam image shift pattern with 3 shots per hole and 007 IgG-SOSIP movies were recorded in super-resolution (0.72 Å per pixel) with a 3 × 3 beam image shift pattern and 1 shot per hole.

Data collection and processing details are included in Supplementary Table 8 and Extended Data Figs. 3 and 7. Motion correction, CTF estimation, particle picking and particle extraction were performed in cryoSPARC Live v4 (ref. ⁷¹). Extracted particles were subject to 2D classification in cryoSPARC⁷¹ and particles from select 2D classes processed by 3D classification in RELION v4.0.1 (refs. ^72,73). Particles from select 3D classes were re-extracted in cryoSPARC and subject to ab initio reconstruction and non-uniform refinement^71,74. Particles underwent reference-based motion correction and were subject to a final round of non-uniform refinements⁷⁴.

Model building and refinement

Initial coordinates for the 1 Fab-bound trimer structure were generated by docking individual protein chains from reference structures (PDB 5BZD (V_H), 7PS3 (V_L), and 6UDJ (BG505)) into the corresponding EM density in ChimeraX^75,76. The initial model was sequence corrected in Coot⁷⁷ and underwent iterative rounds of refinement in Phenix⁷⁸ and Coot⁷⁷. Glycans were built in Coot⁷⁹ and glycan geometries evaluated in Privateer⁸⁰. Coordinates for the 1 Fab-bound trimer aided in generating trimer structures with 0, 2 or 3-bound Fabs, as well as the 3 IgG-bound trimer-dimer structure. To facilitate measurements between the C-termini of the Fab heavy chains, the Fab C_HC_L domains from PDB 8UKI were docked into the corresponding densities in the 2 Fab-bound trimer structure and the 3 IgG-bound trimer-dimer structure. Antibodies were numbered according to Kabat.

Structural analyses

Figures were prepared using UCSF ChimeraX v1.9 (refs. ^75,76). 007 Fab-Env interactions were evaluated using the 1 Fab-bound trimer structure. Distance measurements between C termini of Fab HCs were taken from the alpha carbon of R222 in either the 2 Fab-bound trimer structure or the 3 IgG-bound trimer-dimer structure. Coordinates for a 007-bound gp120 were aligned to two gp120 chains in a b12-bound trimer structure (PDB 5VN8)⁸¹ to model the analogous distance on an occluded-open conformation of the trimer. The distance between trimer apexes reported for the trimer-dimer structure was measured between residues N188 on opposing trimers.

SPR

SPR measurements were performed on a Biacore T200 (GE Healthcare) at 25 °C in HBSEP+ (10 mM Hepes, 150 mM NaCl, 3 mM EDTA and 0.005% Tween-20) (GE Healthcare) running buffer. BG505 and BG505-DS SOSIPs were directly immobilized on a CM5 chip (GE Healthcare) to ~500 resonance units using primary amine chemistry. Fab samples were injected over the flow cells at increasing concentrations (threefold dilution series with a top concentration of 10 μM or 1 µM) at a flow rate of 60 μl min⁻¹ for 60 s and allowed to dissociate for 300 s. Regeneration of flow cells was achieved by injecting one pulse of 10 mM glycine pH 2.0 at a flow rate of 90 μl min⁻¹. All samples were performed in duplicate and a representative sensorgram is plotted in Extended Data Fig. 6a. Kinetic constants and affinities were derived using the Biacore T200 Evaluation Software (v2.0) with a 1:1 binding model.

Immunoprecipitation for site-specific N-glycan analyses

To isolate BG505 trimers recognized by 007_IgG (007_IgG-bound BG505), we developed an optimized protocol for immunoprecipitation. Briefly, BG505 and 007_IgG were mixed at a 1:2 (w:w) ratio and incubated overnight at 4 °C in 20 mM sodium phosphate buffer (pH 7.2). 007_IgG-bound BG505 complexes were isolated using affinity chromatography (Protein G Sepharose; GE Healthcare Life Sciences). Protein G Sepharose was equilibrated with 20 mM sodium phosphate buffer (pH 7.2) and incubated overnight at 4 °C with the preincubated mixture of BG505 and 007_IgG. 007_IgG-BG505 complexes captured by Protein G Sepharose were separated from unbound BG505 by centrifugation at 1,000 x g for 3 min, eluted with 0.1 M glycine (pH 2.5) and neutralized with 1 M Tris-HCl (pH 9.0). Samples were then stored at −20 °C.

Enzymatic removal of N-glycans from Env BG505 SOSIP

Total BG505 and 007_IgG-bound BG505 samples were denatured for 10 min at 100 °C in a denaturing buffer provided with peptide N-glycosidase F (PNGase F, Prozyme). After samples were chilled on ice for 5 min, PNGase F was added together with detergent following the manufacturer’s instructions (PNGase F, Prozyme). Samples were then incubated at 37 °C for 30 h.

Isolation of gp120 component chains of BG505 SOSIP for LC-MS

Total BG505 and 007_IgG-bound BG505 samples were separated by SDS-PAGE under reducing conditions on 10% Mini-PROTEAN TGX precast gels (Bio-Rad Laboratory). Gels were briefly washed with water and stained with Bio-safe colloidal Coomassie G-250 Stain (Bio-Rad Laboratories). After destaining, protein bands corresponding to natively glycosylated gp120 (~130 kDa) or samples deglycosylated with PNGase F (~65 kDa) were excised from the gel and stored at −20 °C for LC-MS analyses (Extended Data Fig. 5).

LC-MS and MS/MS analysis of gp120

The excised bands were digested with trypsin (Promega) and extracted from the gel matrix by use of standard in-gel protease digestion methods^82,83. The resulting peptide/glycopeptide mixtures were analytically separated on a self-prepared C18 reversed-phase pulled-tip column using a nano-liquid chromatography (nano-LC) system as previously described^82,83. The eluted glycopeptides were electrosprayed at 2 kV into a dual linear quadrupole ion trap Orbitrap Velos Pro mass spectrometer (Thermo Fisher Scientific). The mass spectrometer was set to switch between a full scan (400 < m/z < 2,000) followed by successive MS/MS (200 < m/z < 2,000) scans of the 10 most abundant precursor ions using the collision-induced dissociation method.

Glycopeptide identification and quantitation

Site-specific N-glycan heterogeneity profiles of gp120 from total BG505 and 007_IgG-bound BG505 samples were determined using a workflow similar to that used before^82,83, which consisted of three main steps.

Step 1. Initial glycopeptide identification

LC-MS/MS data for the deglycosylated gp120 were analyzed using the Single Protein Screening and Quantitation workflow in the Pinnacle software (version 1.0.103 Optys Tech Corporation). Identification of peptides containing specific N-glycosylation sites (NGSs) was achieved with a peptide tolerance of 10 ppm in MS1 and an MS/MS tolerance of 0.7 Da. All peptide assignments were validated by visual inspection of the associated MS1 and MS/MS spectra. An increase of 1 Da in the peptide mass value of the deglycosylated gp120 indicated the presence of N-glycosylation site with an attached glycan in the intact gp120 because PNGase F treatment converted each glycosylated Asn into Asp. Site occupancy was calculated based on the areas under the curve (AUC) for the peptide containing the unmodified Asn and the peptide containing the Asp.

Step 2. Glycopeptide quantitation

To identify the full range of glycan heterogeneity at specific sites, LC-MS/MS data for the intact gp120 were analyzed using the Targeted Quantitation – Label Free DDA workflow in the Pinnacle software. The search was conducted with a 10-ppm mass accuracy of the three most abundant isotopes with a series of custom peptide and glycopeptide workbooks generated for each NGS. To speed up the validation process and reduce the number of false-positive results, the confirmed deglycosylated peptides from Step 1 were used to limit the retention time window search for each glycopeptide. Once the glycopeptides were identified, the AUC from each glycopeptide was expressed as a percent relative abundance of the total sum of all glycoforms for an NGS.

Step 3. Visualization of N-glycan heterogeneity at specific sites

The entire range of glycans at a single site was presented as a stacked bar divided into the relative distributions of the broad N-glycan categories of high-mannose, hybrid, and complex, using the same color scheme as previously described⁸². To better visualize changes in glycoforms between total BG505 and 007_IgG-bound BG505, a side-by-side bar graph was also included which differentiated each high-mannose glycan but kept the hybrid and complex as single groups. Error bars represent the standard deviations of replicate measurements (three for total BG505 and two for 007_IgG-bound BG505). Differences between groups were evaluated for statistical significance based on P values calculated using Welch’s t-test.

Deep mutational scanning

A previously established lentiviral deep mutational scanning platform was utilized to assess the effects of all mutations on HIV Env escape from antibodies^41,42. This system employs barcoded pseudoviruses to facilitate comprehensive mutational analysis. The BF520 Env and TRO.11 Env mutant libraries were generated in prior studies^17,52 and were reused in the present investigation. Detailed descriptions of the construction and composition of these mutant libraries are available in previous reports^41,42. BF520 and TRO.11 Env function of entry into cells and escape from antibody 10-1074 are published in these prior studies^41,42. In this study, the BF520 and TRO.11 Env mutant libraries were employed to map escape from antibodies 007, BG18, PGT121 and PGT128. For each mutant library, a small proportion of VSV-G pseudotyped viruses carrying unique barcodes was introduced as an internal infection control, as these viruses are not susceptible to HIV-1-specific antibodies. Each library was incubated for 1 h with antibodies at concentrations ranging from IC₉₀ to IC₉₉.₉, alongside a control incubation without antibody. TZM-bl cells were then infected with the antibody-treated pseudovirus libraries, and 12 h after infection, unintegrated lentiviral genomes were extracted using a miniprep approach. Variant barcodes were subsequently amplified and sequenced following previously established protocols⁴².

Deep mutational scanning data analysis

Deep mutational scanning data were analyzed using dms-vep-pipeline-3 version 3.20.1. See https://github.com/dms-vep/HIV_Envelope_TRO11_DMS_007 and https://github.com/dms-vep/HIV_Envelope_BF520_DMS_007 for GitHub repositories containing the analyses of the deep mutational scanning data. See https://dms-vep.org/HIV_Envelope_TRO11_DMS_007 and https://dms-vep.org/HIV_Envelope_BF520_DMS_007 for HTML renderings of key analyses, plots and data files produced by the analyses. Effects of mutations on Env function of entry into cells measured in prior studies^41,42 were used to shade the logoplots in Fig. 5 and Extended Data Fig. 8c Illumina sequencing data of variant barcodes from antibody selection experiments were processed following previously established methods⁴². A comprehensive description of sequencing analyses and modeling of mutation effects is provided in Radford et al.⁴², which should be consulted for methodological details. Briefly, the non-neutralized fraction of each barcoded variant was calculated in each antibody selection by comparing the frequency of each barcoded variant to the frequency of the non-neutralized standard viruses between the antibody incubation and mock incubation conditions. The software package polyclonal⁸⁴ version 6.14 was used to model the escape effects of individual mutations for each antibody. In Fig. 5a and Extended Data Fig. 8c the height of each amino acid in each logo plot represents the effect of that individual mutation on escape from that antibody, where taller letters represent more escape. The model of the effects of mutations on escape can also be used to predict the level of neutralization of Env mutants at arbitrary antibody concentrations, which we used to calculate the deep mutational scanning measured log fold change in IC₅₀ values in Fig. 5b.

FcγRIIIa signaling Promega assay

Signaling through FcγR was assessed using an ADCC reporter bioassay from Promega (Promega, G9790 (FcγRIIIa-F), G7010(FcγRIIIa-V)). CHO cells overexpressing HIV JRFL envelope (CHO-HIV JRFL ENV) were used as targets. HIV bnAbs were serially diluted 4-fold and added to target cells, 30 min before addition of Jurkat reporter cells. After overnight incubation at 37°C, luminescence was measured using the Bio-Glo-TM Luciferase Assay Reagent according to the manufacturer’s instructions.

ADCC assay

NK cells were isolated from whole blood using the EasySep Direct Human NK Cell Isolation Kit (StemCell Technologies, #19665) following the manufacturer’s instructions. CHO-HIV JRFL ENV were incubated with titrated HIV bNAbs prior to addition of effector NK cells at 8:1 (FV NK donor) or 9:1 (FF NK donor) in AIM V Medium (Life Technologies, #12055091). Each Ab concentration was tested in duplicate. After 4-h incubation at 37 °C, plate was centrifuged and supernatants transferred to a new plate containing the LDH substrate prepared according to manufacturer’s instructions (Roche, #11644793001 Cytotoxicity Detection Kit (LDH)). Spontaneous release was determined by incubating target cells with medium alone, and maximal lysis by incubation with 1% Triton X-100. Kinetic Absorbance was measured at 492 and 650 nm with a microplate reader, and cytotoxicity was determined using the following equation:

$$\begin{array}{l}{\rm{Percent}}\,{\rm{killing}}\\ =({\rm{experimental}}-{\rm{spontaneous}})/({\rm{maximal}}-{\rm{spontaneous}})\times 100\end{array}$$

Generation of replication-competent HIV-1 virus

Recombinant, replication-competent HIV-1_ADA variant, incorporating the ADA Env within an NL4-3 backbone, was produced by transfecting HEK293T cells using FuGENE 6 Transfection Reagent (Promega). Virus-containing supernatants were harvested at 48 and 72 h after transfection, then aliquoted and stored at −80 °C for subsequent experiments.

HIV-1 infection of humanized mice and viral load quantification

Humanized NRG mice were infected intraperitoneally with replication-competent HIV-1_ADA. At 32 days post-infection, sterile monoclonal antibodies were administered subcutaneously in PBS. A loading dose of 1 mg was initially delivered, followed by maintenance doses of 0.5 mg every 3 to 4 days. To determine viral loads, viral RNA was extracted from EDTA-treated plasma samples using the MinElute Virus Spin Kit (Qiagen), with DNase I treatment (Qiagen) performed on an automated Qiacube system (Qiagen). pol-specific primers 5′-TAATGGCAGCAATTTCACCA-3′ and 5′-GAATGCCAAATTCCTGCTTGA-3′, along with the probe 5′/56-FAM/CCCACCAACARGCRGCCTTAACTG/ZenDQ/, as previously described⁸⁵. qRT-PCR was performed using a QuantStudio 5 instrument (Thermo Fisher Scientific) with the TaqMan RNA-to-CT 1-Step Kit (Thermo Fisher Scientific). Heat-inactivated supernatants of replication-competent HIV-1_YU2 propagated in MOLT-CCR5 cells, were included in each PCR run as a standard for viral load quantification. The viral concentration of this standard was determined using the the Cobas 6800 HIV-1 kit (Roche). The quantification limit for qRT-PCR was established at 260 copies ml⁻¹. To calculate log₁₀ changes in viral load, values below this threshold were assigned a concentration of 260 copies ml⁻¹. For normalization, the mean log₁₀ viral load change of the PBS control group at each corresponding time point was subtracted from the individual log₁₀ viral load changes of the treatment groups.

Single-genome sequencing of plasma HIV-1 env from in vivo experiments

Single-genome sequencing (SGS) of HIV-1 env genes was conducted following previously established protocols⁸⁶. Briefly, viral RNA was extracted from EDTA-treated plasma samples using the MinElute Virus Spin Kit (Qiagen), followed by DNase I treatment (Qiagen) on an automated Qiacube system (Qiagen). Reverse transcription was performed using the antisense primer YB383 (5′-TTTTTTTTTTTTTTTTTTTTTTTTRAAGCAC-3′) and SuperScript IV reverse transcriptase (Thermo Fisher Scientific) according to the manufacturer’s instructions. To degrade residual RNA, the reaction was treated with 0.25 U µl⁻¹ RNase H (Thermo Fisher Scientific) at 37 °C for 20 min. The resulting cDNA encoding HIV-1 Env was subjected to serial dilution before nested PCR amplification using PlatinumTaq Green HotStart polymerase (Thermo Fisher Scientific) with HIV-1_ADA-NL4-3-specific primers. The first-round PCR utilized primers YB383 and YB50 (5′-GGCTTAGGCATCTCCTATGGCAGGAAGAA-3′) with the following thermocycling conditions: an initial denaturation at 94 °C for 2 min, followed by 35 cycles of 94 °C for 30 s, 55 °C for 30 s and 72 °C for 4 min, with a final extension at 72 °C for 15 min. The second-round PCR was performed using 1 µl of the first-round product as the template, with primers YB49 (5′-TAGAAAGAGCAGAAGACAGTGGCAATGA-3′) and YB52 (5′-GGTGTGTAGTTCTGCCAATCAGGGAAGWAGCCTTGTG-3′). The cycling conditions were similar to the first PCR, except the reaction was run for 45 cycles. PCR products from reactions demonstrating an amplification efficiency of less than 30% were selected for Sanger sequencing.

In vivo pharmacokinetic analysis

To determine the half-life of administered antibodies, human FcRn transgenic mice (B6.Cg-Fcgrt^tm1DcrPrkdc^scidTg(FCGRT)32Dcr/DcrJ, Jackson Laboratory; n = 12, all female) (The Jackson Laboratory) were injected intravenously with 0.5 mg sterile antibody in PBS via the tail vein. Human IgG concentrations in serum were quantified using an ELISA assay with slight modifications to previously established methods⁵¹. For quantification, high-binding ELISA plates (Corning) were coated overnight at RT with 2.5 µg ml⁻¹ of anti-human IgG (Jackson ImmunoResearch). Plates were then blocked for 1 h at RT with a blocking buffer containing 2% BSA (Carl Roth), 1 µM EDTA (Thermo Fisher Scientific), and 0.1% Tween-20 (Carl Roth) in PBS to minimize nonspecific binding. A standard curve was generated using human IgG1 kappa purified from myeloma plasma (Sigma-Aldrich) and serially diluted in PBS. Serum or plasma samples, along with standard dilutions, were incubated on the plates for 90 min at RT. This was followed by a 90-minute incubation with horseradish peroxidase-conjugated anti-human IgG (Jackson ImmunoResearch) at a 1:1,000 dilution in blocking buffer. Colorimetric detection was performed using ABTS substrate (Thermo Fisher Scientific), and absorbance was measured at 415 nm using a Tecan microplate reader. Each step included washing with 0.05% Tween-20 in PBS. Baseline serum or plasma samples confirmed the absence of human serum or plasma IgG before antibody injection.

Quantification and statistical analysis

Flow cytometry data were processed and analyzed using FlowJo v10 software. Statistical analyses were conducted using GraphPad Prism (versions 7 and 8), Python (v3.6.8), R (v4.0.0) and Microsoft Excel for Mac (versions 14.7.3 and 16.4.8).

For clonal sequence evaluation, complementarity-determining region 3 of the heavy chain (CDRH3) lengths, V gene usage and germline identity distributions were assessed across all input sequences without additional sequence collapsing.

Use of large language models

ChatGPT (v.4 and v.5) was used for general editorial tasks, including proofreading, grammar correction and text summarization. Scientific content and conclusions are the work of the authors.
