Extended Data Fig. 3: TNF significantly negatively correlates with pO2 in LCAM.

From: A distinct monocyte transcriptional state links systemic immune dysregulation to pulmonary impairment in long COVID

Extended Data Fig. 3

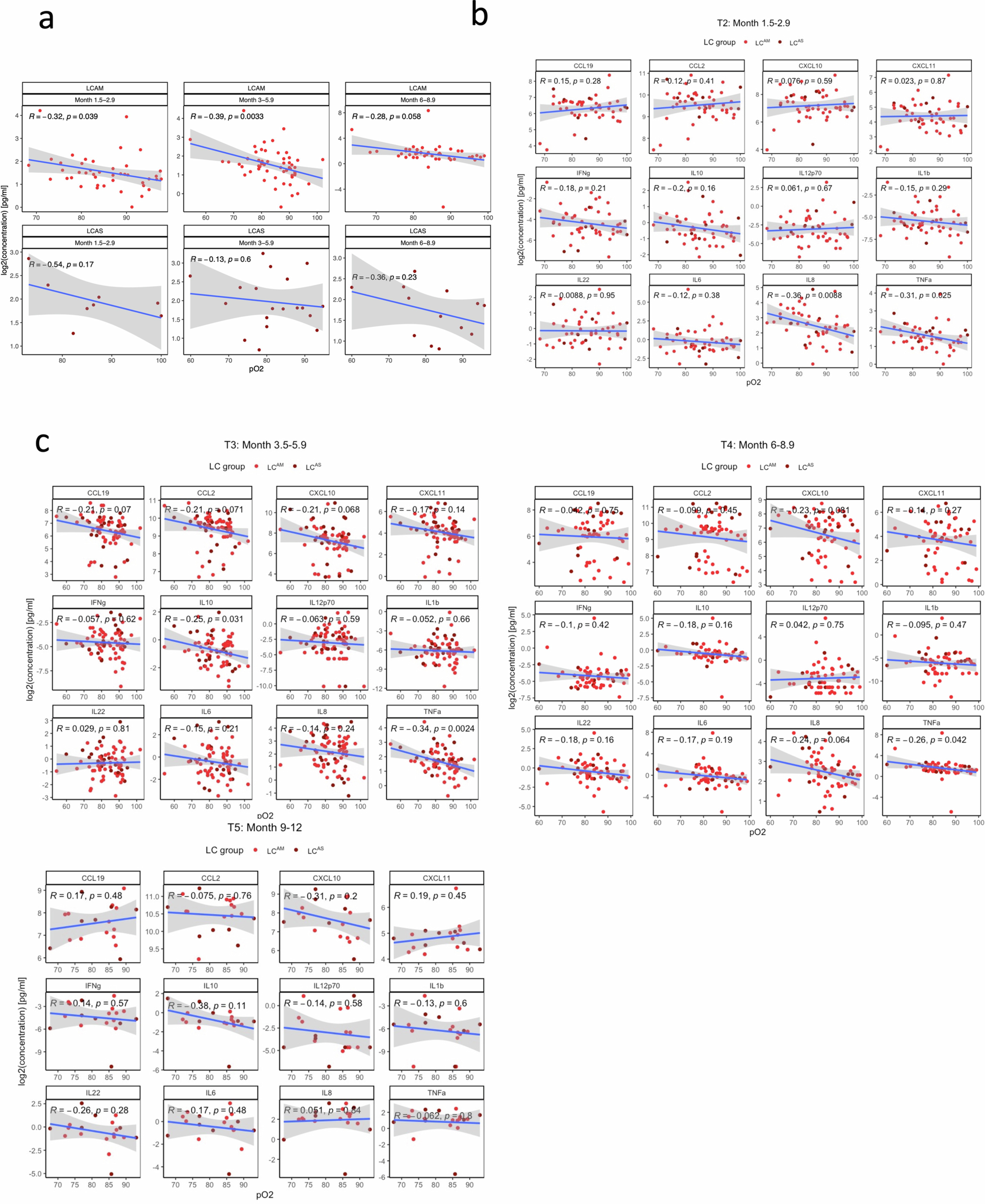

a, TNF correlation with partial pressure O2 calculated separately for LCAM and LCAS (cohort 2) at month 1.5-2.9 (LCAM n = 43, LCAS n = 8), month 3-5.9 (LCAM n = 56, LCAS n = 19) and month 6-8.9 (LCAM n = 47, LCAS n = 13) b and c Correlation of all measured cytokines as for each time point against pO2. LC: month 1.5-2.9 (n = 51), month 3-5.9 (n = 75) month 6-8.9 (n = 60) month 9-12 (n = 19). Spearman correlation P values for Spearman correlation were computed using the exact/permutation-based test. The gray shaded area indicates the 95% confidence interval.
