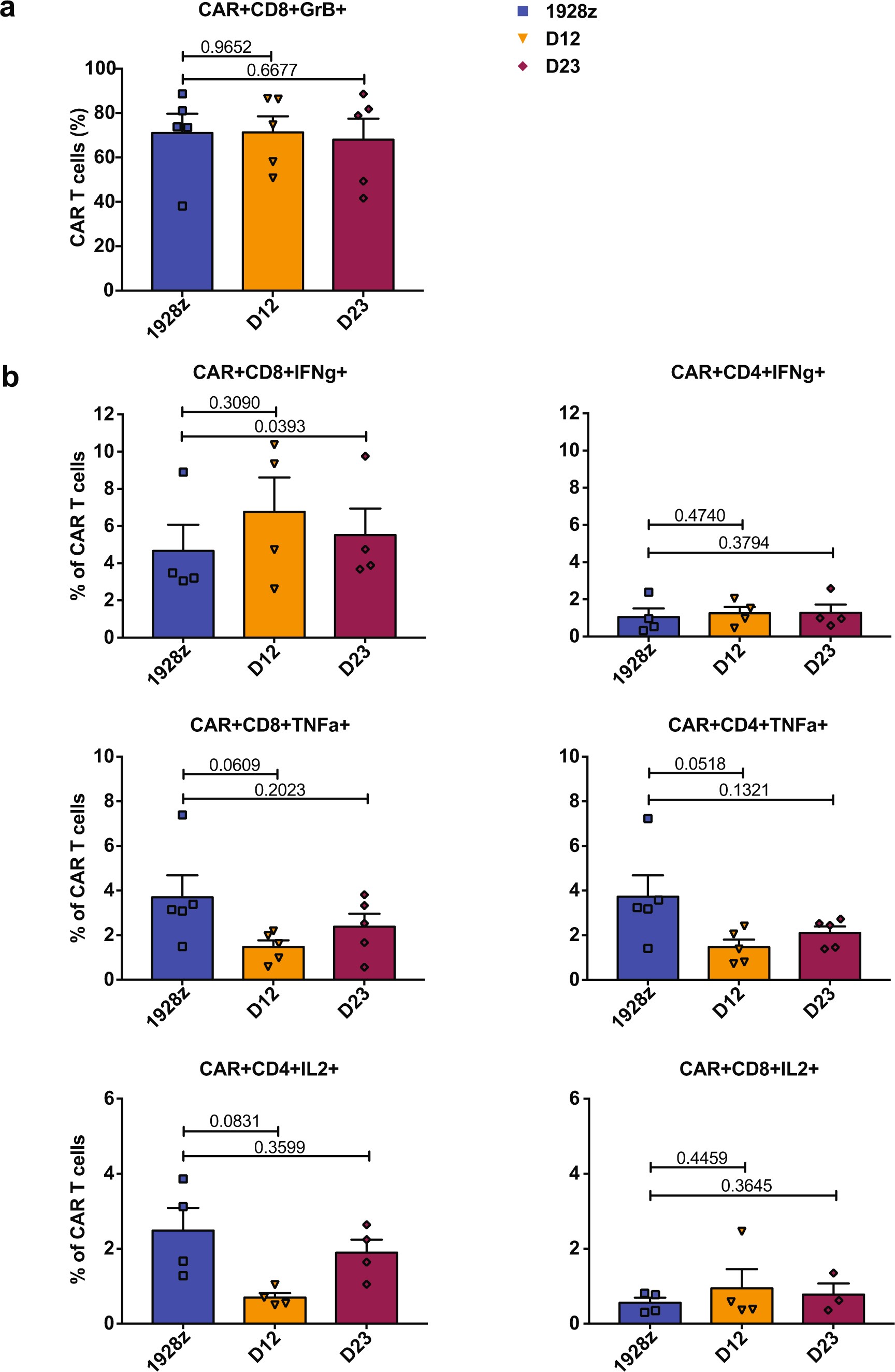

Extended Data Fig. 4: Influence of ITAM location within 1928ζ CARs on effector function in vitro.
From: Calibration of CAR activation potential directs alternative T cell fates and therapeutic potency
a, Granzyme B (GrB) expression on CD8+ CAR T cells (n = 5 independent experiments). b, Cytokine secretion of CD4+ and CD8+ CAR T cells upon second stimulation with CD19-expressing target cells. Unstimulated wild-type 1928ζ cells were used as control. All data are means ± s.e.m. (IFNγ and IL2, n = 4; TNFα, n = 5 independent experiments). Each individual symbol indicates one sample. Significant differences compared to 1928ζ were determined by two-tailed paired Student’s t-test.
