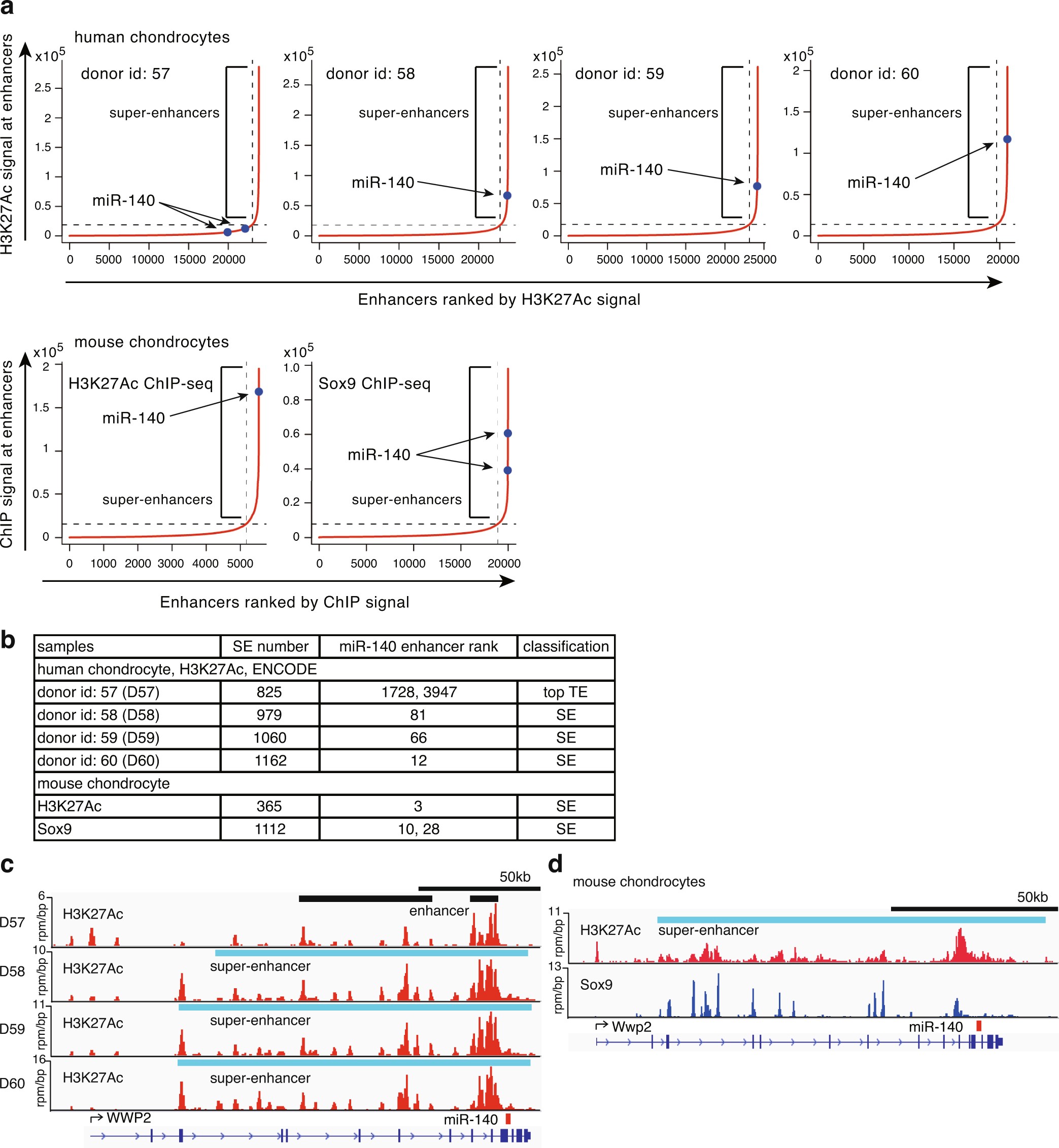

Extended Data Fig. 2: The miR-140 gene-associated super-enhancers in human and mouse chondrocytes.
From: Gain-of-function mutation of microRNA-140 in human skeletal dysplasia
a, Distribution of ChIP–seq signals at enhancers in human and mouse chondrocytes. The miR-140 gene-associated enhancers are highlighted. The miR-140 locus is associated with high ChIP–seq signals of H3K27Ac and Sox9 in mouse chondrocytes. b, Summary of association between miR-140 and super-enhancers (SEs). TE, typical enhancer. c, H3K27Ac ChIP–seq profiles at the miR-140 gene locus in human chondrocytes. The H3K27Ac profile of the donor id: 60 is shown in Fig. 1s. d, H3K27Ac and Sox9 ChIP–seq profiles of the miR-140 gene locus in mouse chondrocytes.
