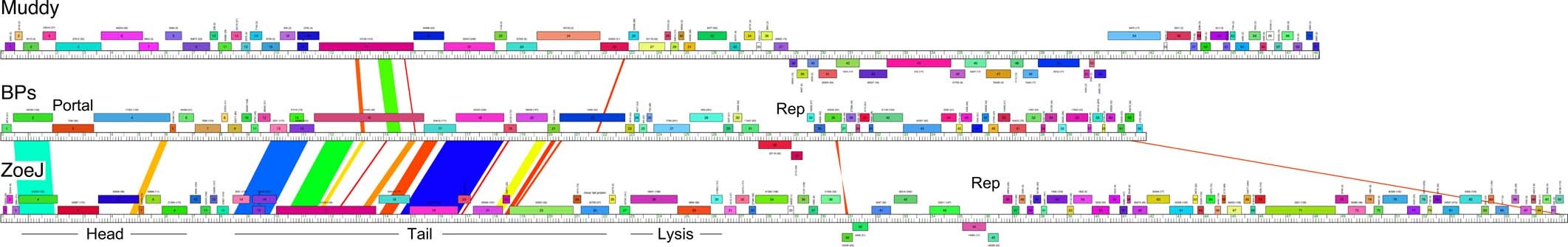

Extended Data Fig. 2: Genome maps of phages Muddy, BPs, and ZoeJ.

Genes are shown as colored boxes above or below a genome track, reflecting rightwards and leftwards transcription, respectively. Pairwise nucleotide sequence similarity is indicated by spectrum-colored shading between genomes, with violet representing closest similarity.
