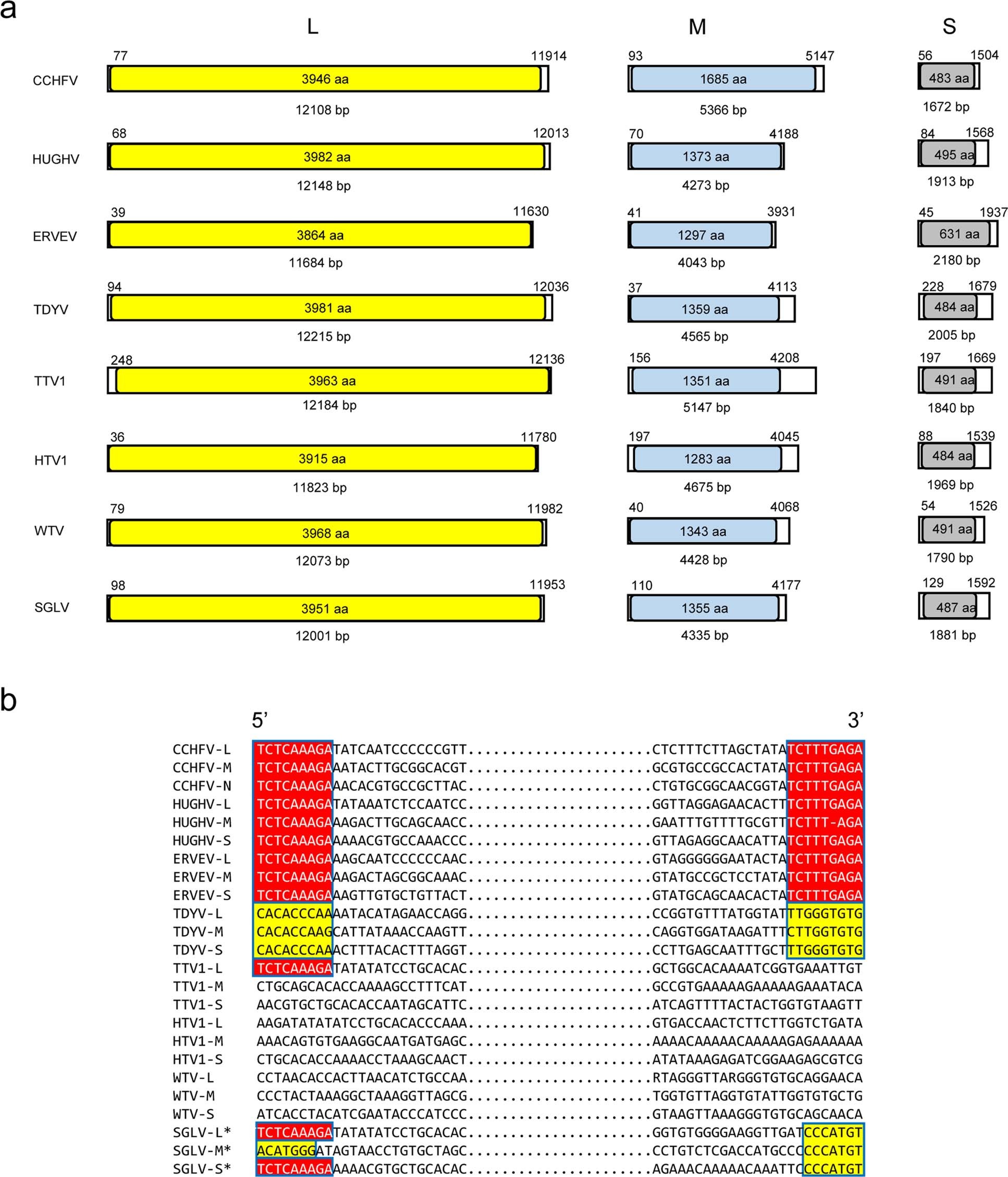

Extended Data Fig. 2: Genomic characteristics of SGLV and other orthonairoviruses.
From: Identification of a new orthonairovirus associated with human febrile illness in China
a, Genomic illustration of SGLV and other orthonairoviruses. The predicted ORFs are annotated with different colors: large protein encoded by L segment is shaded with yellow, glycoprotein precursors (GPC) encoded by M segment is indicated with light blue, and nucleoproteins encoded by S segment is presented with gray. b, The terminal sequences of SGLV and other orthonairoviruses. The typical terminal sequences of orthonairoviruses are marked by red boxes and the putative terminal sequences are marked with yellow boxes. The sequences that appeared in the terminals of different segments or have a reverse-complementary sequence at the other terminal in the same segment are regarded as putative terminal sequences. L, Large segment; M, Medium segment; S, Small segment; CCHFV, Crimean-Congo hemorrhagic fever virus (L, HM452307; M, HM452306; S, HM452305); HUGHV, Hughes virus (L, KP792738; M, KP792739; S, KP792740); ERVEV, Erve virus (L, JF911697; M, JF911698; S, JF911699); TDYV, Tamdy virus (L, MK757580; M, MK757581; S, MK757582); TTV1, Tǎchéng tick virus 1 (L, MK554672; M, MK554676; S, MK554680); HTV1, Huángpǐ tick virus 1 (L, NC_031135; M, NC_031136; S, NC_031137); WTV, Wēnzhōu tick virus (L, KM817685; M, KM817718; S, KM817745); SGLV, Sōnglǐng virus (L, MT328776; M, MT328775; S, MT328777).
