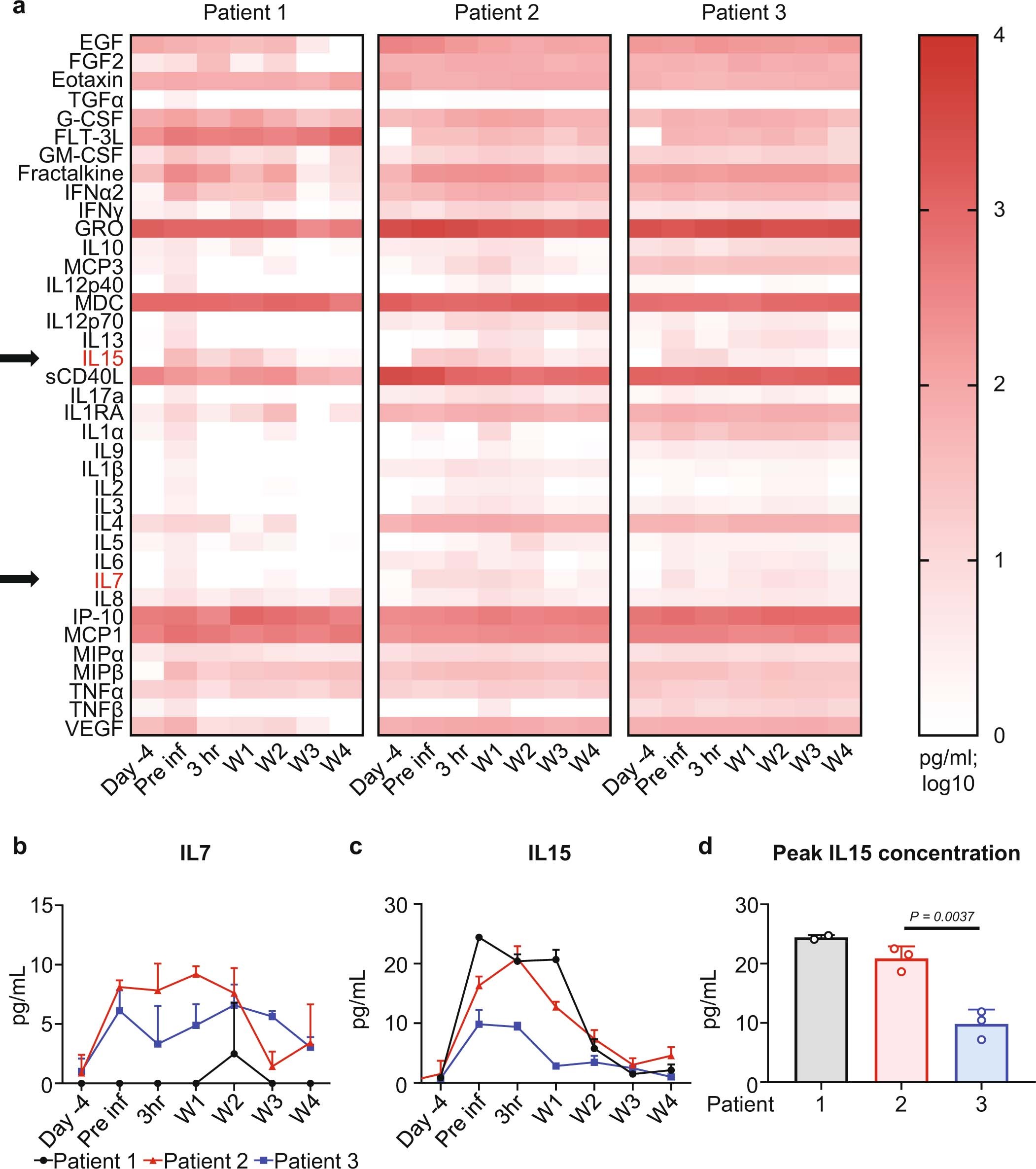

Extended Data Fig. 10: Peripheral blood cytokine levels.
From: Anti-GD2 CAR-NKT cells in patients with relapsed or refractory neuroblastoma: an interim analysis
Peripheral blood was collected at indicated timepoints from the three patients and cytokine levels were quantified in triplicate by Luminex® assay. a, Cytokine expression is shown as log10 of pg/mL. b, IL7 and c) IL15 levels for the three patients at indicated timepoints. d, Peak IL15 concentration. Data shown as mean ± SD from three technical replicates (b-d); P values by unpaired two-tailed t-test (d).
