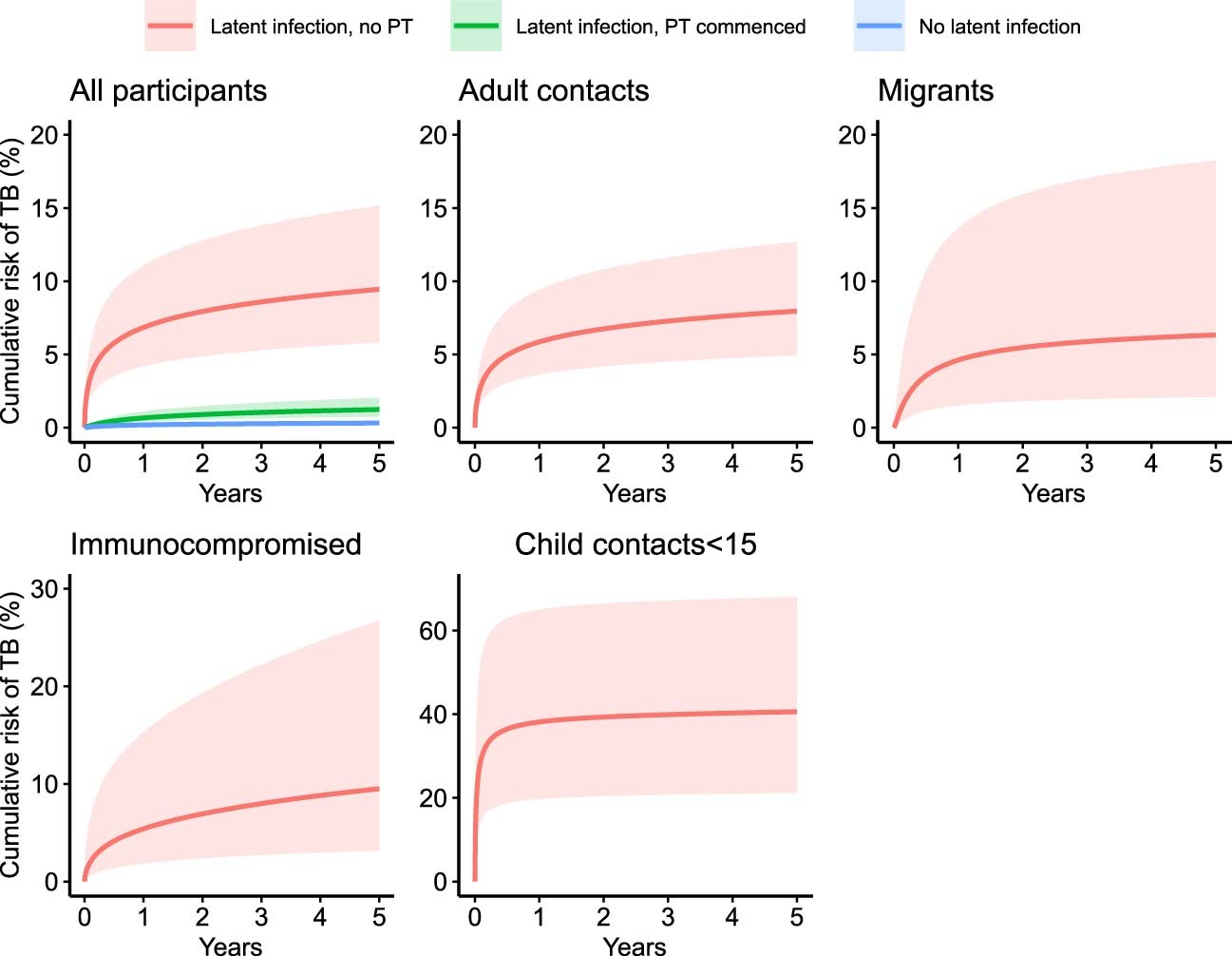

Extended Data Fig. 3: Cumulative risk of prevalent and incident tuberculosis during follow-up.

From: Discovery and validation of a personalized risk predictor for incident tuberculosis in low transmission settings

Extended Data Fig. 3

Risk is stratified by binary latent TB test result, provision of preventative treatment, and indication for screening among participants with untreated latent infection (total n = 80,468 participants). Cumulative risk is estimated using flexible parametric survival models with random effects for the intercept by source study, separately fitted to each risk group. Prevalent TB cases (diagnosed within 42 days of recruitment) are included in this sensitivity analysis. Each plot is presented as point estimates (solid line) and 95% confidence intervals (shaded area). PT = preventative treatment.
