Extended Data Fig. 7: Extended CyTOF data analysis of liver immune cells after radiotherapy and immunotherapy.
From: Liver metastasis restrains immunotherapy efficacy via macrophage-mediated T cell elimination

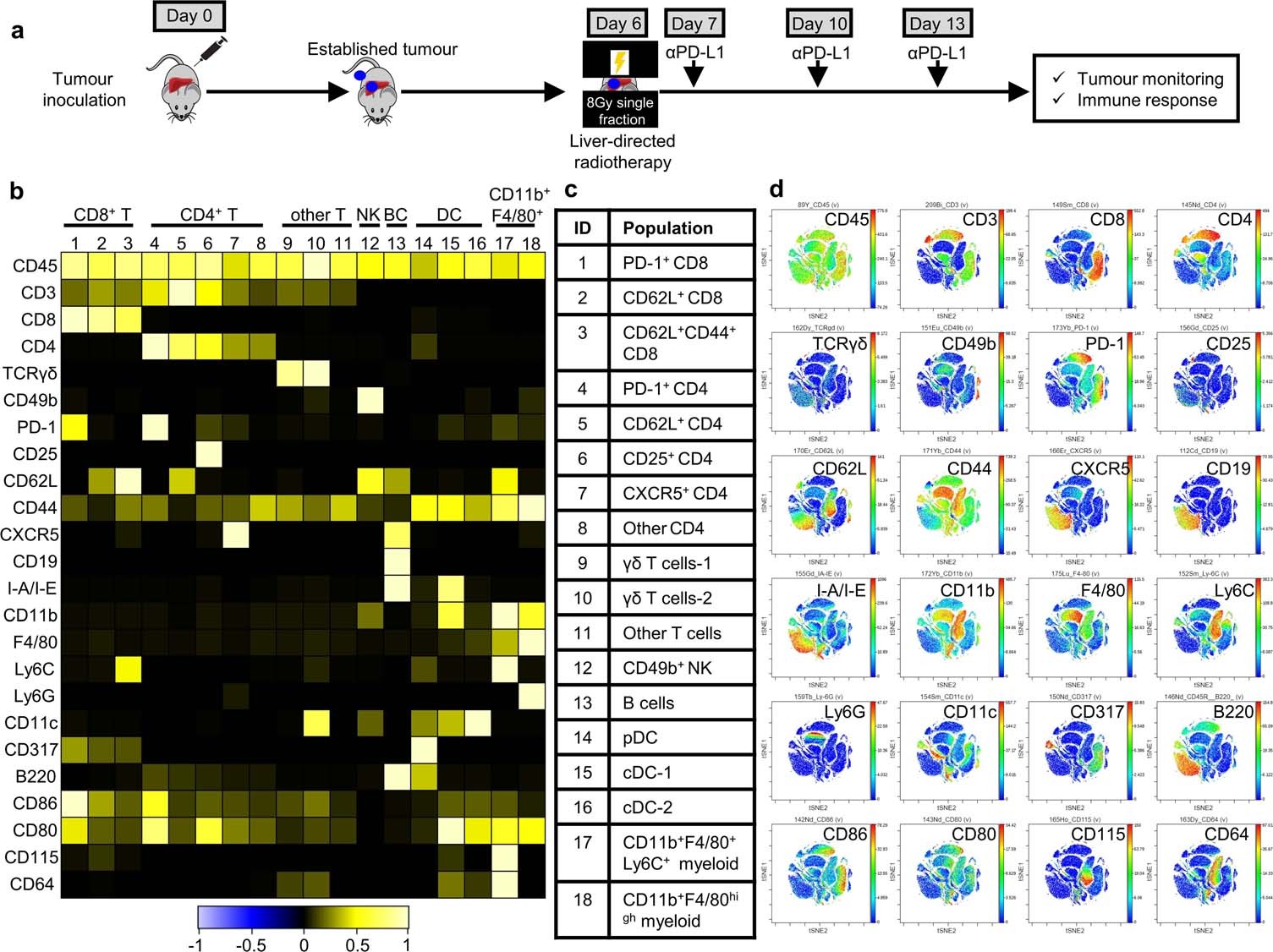

a Schematic describing combination treatment with liver directed radiotherapy followed by anti-PD-L1. b-d Immune clusters identified by mass cytometry in Fig. 6a. b, Heatmap showing frequency of antibody labeling (rows) in the 18 immune populations (columns) derived from a combined analysis of all samples. c, Immune cell subset identified by mass cytometry. d, viSNE representation of key marker expression across subpopulations, displayed on aggregated samples.
