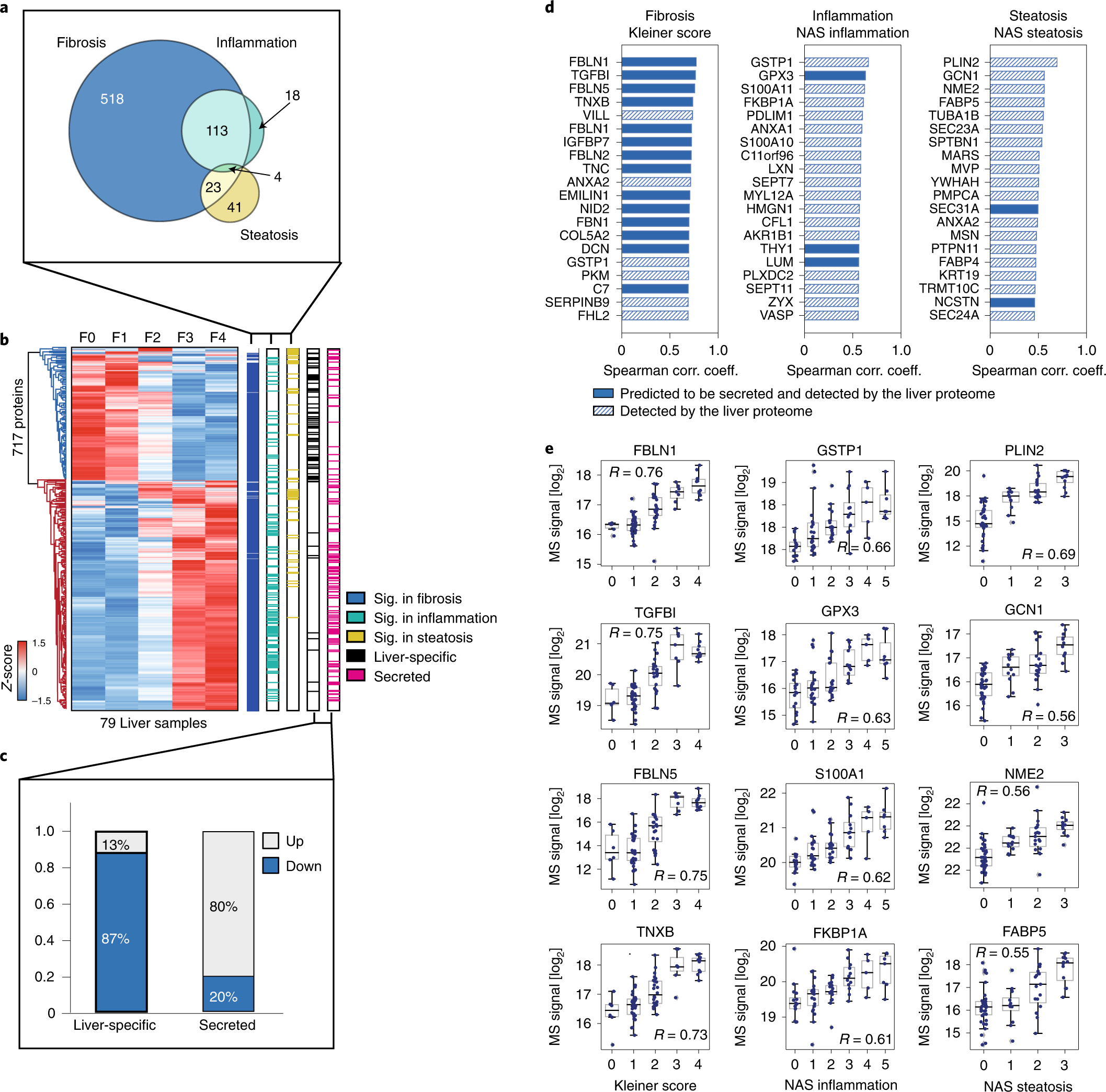

Fig. 2: Liver proteome remodeling due to hepatic lesions.
From: Noninvasive proteomic biomarkers for alcohol-related liver disease
