Extended Data Fig. 2: Results of vaccine model - sensitivity with infection-blocking vaccine.

From: Modeling the impact of vaccine campaigns on the epidemic transmission dynamics of chikungunya virus outbreaks

Extended Data Fig. 2

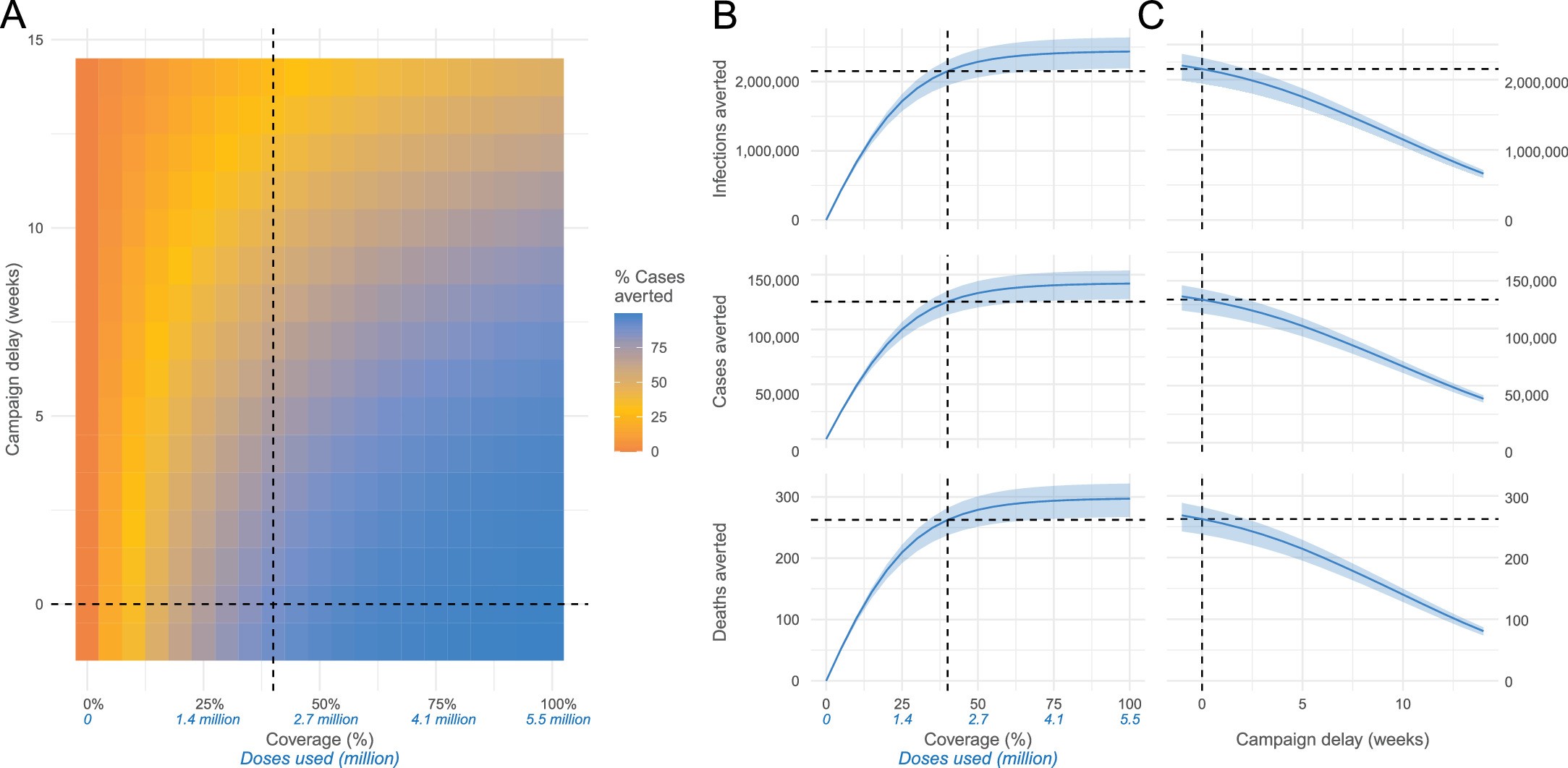

(a) Proportion of cases averted for different values of coverage and delay. The dashed black line shows the base case scenario of 40% coverage with no delay between outbreak start and campaign vaccination. (b) Infections (top row), cases (middle row) and deaths (bottom row) averted when varying coverage and delay are fixed at 0 weeks. (c) Infections (top row), cases (middle row) and deaths (bottom row) averted when varying the delay between the detection of the outbreak and the start of the vaccine campaign, fixing coverage at 40%.
