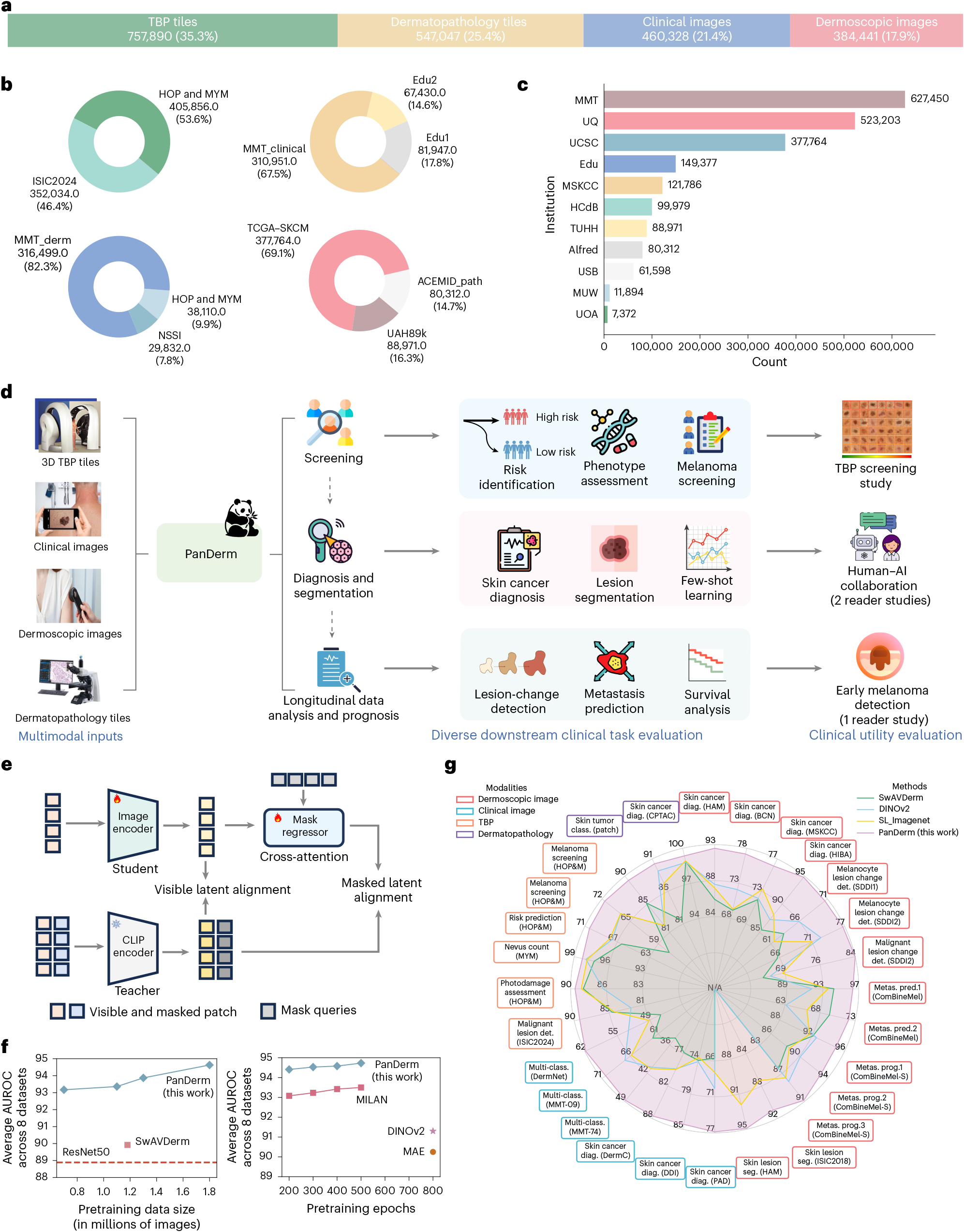

Fig. 1: Overview of this study.
From: A multimodal vision foundation model for clinical dermatology
a–c, Pretraining dataset: 2.1 million dermatological images from 11 clinical sources across 4 modalities, shown by modality (a), source (b) and institution (c). d, PanDerm interprets multiple imaging modalities for various dermatology tasks, evaluated in real-world melanoma screening and three reader studies. Image types include dermatopathology (microscopic biopsy specimens), clinical (wide-field lesion and surrounding skin), dermoscopic (close-up dermoscope images) and TBP tiles (lesion crops). e, Architecture: ViT-large encoder, regressor and CLIP-based teacher model, with representation reconstruction and CLIP latent alignment objectives. f, Performance versus pretraining data size and epochs (average AUROC on 8 benchmarks) compared with alternative strategies. g, PanDerm outperforms existing models on 28 evaluation datasets across 4 modalities. All icons in d are from Flaticon.com, except for the risk stratification, lesion change detection and survival analysis icons, which are from Microsoft PowerPoint.
