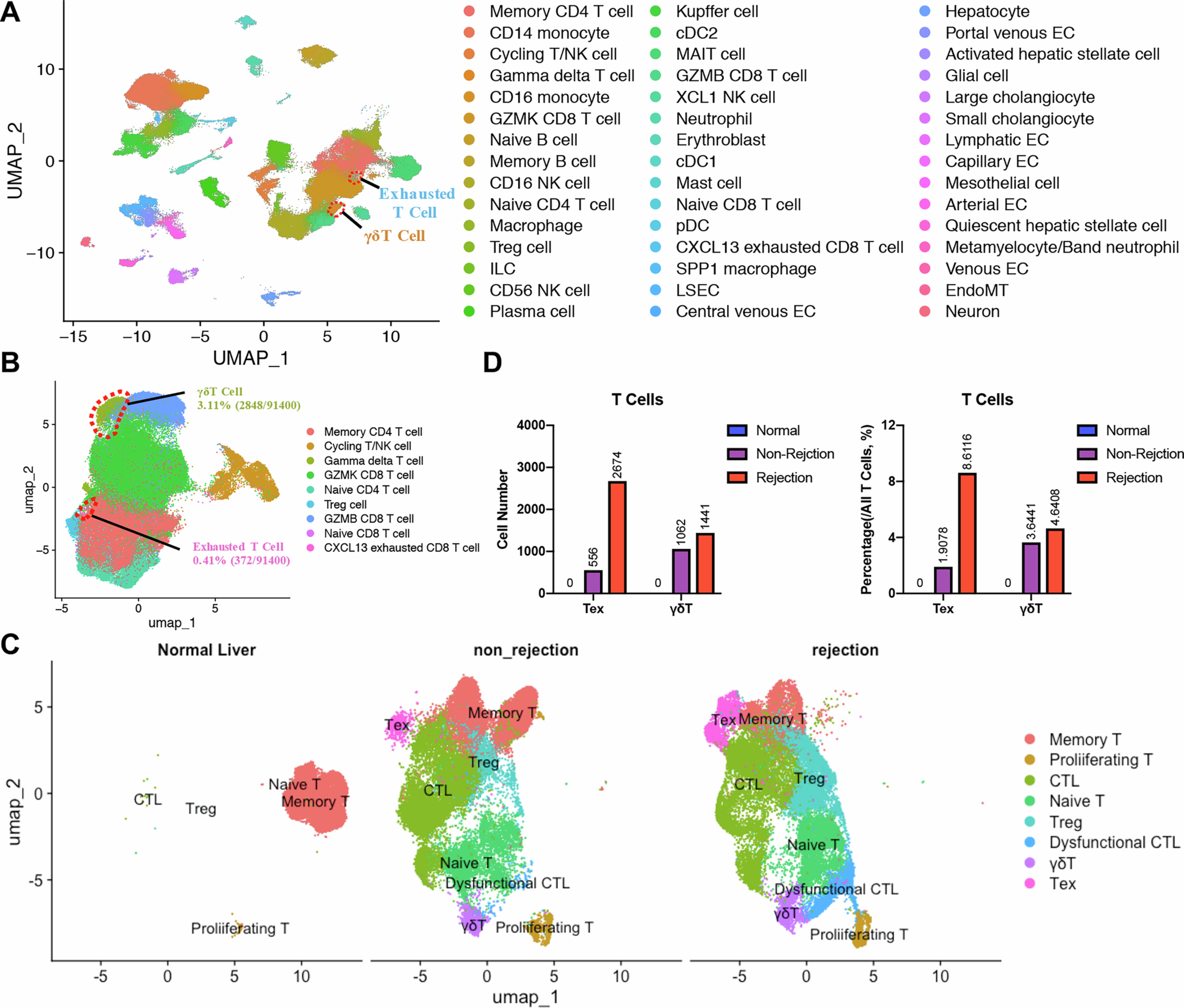

Extended Data Fig. 8: γδT and exhausted T cells in normal liver and allotransplant liver.
From: Immune cell landscape in a human decedent receiving a pig liver xenograft
a. UMAP plots showed the major cell components of cells in normal liver in DISCO database. b. UMAP plots showed the subtypes of T cells in normal liver in DISCO database. c. UMAP Plots show the distribution of T cell subtypes in normal liver, rejected liver and non-rejected liver group. d. Bar charts for absolute cell counts and percentage changes of γδT and exhausted T cells calculated by scRNA-Seq data (the cell number of different groups were shown in the figure).
